产品描述

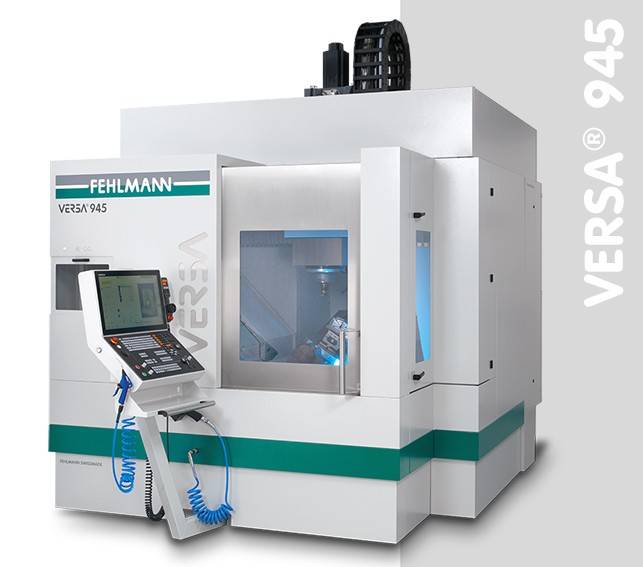

VERSA® 945 and VERSA® 943
Highestlevelofprecisionanddynamics
VERSA®945和VERSA®943
最高级别的精度和动态性
Areas of application:
- Millingofcomplextitaniumandaluminumcomponents,e.g.intheaerospaceindustry
- Millingofhardenedtoolsteelintoolandmouldbuilding
- Machiningofstainlesssteelinthemedicalindustry
- Challenging workpieces in mechanical engineering and automotive constructionindustries
删除
The VERSA 945 (5-axis) and VERSA 943 (3-axis) high-per- formance machining centers are designed for maximum precision and dynamics through and through
VERSA 945（5轴）和VERSA 943（3轴）高性能加工中心基于可实现最大的精度和动态性能设计制造
Complex components can be machined with high precision on 5 axes up to 650 mm.
The directly-driven tilting ro- tary table is integrated longitudinally into the machine concept and offers a large swiveling range of –135° to +120°.
复杂零件可在5轴上以高精度加工，最大回转直径可达650 mm。
机床集成了直驱大扭矩电机驱动的摆动和转动轴，并提供–135°至+120°的大旋转范围。
The 3-axis version is ideally suited for highly dynamic and high-precision machining of workpieces with a load of up to 1000 kg.
3轴版本非常适合负载高达1000 kg的高动态和高精度加工。
A wide range of functions and features enables flexible and economical precision parts production and surfaces of the highest precision, accuracy and quality.
广泛的功能和特点保证了灵活、经济的精密零件生产，以及完美的表面质量、高精度和高质量。
Basic Version-chain magazine with 48 tools
带48把刀具的标配链式刀库
Option—80tools
选配—80把刀具链式刀库
Option—rackmagazine,numberof toolsdependsontoolholder,scalable from 128 to384
选配-架式刀库，刀具数量取决于刀柄类型，可从128把扩展到384把
Facts 技术参数
Travel 行程
Xtrave X行程 650mm
Ytravely行程 800 (1040)mm
ZtravelZ行程 500mm
SwivelaxisA摆动轴A 255°(+120°/–135°)
DividingaxisC回转轴C0°upto360° 0° -360°
Table/work area 工作台/加工区
Clamping surface装夹面
(length×width) 长×宽 460×460mm
table plate square 方型工作台
Max. permissible table load工作台最大负载
Distance between table andspindle nose工作台至主轴端面间距
Working spindle工作主轴
Spindle power主轴功率
atS6 25.3/25.3/25.5
(40%ED) 13.7kW
Speedrange转速 14000/18000/24000/30000rpm
Tool changer换刀装置
Magazine pockets standard标配刀库容量 48
Optional选配80/128–384
Feed rates 进给速度
X / Y / Z
Weight重量
Machine-tool (excl.cooling medium) approx. 12000 kg /48 tools 机床（不包括冷却单元）约12000 kg/48把刀具
Controls数控系统
HeidenhainTNC640with24"touch screen(ExtendedWorkspace) 海德汉 TNC 640，带24英寸触摸屏（扩展工作空间）
