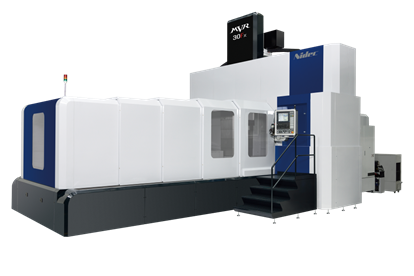

Gantry type five-sided processing machine


Price:
price negotiable
Brand Name:
NidecCountry Region:
JapanModel No:
MVR・Fx


Nidec

Country: Japan
Main Products: Gantry, boring and milling machine, all kinds of gear machine
View more
Price:
price negotiable
Brand Name:
NidecCountry Region:
JapanModel No:
MVR・Fx


Nidec

Japan
Main Products:
Gantry, boring and milling machine, all kinds of gear machine

产品参数
参数名称 | 数值范围 |
立柱门宽间距(mm) | 2,550 |
工件安装面到主轴端面距离(mm) | 标准 1,650 选项 2,000 |
ATC刀具收纳数量(把) | 40(选项 60、80、100) |
产品描述
以零台阶为目标的高品质加工面,不用手动抛光,可以改善生产效率。
在模具中精确地再现设计形状,通过减少产品的试作次数,有助于缩短交期,减少工时。
主轴内部冷却结构:不仅对主轴封套部进行冷却,还对中心部进行冷却,从而防止由主轴旋转时的散热引起的热位移,即使不进行热位移补偿,也会抑制Z轴方向的主轴伸长。另外还利用特殊喷油润滑冷却轴承,缩小内外轮的温度差,来提高预压,制造刚性较高的主轴。
附件头:主轴是附件头方式,这样可以提高维护性。附件头利用大直径;齿盘式耦合器与4根拉钉将配件与滑枕一体化,提高钢性。
采用HSK主轴:标准采用即使是高速旋转时锥面的密接也良好且适合高精度加工的HSK主轴*。
滚珠丝杠冷却:将发热源电机、支撑轴承、滚珠丝杠螺母冷却抑制热变形。
零间隙驱动系统:将伺服电机直接连结到滚珠丝杠的两端。防止因反冲 、滚珠丝杠扭转造成的运动精度变差,抑制加工路径摇晃。
