Technical parameter standards:

Working size: Max.Dia 400mm *4

Pressure: Max.100kg/1ea *1

Turntable size: 1000mm

Turntable speed: Max60rpm, motor: 5.5kw*1/30

Ocilation system: Max.30rp (stroke30-80mm), motor: 2.2kw*1/60

Rolling line: 1050mmm

Pressure control: regulator control

Electrical control: PLC control (HME system)

Function introduction:

excellent processability

- Outputs can be optimally produced

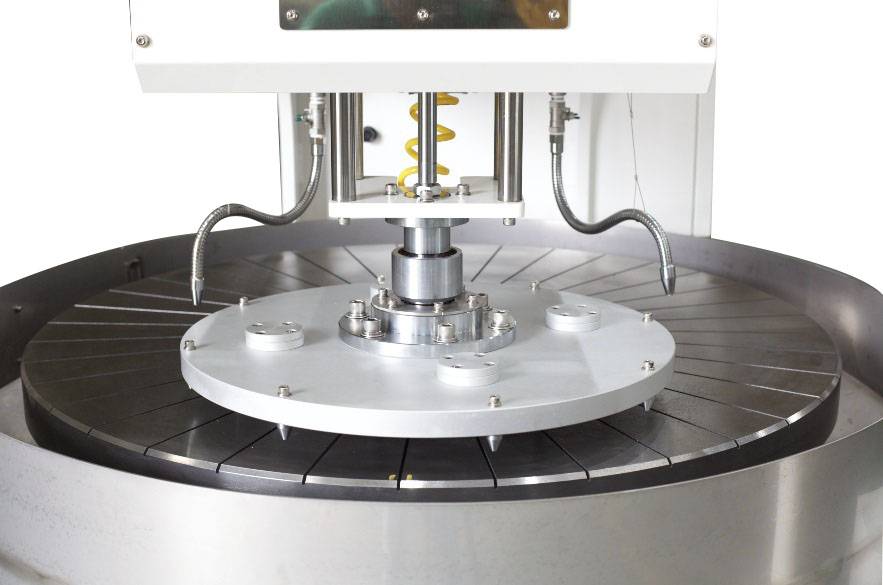

Ocilation system

- Stroke 30-80mm

turntablecasting production

- High hardness quality

- Reusable after polishing

Automatic pulp supply system

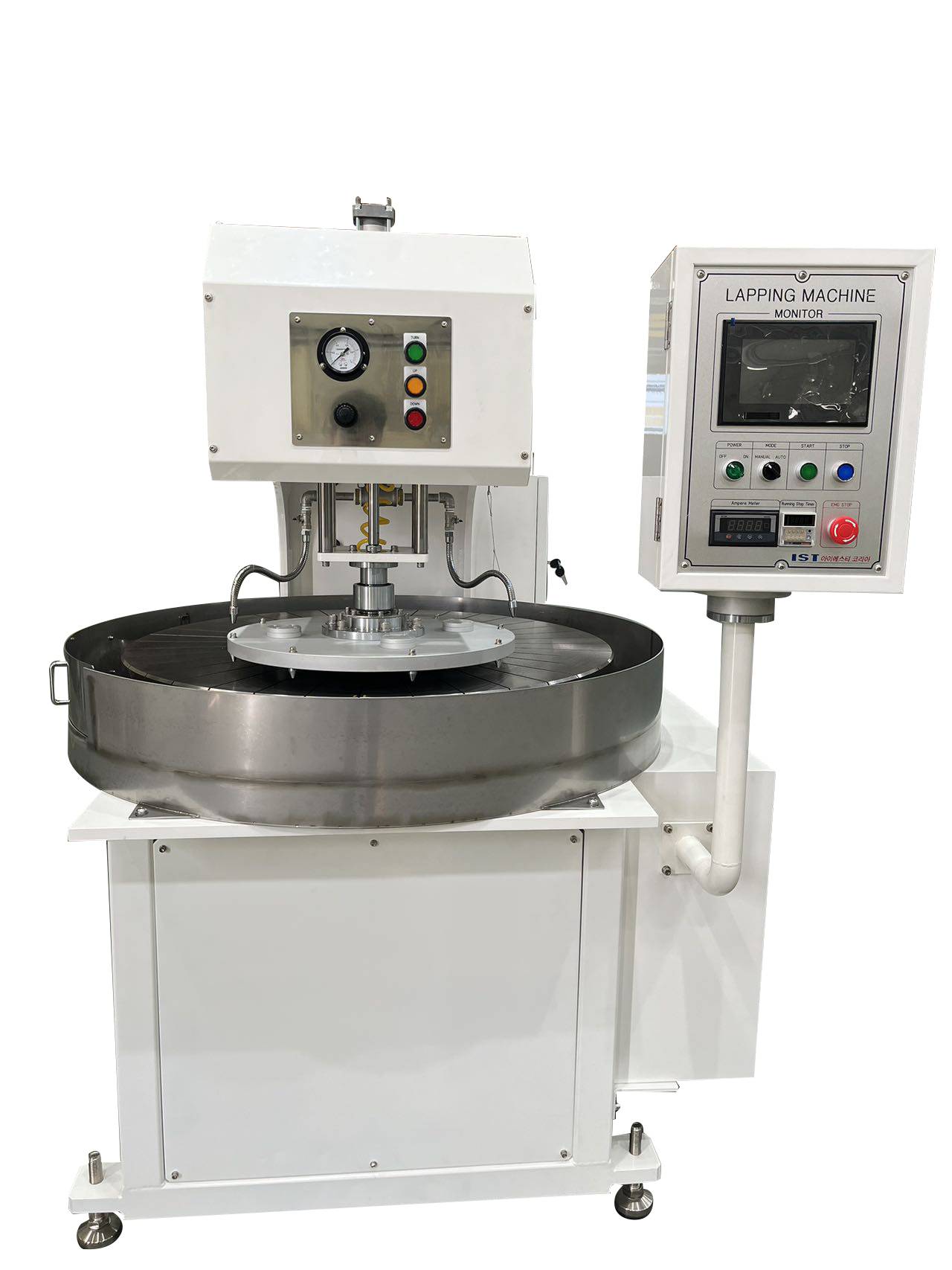

Equipment applications:

This series of equipment is mainly used for high-precision single-sided grinding and polishing of hard and brittle materials such as semiconductors, sapphire, silicon carbide, gallium arsenide, and optical glass.

Equipment characteristics:

The theme of the equipment body is cast satin for good stability.

Precision components are selected from well-known imported brands to ensure efficient and stable grinding and polishing quality and the service life of the equipment.

Human-friendly operation interface, convenient parameter setting and process mode conversion.

Multi-specification and multi-power models can be customized according to customer needs.
