SUMEC TOUCH WORLD

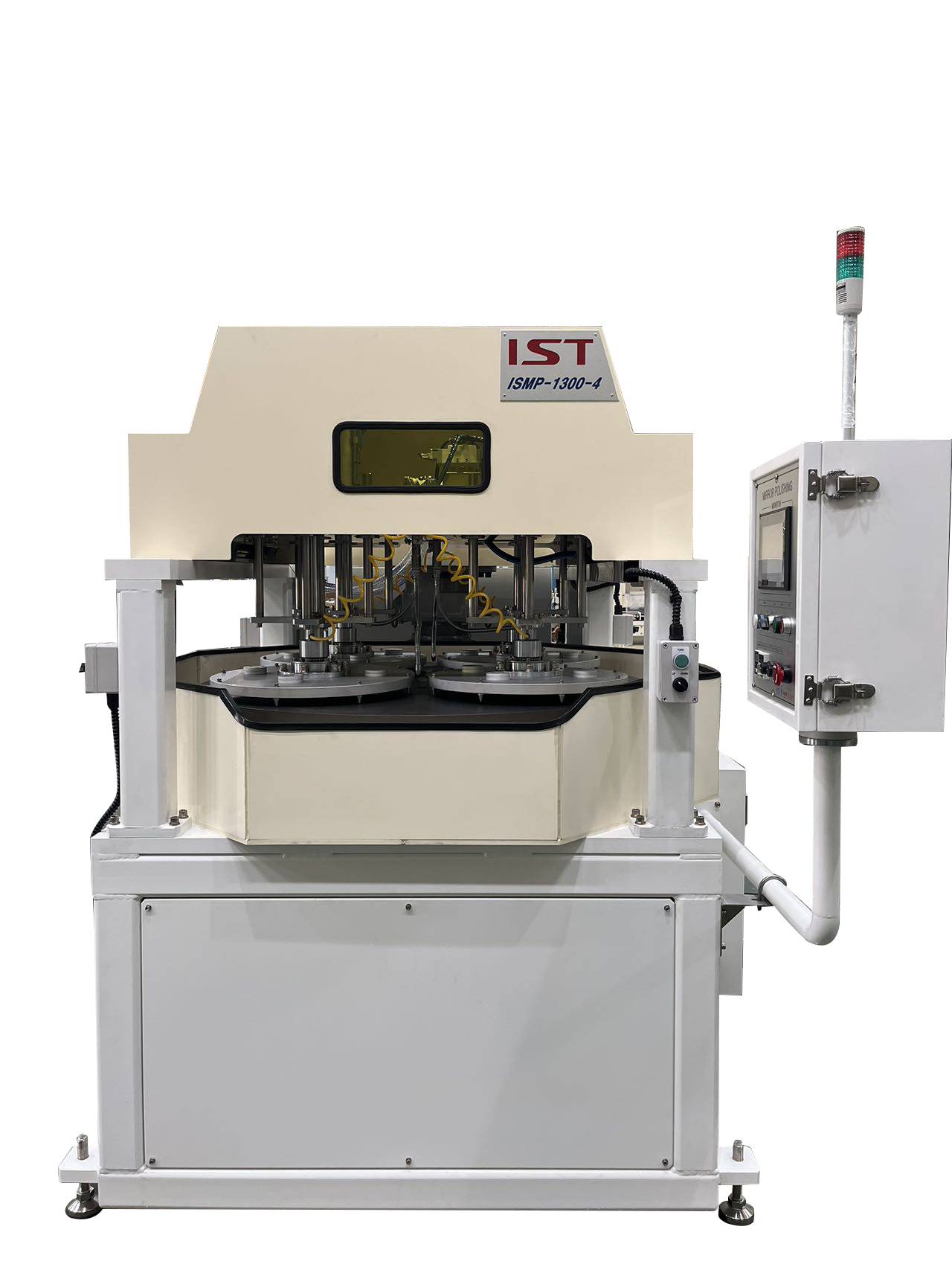

Technical parameter standards:

Working size: Max.Dia 400mm *4

Pressure: Max.400kg/1ea *4

Turntable size: 1300mm

Turntable speed: Max60rpm, motor: 22kw*1/30

Ocilation system: Max.30rp (stroke30-80mm), motor: 5.5kw*1/60

Rolling line: 1100mmm

Pressure control: Multi-level control (20 steps)

Electrical control: PLC control (HME system)

Function introduction:

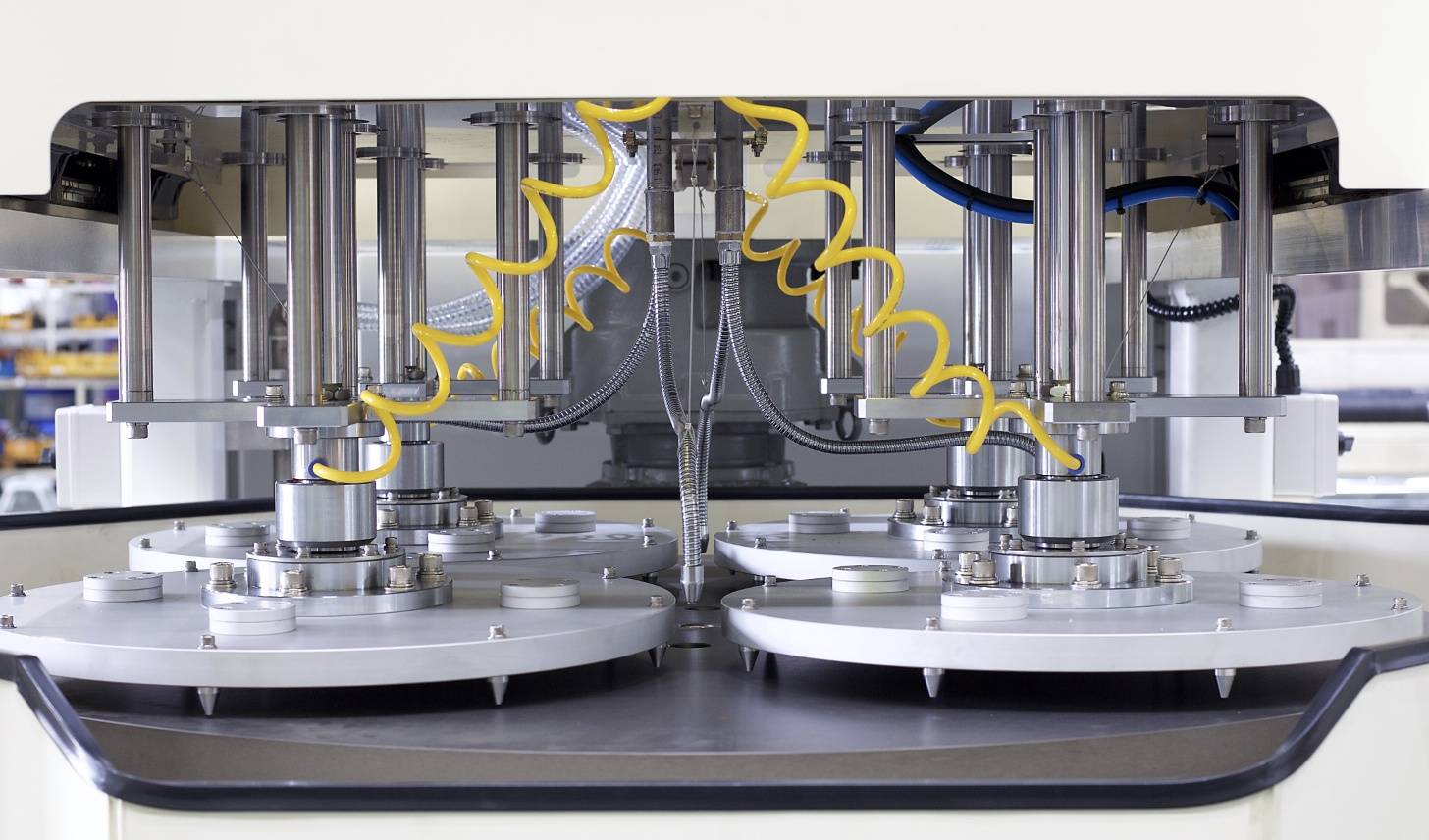

Four-head synchronous operation

- Increase productivity

Multi-level pressure control

-20 level adjustable

Ocilation system

- Stroke 30-80mm

Turntable cooling system

- Adjustable cooling temperature

Automatic pulp supply system

Equipment applications:

This series of equipment is mainly used for high-precision double-sided grinding and polishing of hard and brittle materials such as semiconductors, sapphire, optical glass, ceramics, metals, and quartz

Equipment characteristics:

The theme of the equipment body is cast satin for good stability

Precision components are selected from well-known imported brands to ensure efficient and stable grinding and polishing quality and equipment life.

Human-friendly operation interface, convenient parameter setting and process mode conversion

Multi-specification and multi-power models can be customized according to customer needs

Aste (Shanghai) Machinery Technology Co., Ltd. is a branch established in China by IST of South Korea. The company adheres to the principle of putting reputation first and quality first to bring the best performance vacuum hot presses, laminating machine systems and other equipment to major customers. The company's equipment is sold all over the world. Headquartered in Gameo City, South Gyeongsang-do, South Korea, it has equipment manufacturing and assembly factories at home and abroad. The company always adheres to the principle of 'mutual benefit' and welcomes domestic and foreign corporate customers to negotiate and cooperate with each other to achieve common development with a sincere attitude.

The company's business scope: vacuum laminator for PCB electronic circuit industry, copper clad laminate hot press, semiconductor wafer cutting machine, hot press for new materials, hot press for new energy battery panels and other special materials, aerospace, vacuum hot press for 5G communication, laminator, high-frequency board, high temperature 400° hot press, electric heating, oil heating, oil-electric hybrid. Surface grinding and polishing equipment, optical communication equipment, automatic loading and unloading and laminating equipment, international production technology; high-precision equipment and automated reflow lines and other equipment.
