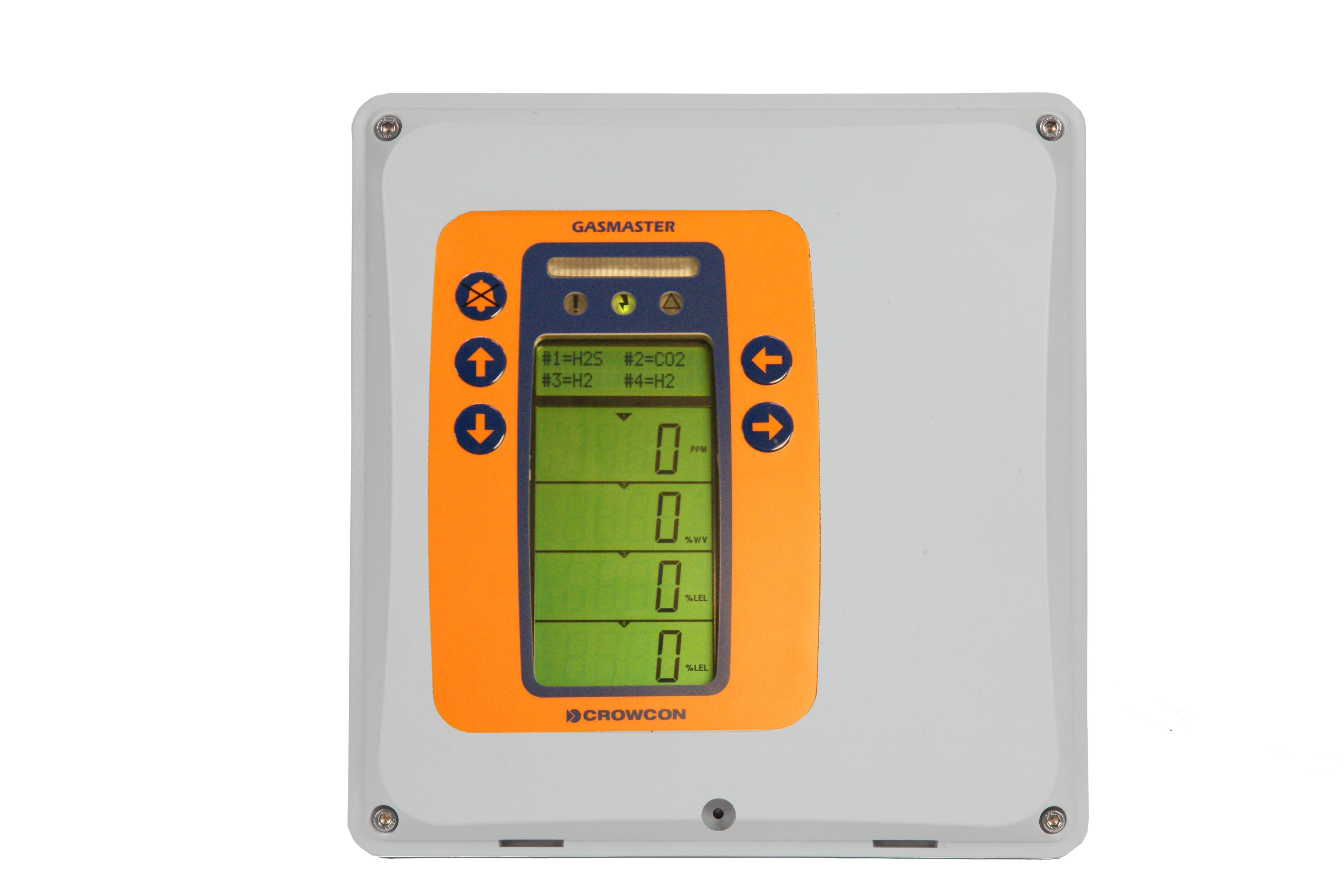

Gas Fire Monitoring Controller -Gasmaster



Price:
price negotiable
Brand Name:
CrowconCountry Region:
BritainModel No:
Gasmaster


Crowcon

Country: Britain
Main Products: Gas detection equipment and systems
View more
Price:
price negotiable
Brand Name:
CrowconCountry Region:
BritainModel No:
Gasmaster


Crowcon

Britain
Main Products:
Gas detection equipment and systems

Product information
Crowcon Gasmaster是一款结构紧凑但功能强大的控制系统,操作简单且具备一系列的输入输出功能。Gasmaster功能强大、性能卓越,能够满足各类工业应用。它监测信息全面,显示一目了然,更改设置可完全通过前面板按键实现。Gasmaster能够单独运行,也可以配置继电器或通讯接口输出连接报警设备和控制系统。
产品特点:
- 同时清晰显示所有气体浓度,能够显示详细的报警信息、监测地点以及系统状态
- 菜单界面显示直观,操作简便,从日常操作到校准的所有功能都能通过前面板进行操作
- “事件日志”功能,系统报警和故障记录随时查看
- 提供模拟信号、继电器、Modbus输出,可满足现场复杂的监测和控制
- Gasmaster最多可监测64个探测器
- Gasmaster PC 软件能够迅速重新配置系统并上传事件记录
- 每个通道有2个报警等级,可以按照现场要求进行配置
- 远程禁止和远程复位功能,使人员在控制室就能对任何一点进行操控
- 只需采购您所需输入模块数量的控制器,可在后期应客户需要进行扩展
参数名称 Parameter Name | 数值范围 Value Range |
尺寸 | 288 x 278 x 110mm (11.3 x 10.9 x 4.3 ins) |
重量 | 4.5kg (10lbs) |
外壳材质 | 底壳:铸铝 上盖:防火阻燃 ABS |
防护等级 | IP65 |
供电方式 | 100-240Vac 50-60Hz or 20-30Vdc, 60W 额定 |
备电 | 内置 1.2Ah 电池 |
工作温度 | -10℃~+ 50℃ (14°F to 122°F) |
湿度 | 0~95% RH 非冷凝 |
输入 | 气体检测仪 1~8 路 2 线或 3 线 4~20mA(有源或无源) 远程禁止 通过常开触点 远程复位 通过常开触点 |
输出 | 两级公共报警继电器,高警,低警 (SPDT, 250VAC, 5A); 一个公共故障继电器 (SPDT, 250VAC, 5A); 每通道一个信号继电器默认关联一级报警 (SPDT, 30V, 1A) A/V 报警驱动 12Vdc 或 24Vdc, 最大电流 650mA 模拟信号 4-20mA( 可选有源 / 无源 , 环路最大电阻 700Ω) 串行接口 RS-485 Modbus RTU 通过 DCS/SCADA/PLC 系统控制和监测 |
通讯口 | 用于PC设置和事件记录上传 |
事件记录 * | 多达300个报警、故障或系统更改记录 |
面板指示 | 带背光 LCD 显示气体浓度(单位为 ppb,ppm,%vol,%lel) 滚动显示主机状态的字母数字组合信息 报警、故障、电池、警告的 LED 显示 内置 85dB 声音报警(在 10cm 内) |
