Product information
Taiwan Chunding TH type Roots fan is a positive displacement rotary blower, impeller end face, fan front and back end cover. The principle is to use two vane rotors in the cylinder for relative movement to compress and transport gas rotary compressor. The blower is simple in structure and convenient in manufacture. It is suitable for gas conveying and pressurizing in low pressure occasions and can be used as a vacuum pump.
Spring Ding TH type sewage treatment Roots blower composition: Roots fan by, shell, wall panel, impeller, import and export muffler and other 4 parts. Shell: mainly used to support the wall panel, impeller, muffler and fixed role. Wall plate: mainly used to connect the casing and the impeller, and support the rotation of the impeller, and play the end seal effect. Impeller: is the rotating part of the Roots fan, divided into two blades and three blades, but because the three blades than the two blades of the air pulsation is small, small noise, smooth operation and many other advantages, has gradually replaced the two blades of Roots fan. Muffler: Used to reduce the inlet and outlet noise of Roots fan due to air pulsation.
The improvement of Spring Ding TH type sewage treatment Roots blower is mainly related to the structure of the Lu type blower, especially the improvement of its binding strength, so that the position of the impeller relative to the axis in the inner cylinder does not change due to external influence. The air chamber of the blower produced by our company is closely connected with the concave and convex edge of the side cover to improve the operation strength of the blower and prevent the eccentricity caused by the fixed screw and affect the life of the blower.
The impeller of Chunding Company adopts the advanced four-axis machining method to reduce human error, improve the precision of the impeller and improve the efficiency of the blower. No lubricating oil fault between the rotor and the rotor, and between the rotary body and the shell, with appropriate clearance, no contact during operation, no internal lubrication treatment, mechanical part of the contact, when the gear fit mode, and the shell (rotor action chamber) with the side cover of gasoline separation, there is no risk of lubricating oil mixed, so the gas discharged is clean air without oil composition. Even in the case of long-term operation, it can be safely used.
Low noise, low vibration: In terms of noise and vibration control, the company has been researching for many years, this new series of machines is a high-precision rotor structure to achieve the ideal countercurrent compression function, the blower air pulsation can be smoother, the noise and pulsation can be greatly reduced, so for small blowers, there is no need to install an outlet silencer.
Highly standardized components, quality assurance, all spare parts are CNC automatic working machine processing, specifications are consistent, instant damage caused by improper use, can also easily replace the old and new spare parts, save maintenance time and labor costs, spare parts special supply does not worry about maintenance, trained field service personnel, so that the table get the best after-sales service.
The conveying medium of Spring Ding Root blower is the preferred product for clean air, clean gas, sulfur dioxide and other inert gases, special gas industry (gas, natural gas, biogas, carbon dioxide, sulfur dioxide, etc.) and high pressure conditions. In view of the above characteristics, it can be widely adapted to metallurgy, chemical industry, chemical fertilizer, petrochemical, instrument, building materials industry.
Spring Ding TH Roots blower specifications: pressure feeding application pressure: 0 ~ 0.6kgf /cm ² 1 ~ 200HP Product features: low energy loss: Spring Ding Lu blower design can reduce countercurrent pressure on the rotor, relatively can also reduce energy loss. Low noise: The pressure pulse is the main noise source, and the Spring Ding Lu blower can effectively reduce the noise by 5 dB. Extended bearing life: The bearing life has been extended by up to 20% due to reduced vibration transmitted by the impeller. Use: pressure feed and low noise pressure pulse is the main noise source, Chunding Lu type blower can effectively reduce noise up to 5 dB.
The low energy loss design of the TH type sewage treatment Roots blower can reduce the countercurrent pressure on the rotor, and relatively reduce the energy loss. Extended bearing life up to 20% longer bearing life due to reduced vibration transmitted by the impeller
TH type sewage treatment Roots blower role
1 Waste water is treated by Chun Ding Lu blower. The cleaning power of stirring sediment or water treatment.
2 The incinerator promotes the removal of harmful gases such as gas through the combustion effect of the Chundinglu type blower
3 Oxygen replenishment of the farm Through the Chundinglu type blower, the gas of the aquaculture tank can be quickly flowed, so that the oxygen in the water can be replenished.
4 Manure fermentation manure manure fermentation can be accelerated by Chunding Lu type blower
5 Electroplating tank through the spring Dinglu blower in order to electroplating high quality, air is sent to the tank to circulate electrolytes
6 printing machine paper feed through the spring Ding Lu type blower decomposes paper, finishing paper, paper matching operations, thus greatly improving work efficiency
7 Clean the distribution pipe through the spring Dinglu blower to blow off the dust or iron powder in the distribution pipe to achieve the purpose of cleaning.
8 Blow dry conveyor track through the Spring Ding Lu type blower can blow dry small conveyor belt
9. Transport of shells through the Chun Ding Lu type blower, the shells are sorted and dropped in the rotating valve, and then transported by air.

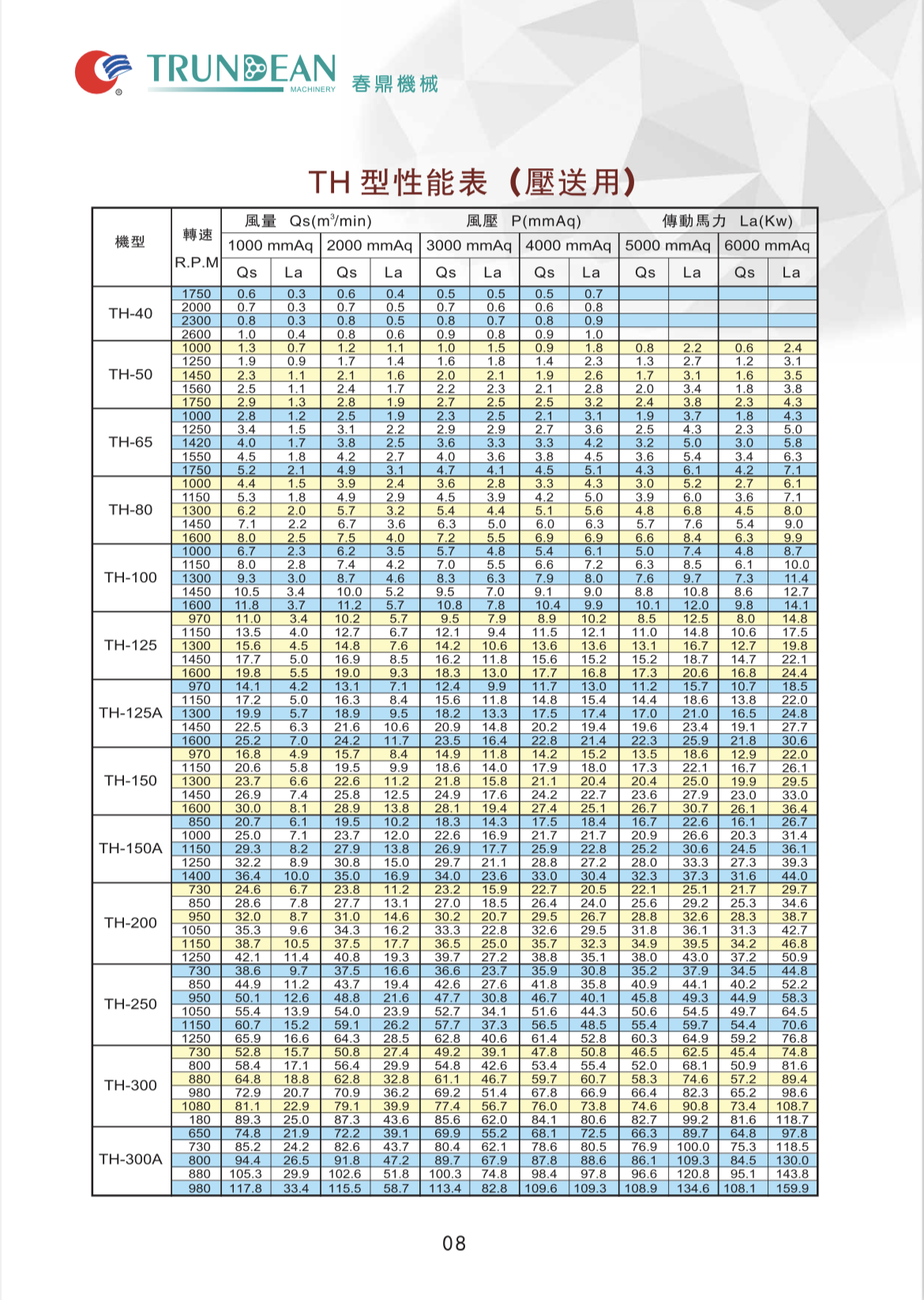

Specification list
