DreiDTek'S INNO-PROJECTOR

Dynamic 3D laser projection positioning system

INNO-PROJECTOR was developed by DreiDTek Inno Shanghai Co., Ltd, it is the first binocular vision-based augmented reality precision manufacturing system in China.The lanuch of INNO-PROJECTOR enhances the security of China's local supply chain in this field, especially for the military and aerospace customers to achieve "chain-free" production. It also enhances the security of  local supply chain, especially for the customers in the field of military industry and aerospace.

INNO-PROJECTOR  adopts intelligent binocular vision tracking technology and is equipped with high-quality optical equipment to achieve the highest precision of 0.25mm. INNO-PROJECTOR adopts digital positioning technology to arm manpower, effectively replacing manual marking and positioning mode of operation, programmed guidance operation, fundamentally eliminating the "error" and "omission", real cost reduction and efficiency, and help customers from production to process. Help customers from production, process, quality and other aspects of leadership.

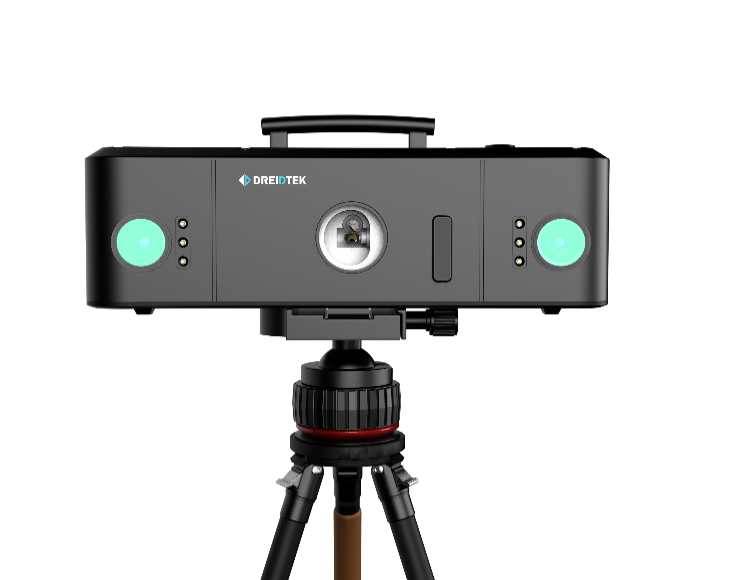

product's picture

DreiDTek's dynamic 3D laser projection positioning system has two main functions：

1. Flexible virtual template
   Based on augmented reality, the system allows features from CAD models, such as holes, edges, contour lines, etc., to be accurately projected onto physical surfaces using lasers, generating virtual 3D templates for collaborative work that can simplify a wide range of assembly and production applications without the need for physical templates.

      2.Digital Inspection tool (Quality Control)

         Providing operators with intuitive visual guidance for machining positioning, while non-conforming parts and components can be immediately identified and repaired, reducing scrap and          rework and improving overall production efficiency, helping companies minimize scrap and unqualified products, helping manufacturers improve product reputation and achieve cost reduction and efficiency gains.

Advantage：

1.Based on binocular vision (dual cameras), it can do image recording with dual cameras and generate reports to make the whole production process traceable;

2. Large field of view high-precision dynamic tracking technology, so that the projection system without fear of workpiece displacement or shop floor vibration, real-time tracking, real-time accurate projection;

 3、Intelligent foreign object detection function (FOD function)

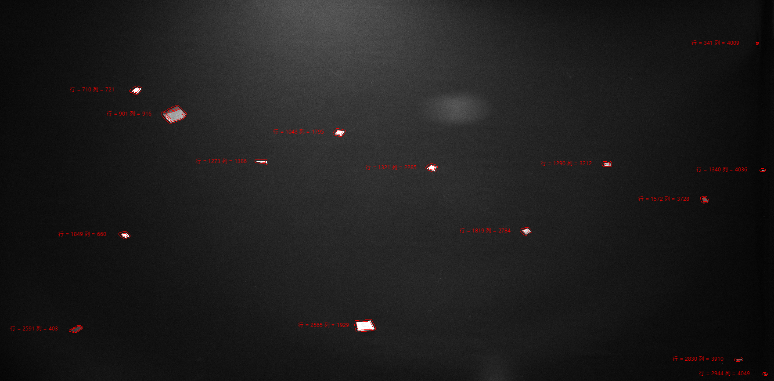

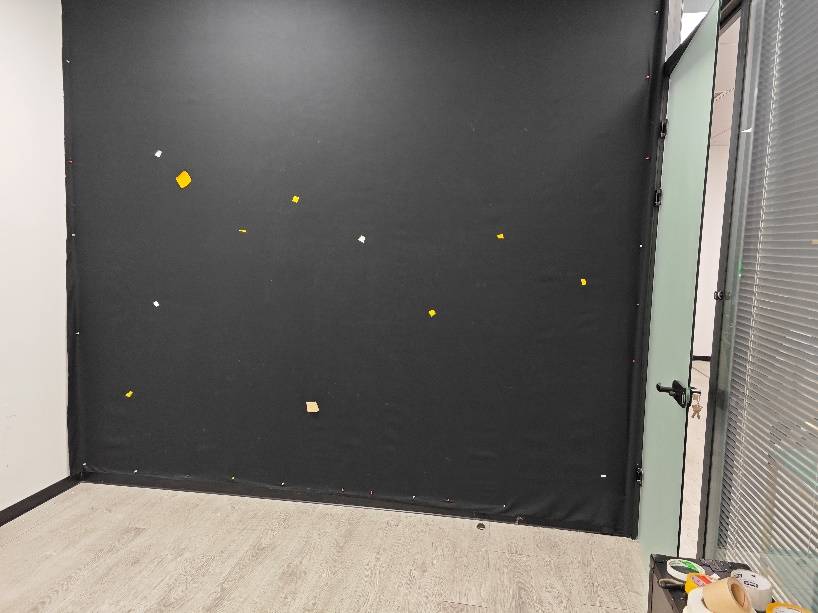

                                                 Scenario Mockup                                                                                                                            FOD fuction in software

4、Projecting each layer's drawing number or part number or annotated text onto the mould is smarter, reduces dependence on worker experience, and fundamentally eliminates "mistakes" and rework;

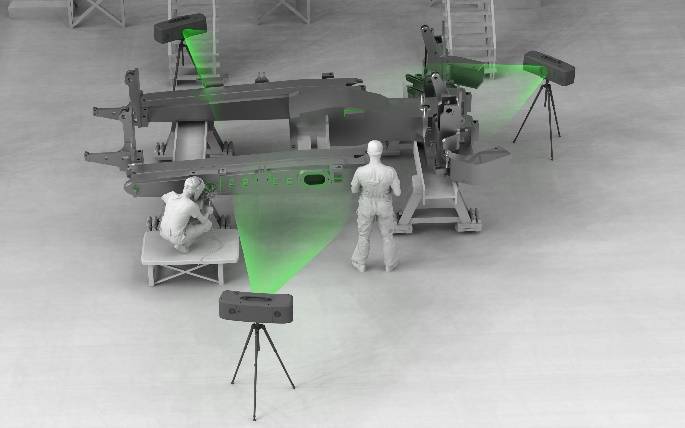

5、Binocular vision automatically identifies the target, eliminating the need for manual guidance and dramatically improving operational efficiency;

6、Can provide secondary development interface, support projection hardware and software customisation.

DreiDTek's dynamic 3D laser projection positioning system can be widely used in aerospace, military, automotive, marine, heavy machinery, composites, rail, concrete construction, electronics assembly and other key manufacturing areas, providing users with positioning solutions for manual assembly positioning, machining positioning such as welding or punching, paving contour positioning, spraying area marking and masking, and tooling fixture adjustment.

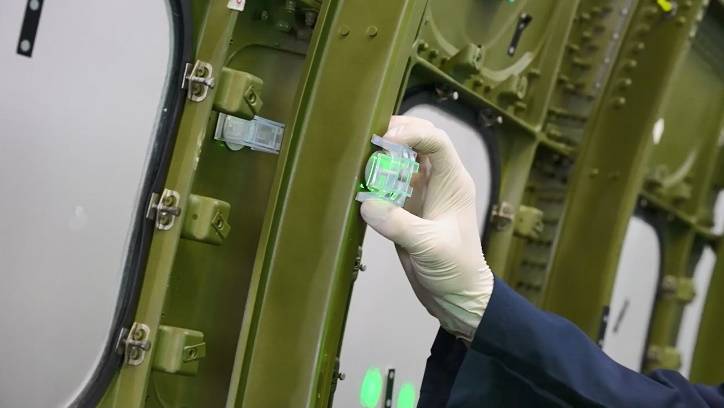

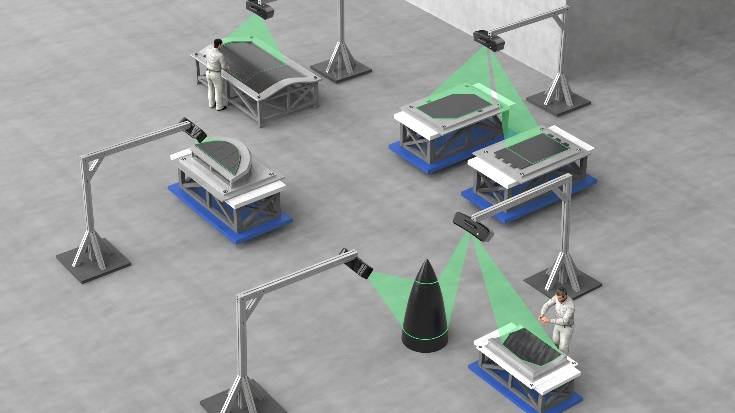

                                               Positioning of aeronautical assemblies                                                                                            Positioning of Composite Layers

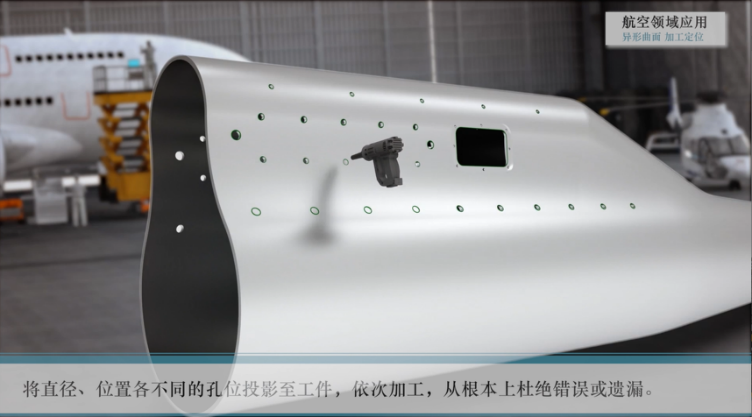

                                                 Positioning for machining                                                                                                   Drilling and positioning of shaped workpieces

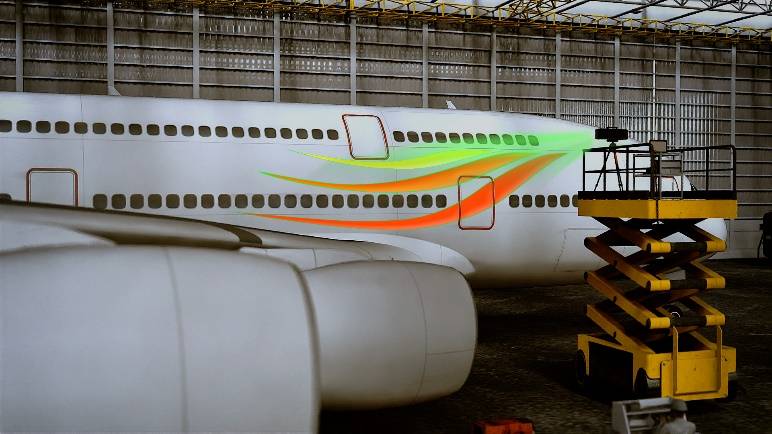

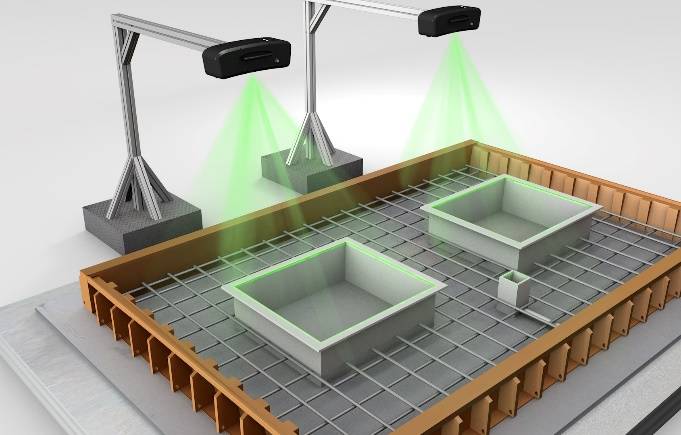

                                        Positioning of precast concrete production                                                                                      Paint area marking and masking positioning

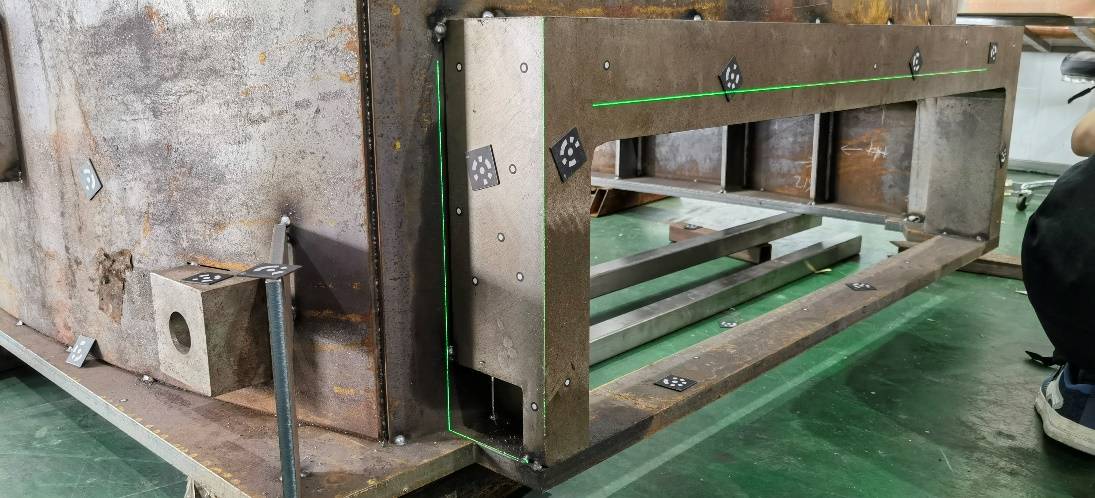

                                                        Mechanical Welding Positioning

DreiDTek's dynamic 3D Laser Projection Positioning System is 100% China-made independent research and development, full-stack controllable, and supports the user's personalised function of customisation needs. The company is headquartered in Shanghai, with convenient after-sales maintenance, timely response and low maintenance cost.

DREIDTEK(Shanghai) Digital Technology Co. , Ltd is a high-tech company founded by Shanghai Jiao Tong University and Fudan University masters, dedicated to being the most valuable Chinese enterprise in the field of industrial augmented reality. The dynamic 3D laser projection system, the first industrial augmented reality device in China, has been developed by our team after more than 10 years of R & D and application in machine vision and laser measurement. Fill the gap in this field, enhance the security of China's local supply chain in this sub-field, especially for customers in the military, aerospace fields to achieve a“Chain-free” life, the danger of getting stuck in the neck was eliminated.
