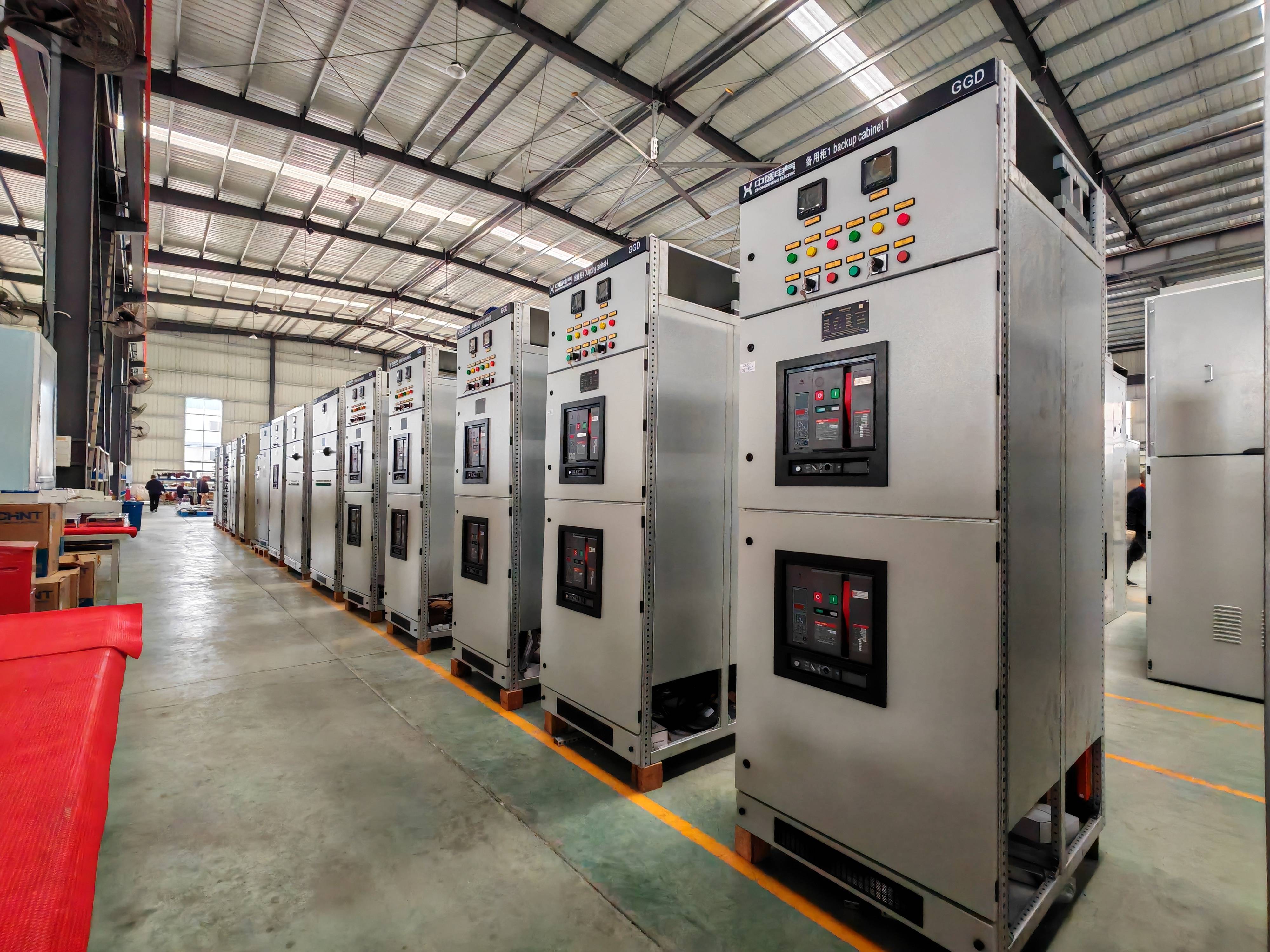

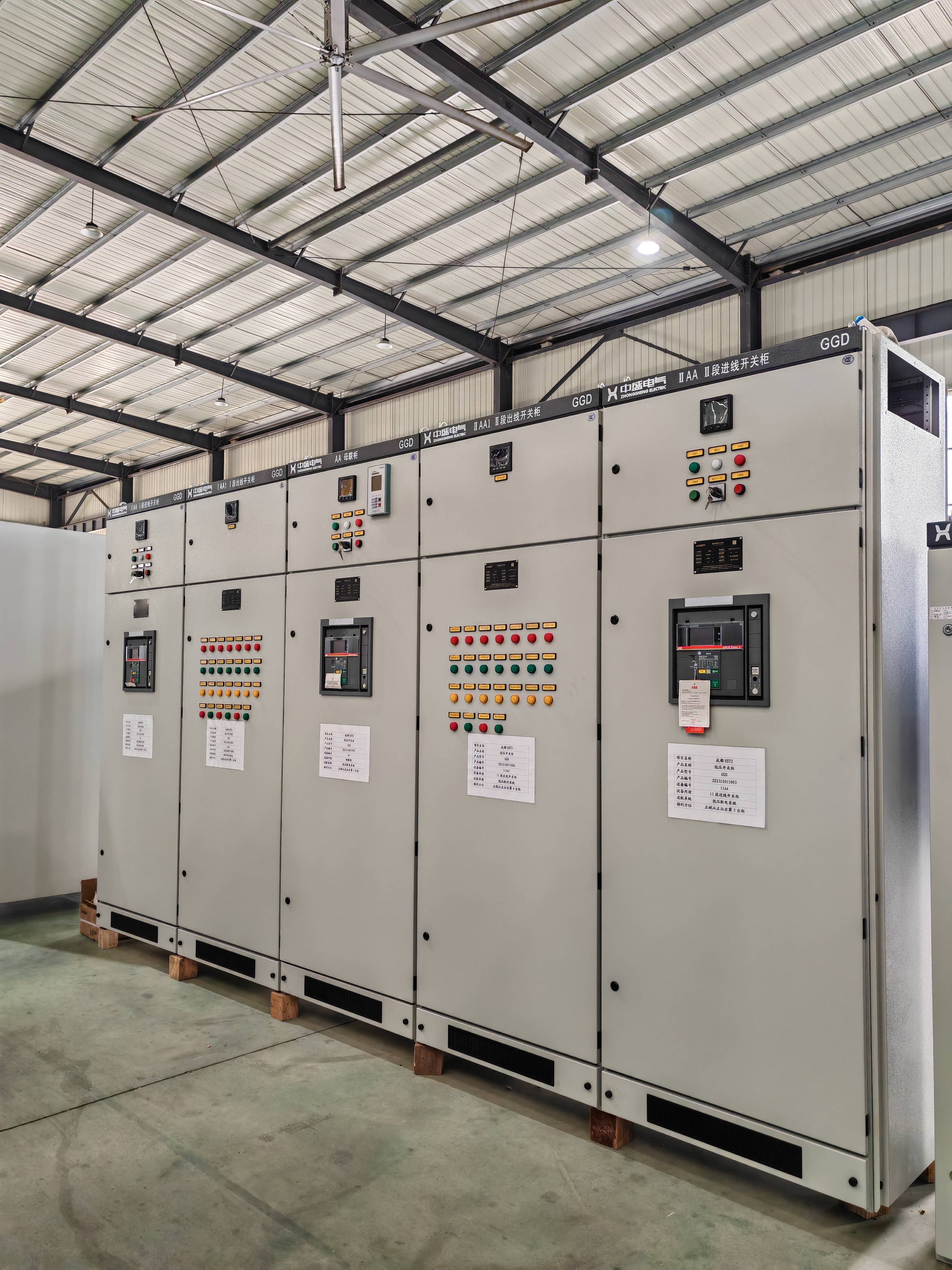

The GGD type low-voltage fixed complete set equipment is widely used in the AC 50Hz, rated voltage 400KV, and rated current up to 3150A distribution system of power plants, substations, mining enterprises and other power users. It is used for the conversion, distribution, and control of power, lighting, and distribution equipment.
Performance characteristics of GGD type low-voltage fixed complete set equipment
The commonly used way of entering the GGD cabinet is through the upper and lower sides, and a method of entering from the top, left, and center right positions of the cabinet is also designed to meet the needs of different entry methods. At the same time, there are fixed positions inside the cabinet for special users such as power plants to install relay protection and automatic devices.
The GGD cabinet has the characteristics of high breaking capacity, good dynamic and thermal stability, and flexible and convenient electrical scheme combination. Usage environment
Environmental temperature: -10 ° C -+40 ° C
Relative temperature:<85 ° C, non condensing
Altitude: Low pressure does not exceed 2000m, high pressure does not exceed 1000m (special design is required if exceeding);
Installation location: The vertical inclination shall not exceed 50, and there shall be no fire, danger, conductive dust, corrosive gas, or severe vibration.
The design of GGD cabinet fully considers the heat dissipation problem during the operation of the cabinet. There are different numbers of heat dissipation holes at both ends of the cabinet. When the electrical components inside the cabinet heat up, the heat rises and is discharged through the upper slot hole. Cold air is continuously replenished into the cabinet from the lower slot, forming a natural ventilation duct from the bottom of the sealed cabinet to achieve the purpose of heat dissipation.
According to the requirements of modern industrial product design, the GGD cabinet adopts the golden ratio method to design the cabinet body shape and the division size of each part. When closing the door, there is a certain compression stroke between the embedded strip and the frame, which can prevent direct collision between the door and the cabinet body and improve the protection level of the door.
The GGD cabinet door is connected to the frame through a rotating hinge, making installation and disassembly convenient. The folding edge of the door is embedded with a mountain shaped rubber strip. When closing the door, there is a certain compression stroke between the strip and the frame, which can prevent direct collision between the door and the cabinet, and also improve the protection level of the door.
The instrument door of the GGD cabinet with electrical components is connected to the frame with multiple strands of soft copper wire. The installation components inside the cabinet are connected to the frame with knurled screws, forming a complete grounding protection circuit for the entire cabinet.
The top cover of the GGD cabinet can be removed when needed to facilitate the assembly and adjustment of the main busbar on site. The four corners of the cabinet top are equipped with lifting rings for lifting and shipping.
The protection level of the cabinet is IP30, and users can also choose between IP20 and IP40 according to environmental requirements.

Hubei Zhongsheng Electric Co., Ltd Locates in National New&Hi-tech Industry district, Xiangyang city,Hubei provience,China. Is a high-tech enterprise which integrated Products R&D, Producing and trading in one. With registered capital of RMB 120,000,000 since July,2008,the company now has more than 4000s square meters workshop and over 400 workers. Has conquered 30% of electric devices in China.

We have specialized in HV,MV,LV power distribution swtichgear /motor soft starters panels and power factor compensation equipment for 12 years, with the customers of York , Ingersoll Rand ,McQuay, Atlas. SEAH. HITACHI ,VEM ,etc

Hubei Zhongsheng Electric Co., Ltd. (hereinafter referred to as Zhongsheng Electric) is a national high-tech enterprise that integrates research and development, production, sales, and technical services. It is located in the National High tech Industrial Development Zone of Xiangyang City. Mainly committed to the research and development, manufacturing, and application of industrial electrical control, power electronics, industrial robots, and automated production lines.
Today, Zhongsheng Electric is rapidly transforming from a "general electrical equipment manufacturer" to an "intelligent electrical system solution integrator", from a "production technology oriented enterprise" to a "technology service oriented" enterprise. With power electronics technology, industrial robots, and automation as the core support of the enterprise, Zhongsheng Electric is striving to gradually become a domestic first-class and internationally advanced intelligent electrical equipment system integration enterprise that integrates research and development, manufacturing, and sales.

Zhongsheng Electric · Brand Culture
Business philosophy:
Survival through quality, efficiency through management, and development through brand
Strategic objectives:
First class talents, first class management, first class products, and first class services
Values:
Using the brand to prove oneself and repay society
Talent perspective:
Not limited to one style, only using ability, putting morality first, and putting people first
Competitive view:
Striving to surpass, pursuing excellence, harmonious development, and pursuing win-win outcomes
Quality policy:
Strict management, continuous improvement, excellent quality, and customer satisfaction

Hubei Zhongsheng Electric Co., Ltd Locates in National New&Hi-tech Industry district, Xiangyang city,Hubei provience,China. Is a high-tech enterprise which integrated Products R&D, Producing and trading in one. With registered capital of RMB 120,000,000 since July,2008,the company now has more than 4000s square meters workshop and over 400 workers. Has conquered 30% of electric devices in China.

We have specialized in HV,MV,LV power distribution swtichgear /motor soft starters panels and power factor compensation equipment for 12 years, with the customers of York , Ingersoll Rand ,McQuay, Atlas. SEAH. HITACHI ,VEM ,etc

Since its establishment, the company always adheres to interests of customers as focus, and solid scientific and

technological development management as backup. The company has been certified to ISO9001 Quality Management

System, ISO14000 Environment Management System, OHSAS18000 Occupational Health and Safety System and

CCC. The company has obtained more than 20 tech patents, and rewarded by government as “Little Giant” “Gazelle

Enterprise”many times. And also Has been awarded as Top 10 Famous and High-quality Brands of China for Reactive

Compensation Devices, and listed into National Torch Program.

Our factory With registered capital of RMB 120,000,000 since July,2008,the factory now has more than 4000s square meters

workshop and over 400 workers. Has conquered 30% of electric devices in China.

The manufacture mainly committed to the research, manufacturing and application of power quality optimization

equipment, motor drive&control equipment, power distribution equipment under 40.5KV. And can offer most optimal

solution,especially for completing whole electric system solution to big projects

The company currently has more than 30 sales staff and 5 professional international sales persons who have over 13 years international business experience. Till today, our sales mainly cover the south-east aisia, Africa and American countries.In any time, our sales team can response in time to any request or inquiry from all over the world. Andwe can make the quotation in time, finish production & shipment in time. Ability to communicate and provide services without barriers. Our products ,services & brands enjoy a high reputation in more than 50 countries
