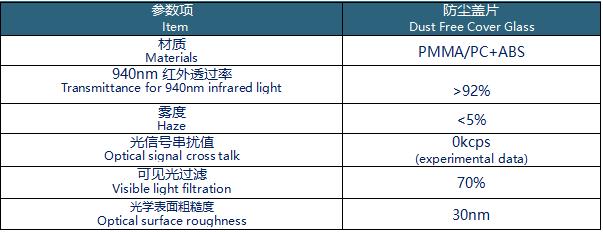

1The following specifications are IR-DF0X1 series dustproof cover plates. The size of the cover plates is customized according to the size of the TOF sensor, and the basic structure is the same. Take ST's TOF laser ranging sensor as an example. IR-DF011 is adapted to ST's VL53L0/VL53L3/VL53L4 series, IR-DF021 is adapted to ST's VL53L1 series, and IR-DF031 is adapted to ST's VL53L5 series.

2 This product is a specially customized infrared optical cover sheet for TOF laser ranging sensors. It uses a self-developed high-performance and high-penetration infrared material suitable for 850~930 nm. It has special optical structure design and precise optical processing. In conjunction with TOF sensors, it can basically immunize the optical signal crosstalk caused by the cover sheet material and structure, and solve the optical signal crosstalk caused by customers due to fingerprints, dirt, dust, scratches, water stains, etc. on the cover surface in different application scenarios., and perfectly present the ranging function of the chip.

- The IR-DF011 dustproof cover has a special optical structure design to simulate the optical path of the TOF sensor and block all possible optical signal crosstalk paths.
- The groove on the incident surface of the product is consistent with the size of the chip and can be directly inserted into the chip.
- Adhesive glue is adhered around the groove of the product's entrance surface, which can be directly pasted on the PCB, eliminating the need for additional installation treatment.
- The optical opening size of the light emitting surface is designed and optically simulated, so that it will not interfere with the FOI and FOV of the sensor.
- The sinking of the optical surface improves the tolerance for dust, water stains, etc. attached to the optical surface in actual application scenarios. Experiments have shown that if the dust and water stains deposited on the optical surface do not exceed the height of the protruding shielding wall in the middle of the cover sheet or if the middle shielding wall is not covered, no new optical signal crosstalk paths will be generated. Even if a certain amount of dust or water stains is deposited on the optical surface, the optical signal crosstalk value can reach 0kcps.

The origin of the brand is based on the English name of K2, Qogir Feng,"Qogir" is usually considered to be Tajik, meaning "tall and majestic", but some people say that "Qogir" is Tibetan, meaning "white goddess", the reason why there is such a saying, because there are Tibetan descendants on the south side of K2, according to historical research, The area south of Chogori is their nomadic and active area, and since their language is close to the Tibetan language, it can also be considered that "Qogir" is Tibetan. But the international mountaineering community generally called K2 K2. And the founder is the second male in the family, the name with the word mountain, and the Italian mountaineering team in July 31, 1954, the success of the summit and the founder's birthday is the same is a memorable day, in the eyes of the world more people see the first peak of Mount Everest often forget K2, using the same meaning of the founder wants to be in their own special field of environment competition has been The heart maintains a heart of awe for the world, and cultivates technological innovation in the field of their own expertise, and strives to let the world remember that there will be a time when the second child will catch up, and the bottom accumulates after the explosion

2021 -- Certified by software enterprises; • Passed ISO9001 quality management system certification

2021 -- Obtained the soft patent of ToF laser ranging chip based on the display of glass surface IR coating area function detection system

2021 -- Invented the ambient light and distance sensor and its packaging method, and obtained the invention patent

2021 -- Obtained 12 utility model patents in mass marketing general use market

2022 -- Signed an agreement with international chip giant ST ST on "Two-way NDA for underlying algorithms, optical calculus, Module, technology sharing and transfer"

2023 -- Based on the learned technology, improve the company's ability to develop the underlying software • and self-develop the underlying function code -- and implement the development of supporting satellite version, function development board, integrated module

2024 -- In the field of special optical protective cover accumulated terminal domestic and foreign manufacturers recognition and procurement import and use, the company has accumulated with trial production and certification customers to master 150, the integrated module field is expected to complete the supporting ST Italian satellite version and development board design and production and sales this year

The origin of the brand is based on the English name of K2, Qogir Feng,"Qogir" is usually considered to be Tajik, meaning "tall and majestic", but some people say that "Qogir" is Tibetan, meaning "white goddess", the reason why there is such a saying, because there are Tibetan descendants on the south side of K2, according to historical research, The area south of Chogori is their nomadic and active area, and since their language is close to the Tibetan language, it can also be considered that "Qogir" is Tibetan. But the international mountaineering community generally called K2 K2. And the founder is the second male in the family, the name with the word mountain, and the Italian mountaineering team in July 31, 1954, the success of the summit and the founder's birthday is the same is a memorable day, in the eyes of the world more people see the first peak of Mount Everest often forget K2, using the same meaning of the founder wants to be in their own special field of environment competition has been The heart maintains a heart of awe for the world, and cultivates technological innovation in the field of their own expertise, and strives to let the world remember that there will be a time when the second child will catch up, and the bottom accumulates after the explosion

JOGORY Optoelectronics Technology Co., Ltd. founded in 2021 and headquartered in Suzhou, China, is a high-tech enterprise specializing in the research and development, production and sales of various types of modular precision optical electronic components.

Optoelectronic components are the most front-end photoelectric sensing components of information systems, from the traditional optical sensing, lighting, communication, laser, energy detection, information storage, transmission, processing and display, to biomedical, consumer optics, automotive, aerospace, quantum communication, semiconductor and other industries production and application, exist in most areas of daily life and economic activities.

At present, JOGORY is mainly committed to the optical perception field of artificial intelligence and Internet of Things, and its products are mainly applied to consumer industries such as electronic products and 3C digital.

Since its establishment, the company has established a close partnership with the upstream international chip leader - ST ST chip manufacturers, and with Cobos, millet, Autonavi, BOE and other well-known enterprises at home and abroad to carry out extensive business cooperation.

In the future, JOGORY will continue to improve the coupling between optical materials, module hardware, software and ranging chips according to various application scenarios of terminal products, and strive to promote the development of artificial intelligence and Internet of Things industry with chip manufacturers and terminal manufacturers, and help the transformation of China's intelligent manufacturing industry.

Limited company based on the general market optical devices, optical protective cover, glass panel coating area testing industry first echelon;

• At present, the company has the following five main businesses and three core products:

1: infrared proximity sensing photometry protective cover --• Glass coating is mainly in the product plane market; • End products with special structures can only be made of plastic optical protective covers;

2:ToF laser sensing photometry device

3: Single point and array integrated modules -• for the realization of intelligent functions in all products in the general market; • Let the product have a soul in front of consumers (human-computer interaction, gesture recognition, 3D modeling, behavior discrimination; • For different functional chips and general market product appearance can be once again individually sample secondary package integration.

4: Test equipment for laptop and flat glass coating area --• The yield can reach 100% when the terminal receives the glass panel

5: Deep ultraviolet optics system design and product development

1: Specialized mold development ability -- 10 sets of monthly development at the same time

2: Precision optical parts production - 3kk/pcs per month

3: Integrated module production and assembly - 500k per month

4:SMT/PCBA monthly production -- monthly 1.5kk/pcs

5: Satellite version/development board month --10k/ set
