Product information
The Langan Model BC5-35A H2 Pull-Off Valve provides extra safety for your bus and truck hydrogen refuelling stations. The pull-off valve is installed between the hydrogen dispenser and the filling hoses (fill and recovery hoses). In the event of an accident.
For example, driving a vehicle while the hydrogen filler gun is still connected to the bus or truck, the pull-off valve separates the hydrogen dispenser from the hose and keeps both ends sealed. This greatly protects the vehicle's hydrogen tank, the hydrogen gun and the hydrogen dispenser from
damage. After a functional test, the disconnected pull-off valve can be easily reconnected and put back into service. The integrated filter inside the pull-off valve provides clean hydrogen gas and is easy to maintain.

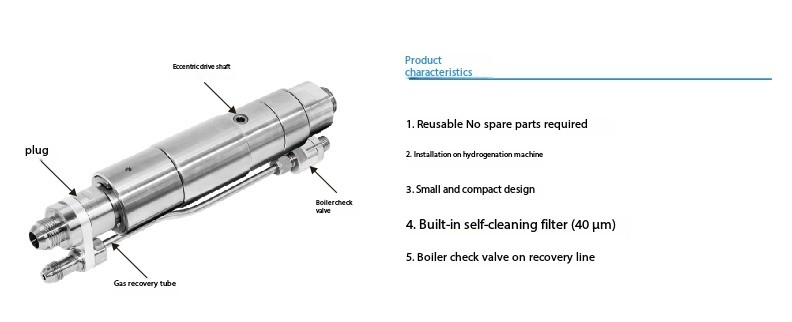

valve consists of a body, a plug and a gas recovery tube with a non-return valve. Upon request, we also offer complete hydrogen gun hose assemblies, including the hydrogen gun, hose set and pull-off valve.
Applications:
Pull-off valves for bus and truck hydrogen refuelling stations, which can be mounted directly on the hydrogen dispenser.
● Order | Longan BC5 H2 Pull-Off Valves with Gas Recovery Tubes
● Ordering | Langan BC5 H2 Pull-Off Valves with Gas Recovery Tubes

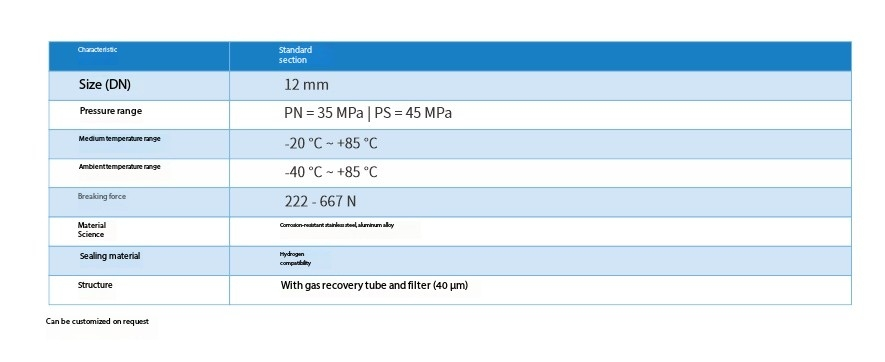

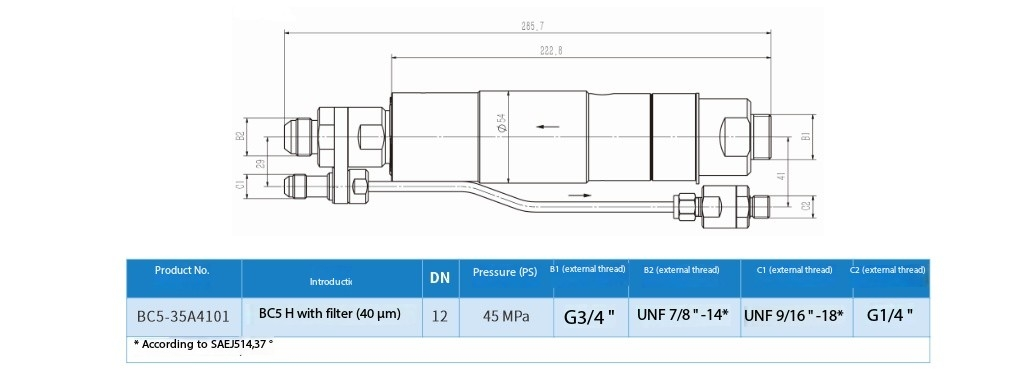

◆ Basic Dimensions (mm):
