ZK51 Series Vertical CNC Gun Drilling Machine Overview

•  The spindle of the machine is inverted, which is more conducive to the discharge of chips, and also obtains excellent machining surface quality.
• The machine is controlled by PLC with "friendly" human-machine interface. Equipped with special guide mechanism, it can get shorter tool length, better tool rigidity and higher cutting efficiency for the same drilling depth.
• Two independent machining units can process the same or different size parts, making factory scheduling more flexible and efficient. The footprint of the machine is smaller than that of a horizontal gun drilling machine with the same machining capacity.
• Mainly used for parts length <500mm, processing hole diameter in the range of 5-40mm hole system of rotary axis parts of deep hole and precision line hole batch of efficient machining Can be clamped four workpieces at a time, can also be left and right respectively processing two different specifications of the workpiece.
• The workpiece clamping, drill rod rotation and other parameters of the left and right dual-axis work units can be set separately without interfering with each other. It is a favorable tool for processing stepped holes for shafts and cross holes for hydraulic valve plates.

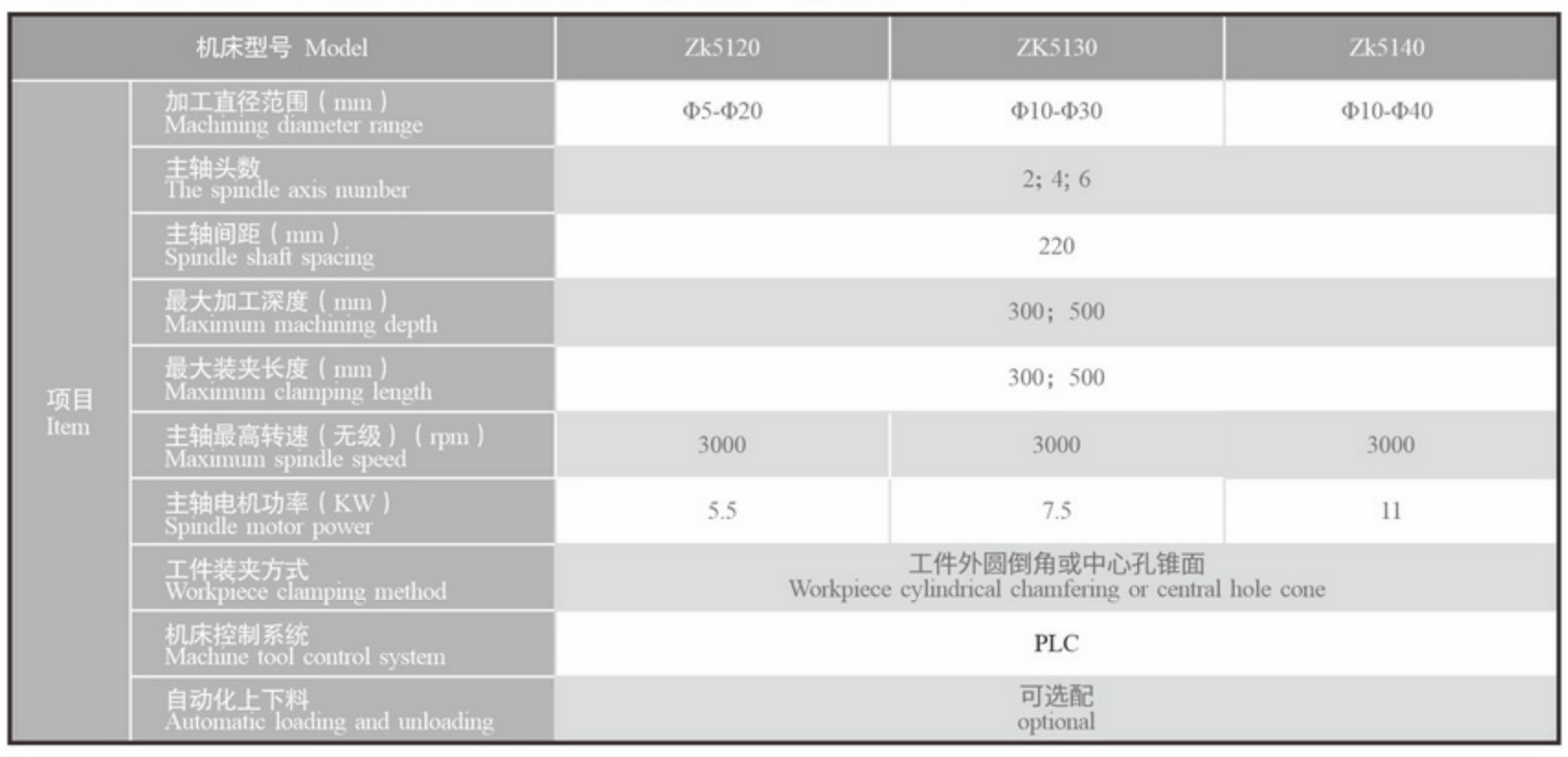

ZK51 Series Vertical CNC Gun Drilling Machine Main Technical Parameters

Shaanxi Golden Stone MachineryManufacturing Co.,Ltd.(GSM for short) is specialized in R&D, manufacturing and marketing of high precise deep hole drilling machine, deep hole drilling tool and auxiliary equipment. As a professional manufacturer, GSM benefits clients with high-class products and comprehensive services as sub-contract, sample drilling, deep hole drilling technology consultant, etc. As a "national high-tech enterprise", GSM is also certificated as the “ Metal Material Deep Hole Drilling Technology and Application Engineering Laboratory”.


Experienced in R&D and manufacturing of metal cutting machine for 50 years and deep hole drilling machine for 30 years, with accumulated technologies, GSM’s obtained strong R&D ability, advanced technology, high equipment capacity. We are the most important deep hole drilling machine supplier of industries like mining machinery, automotive, mold, hydraulic, etc. of China.


Focus on clients’ needs for now and future, satisfy the clients’needs base on promote manufacturing efficiency, save the cost and advance core competitive ability is GSM’s goal.

Shaanxi Gold Stone Machinery Manufacturing Co., Ltd. was established in 2004, formerly known as Xi 'an Machine Tool Factory. It has over 50 years history of metal cutting machine tools.

Over 30 years of deep hole drilling machine design and manufacturing , and the birthplaceof China's first gun drilling machine tools.

After ten years of development, Gold Stone Machinery  has become a set of CNC deep hole drilling machine tools, deep hole tools and processing accessories , manufacturing, sales as one of the specialized equipment enterprises.

Shaanxi Gold Stone Machinery Manufacturing Co., LTD,  Xi 'an "Metal material deep hole processing technology and application Engineering Laboratory", provincial "high-tech enterprise",ISO9001:2015 quality management system certification, National innovation fund support unit, EU CE certification.

With a long history and profound technology accumulation, complete production quality management system, professional technical and sales personnel and continuous attention to your needs, we will be able to provide you with the most suitable deep hole drilling solutions and equipment.

High quality products have been widely used in military industry, automobile manufacturing, mold industry,aerospace, medical equipment, coal mining, petroleum machinery, chemical industry and many other fields.
