1. Introduction of the Machine Tool

The SHW model is a spindle vertical conversion five-axis linkage machining center. The standard configuration of the machine tool is Dr. HEIDENHAIN's iTNC530 CNC system, supplemented by Dr. HEIDENHAIN's grating scale, which realizes the full closed loop of the machine tool. At the same time, the use of high-power servo motor and torque motor direct drive makes the machine tool have features of high positioning accuracy (according to German VDI/DGQ3441 standard), fast response speed (acceleration 5m/s2) and five-axis linkage processing.At the same time, the machine is equipped with an automatic tool changer, which fully embodies efficient and automated machining.

Left and right movement of the skateboard (X axis), front and rear movement of the table (Y axis), up and down movement of the headstock (Z axis), rotation of the table (C axis) and rotation of the milling head (B axis), making the five-axis linkage of machine tool is achieved.The entire machine consists of the bed, column, slide, rotary table, milling head, pneumatic system, automatic lubrication system, chip cooling system, electrical system and fully enclosed protection system.

The machine is equipped with an imported electric spindle, which has the function of central water discharge, which can realize the automatic loosening knife and broach of the spindle.The three linear feed axes of X, Y and Z of the machine tool adopt servo motor, and the ball screw is rotated by the synchronous leather belt. The B-axis rotation adopts the servo motor to drive the mechanical deceleration mechanism, and the C-axis rotation adopts the servo motor to drive the worm gear and worm, which makes the transmission system have high motion precision and transmission rigidity.

The main purchased parts of the machine tools are equipped with water-cooled machines, cutting fluid paper belt filters, chip conveyors and iron scrapers. At the same time, the machine tool can be equipped with various automatic measuring devices, fixtures and tools according to the needs of users, thus achieving the turnkey project of the machine tool.

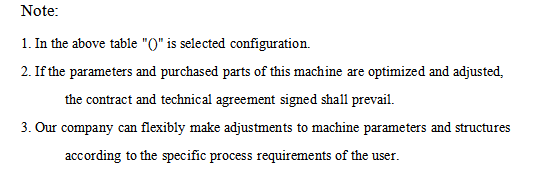

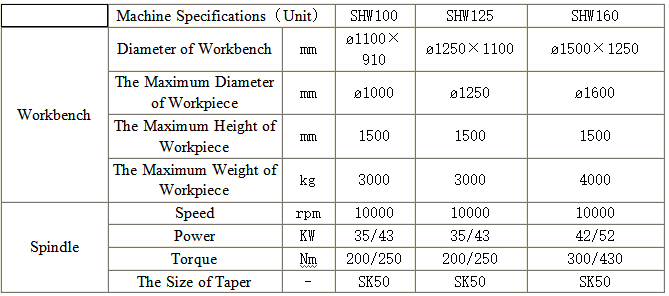

2.  Technical Parameters of Machine Tool

1993, company established, start development evolution.

1994, developed Φ160mm double wall corrugated pipe.

1997, UPVC solid wall pipe belling machine successfully developed

2001, developed Φ500mm double wall corrugated pipe production line.

2003, developed Φ800mm double wall corrugated pipe production line, especially the successful development of double wall in-line belling, devoted great help to promote this project in city construction in China.

2003, established Dalian Sunlight Machinery Co.,Ltd. Same year established subsidiary Shanghai Sunlight Plastic Machinery Manufacturing Co.,Ltd.

2004, foreign trade department established, the same year we go abroad.

2005, set up project for developing of φ1000mm PVC double wall corrugated pipe production line.

2006, developed Φ1500mm double wall corrugated pipe production line.

2008, developed corrugated pipe perforator as innovation of China.

2010, developed high speed energy-saving corrugated pipe production line.

2011, Dalian Sunlight Machinery Co.,Ltd. successfully went public in Shenzhen Stock Exchange SME board, stock in brief Sunlight Corp. Stock code 002621.

2012, invest on research and development of high-end machine tool project, until now, accomplished 3 series 5 types of high end machine tools research and development, especially for the five-axis machine tool vertical-horizontal switch numerical control milling head, double-axis swing numerical control rotary table.

2014, developed Φ1800mm double wall corrugated pipe production line.

2015, high-end machine tool project extended, combine of 3D printing technology and robot technology, developed additive and subtractive manufacturing of complex five-axis numerical machine tool with international leading technology, realize metal 3D synchronously additive and subtractive manufacturing based on laser technology.

2017, Dalian Sunlight Machinery Co.,Ltd started collectivized operation, diversified development. According to overall planning we set up Dalian Sunlight Technology Co.,Ltd, transferred equipment manufacturing business to this company.

2024， Sunlight Technology double wall pipe production line and high level 5 axis maching center have been sold around the world,meanwhile basic on market and customer demand for application the Sunlight has investment in product research and development so that promote marking share continually.

Dalian Sunlight Technology Co.,Ltd was established in the year 1993, went publish in the year 2011, we are high technic enterprise. The company located in Dalian Hi-tech Zone, Liaoning, the east, south and west surrounded by Yellow sea and Bohai sea, with highway, railway, airport and port, such superior geographical environment creates great convenience for development of company.

Leading technology, advance equipment, scientific management and perfect service are the persistent principle of development of Sunlight people. Focused on manufacture and technic research of plastic corrugated pipe equipment for over 20 years, Dalian Sunlight reached advanced level on technology of double wall belling, corrugated pipe perforating, mold block cooling, corrugator random belling, double cutter control, HDPP single wall manufacture, extra small size elastic corrugated pipe manufacture and corrugator horizontal design. Best seller 630H/800H/1000H series high speed corrugated pipe production line is faster at producing speed with lower power consuming compare with traditional production line. With the function of remote control, auto cutting, auto weighing, overweight alarm etc. The latest parallel twin-screw extruder, adopt one-step method (granule and powder) directly produce polyolefin double wall corrugated pipe, which greatly reduce the producing cost and increase the pipe quality. Currently, we have made a breakthrough of manufacturing technology of plastic corrugated pipe with larger diameter and higher strength, will be launched continuously.

Since 2012, our company has been devoted to the development and manufacture of high-end five-axis linkage machine tools.

At present, we have successfully assembled and sold two series of products, including vertical- cradle-five-axis linkage machining center and vertical-horizontal convertable five-axis linkage machining center.

At the same time, on the basis of the five-axis linkage machining center, the company has developed comprehensive equipment for adding and reducing materials.

A flexible production line for the five-axis linkage machining center has been built, which can tailor different customized equipments.
