SUMEC TOUCH WORLD

EASYFLAG 3000 is carefully designed by Italian AFFRI company
Design and build a fully automatic Brinell, Rockwell hardness
Plan. What makes it unique is that it has a set installed inside the device
Grinding and polishing device, such a special design is for grinding and polishing
Better rigidity and stability in the process. Its radius sum
Longitudinal design can be perfectly adapted to different sizes and sizes
Small sample.
The EASYFLAG 3000 includes a versatile combination rotation
Indenter, automatic selection of objective and hardness indenter, equipped
High resolution camera with autofocus and auto
The function of identifying indentation. The whole hardness testing process is in one
A fully automated test.
The EASYFLAG 3000 is a 100% made in Italy device.

Equipment characteristics
- Compact, rotary multi-function combined indenter includes: clamp
Tightening device, laser positioning device, grinding and polishing device
A load sensor, an optical object that produces an indentation
Mirrors and HD cameras
- The hardness of polishing can reach 55 HRC
- Grinding depth can be controlled by program from
0 to 1mm (accuracy 0.01mm) and improved
To 3mm (accuracy 0.02mm)
- Autofocus

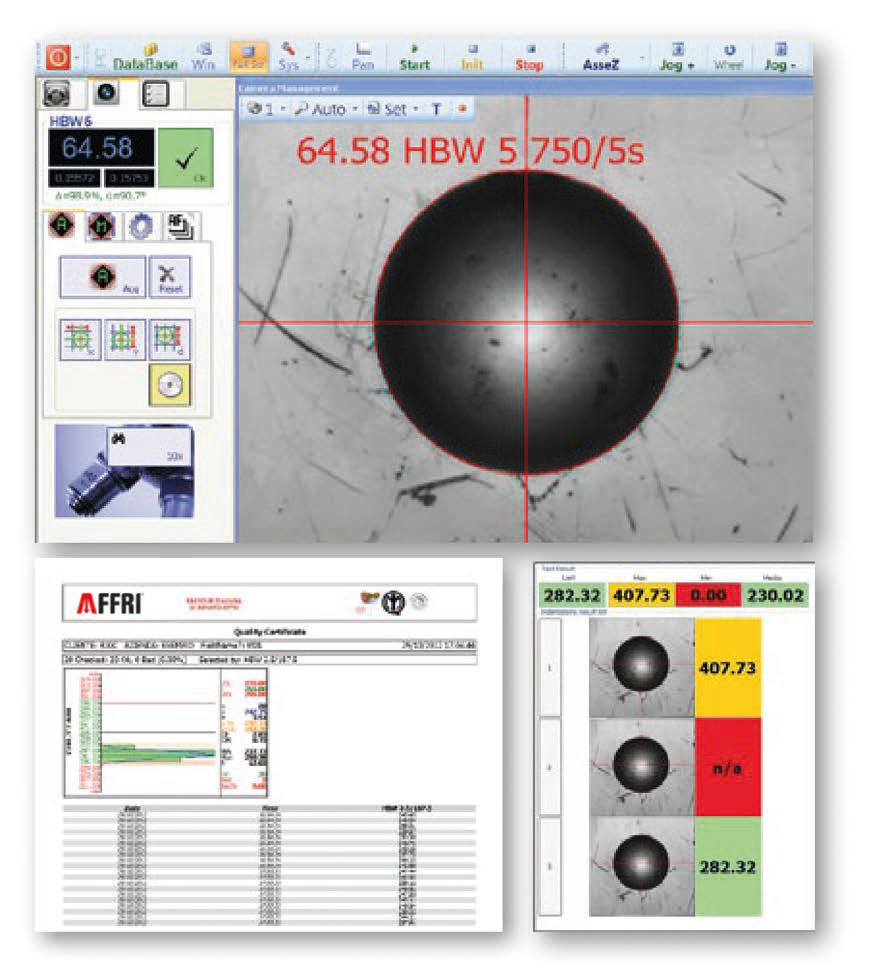

- Automatic indentation recognition
- Test the load force value with program control and closed-loop control
And force value sensor loading
(750-1000-3000Kg)
- Hardness indenter: 5mm and 10mm diameter steel ball
- Test cycle: by separate instruction from search
Sample, approach sample, grinding and polishing sample surface, hard
Degree indentation, autofocus, indentation recognition, read hard
Degree value, end test
- Maximum test diameter: 1000 mm
- Maximum test height: 1000 mm
- Test base size: 1000x1000 mm
- Solid steel frame (without cast iron)
- Effective Brinell hardness range: 10~700 HB


AFFRI Italy was founded in 1954 by the father of CEO AFFRI ROBERTO. AFFRI has a strong team, specializing in the development, production, sales and after-sales service of hardness tester for more than 70 years. AFFRI also manufactured hardness testers under the WILSON brand name for nearly 10 years. Over the past seven decades, AFFRI has patented numerous technologies, most notably sensors and closed-loop control. The world's first portable hardness tester was manufactured by AFFRI. AFFRI also produces custom models for many large domestic and international enterprises.

1954 - DUROMATIC 124

1954 – AFFRI公司生产了世界上第一台便携式洛氏硬度计

(具有专利权)

1964 - BZ

AFFRI公司生产了世界上第一台具有自动调零和预加载功能的便携式洛氏硬度计

(具有专利权)

1966 - RS

AFFRI公司生产了世界上第一台自动台式硬度计

(具有专利权)

1982 - DIGITRONIC

AFFRI公司生产了世界上第一台数显式自动台式硬度计

(具有专利权)

1984 - CK3000

AFFRI公司生产了带加载控制单元的闭环加载系统

(具有专利权)

1985 - ODK3000

AFFRI公司生产了全球第一台带闭环加载系统、带物镜测量压痕的自动布氏硬度机

(具有专利权)

1995 -  INTEGRAL

 AFFRI公司生产了全球第一台带闭环加载系统、带摄像头压痕测量的全自动布氏硬度机

(具有专利权)

1999 -  MRS

 AFFRI公司生产了带闭环加载系统的超快硬度测试装置.

(具有专利权)

2000 -  MASTER

AFFRI公司生产了标准机（AFFRI 专利的闭环加载系统），具有更高的准确性.

(具有专利权)

2012 -  WIKI 30

AFFRI公司生产了全球第一台带闭环加载系统、带全自动对焦及压痕测量的便携式维氏硬度计

(具有专利权)

2013 -  RSDMAG

AFFRI公司生产了全球第一台便携式洛氏-布氏硬度计（带磁性吸附装置)

(具有专利权)

2013 -  ISRHU09

AFFRI公司生产了带闭环加载系统的的万能硬度计

(具有专利权)

意大利AFFRI公司成立于1954年，由公司CEO AFFRI ROBERTO先生的父亲创立。AFFRI公司拥有强大的团队，专业从事硬度计的研发、生产、销售以及售后服务等超过70年。早年AFFRI公司还为WILSON贴牌生产硬度计近10年。在七十年里，AFFRI公司取得了无数专利技术，其中最具代表性的就是传感器和闭环控制技术。世界上第一台便携式硬度计就是由AFFRI公司生产的。AFFRI公司还为多家国内外大型企业生产定制机型。中国区案例：沈阳华晨宝马汽车，世界上第一台全自动四工位压头国际橡胶硬度计来自AFFRI公司、宝武集团宝钢股份中央研究院引进了AFFRI公司高温多功能全自动洛氏硬度计。

AFFRI was founded in 1954, and since then, the company has focused on the development and production of high-tech, high-precision precision measuring instruments. Over the past 70 years, AFFRI has been striving to make breakthroughs, obtained numerous patents, developed a series of leading technology and outstanding functions of hardness tester, is a world-renowned professional manufacturer of hardness tester, its equipment is widely used in aerospace, automotive manufacturing, steel, biomedical, railway track, mechanical parts, plastic and rubber, military and other fields, customers all over the world.
