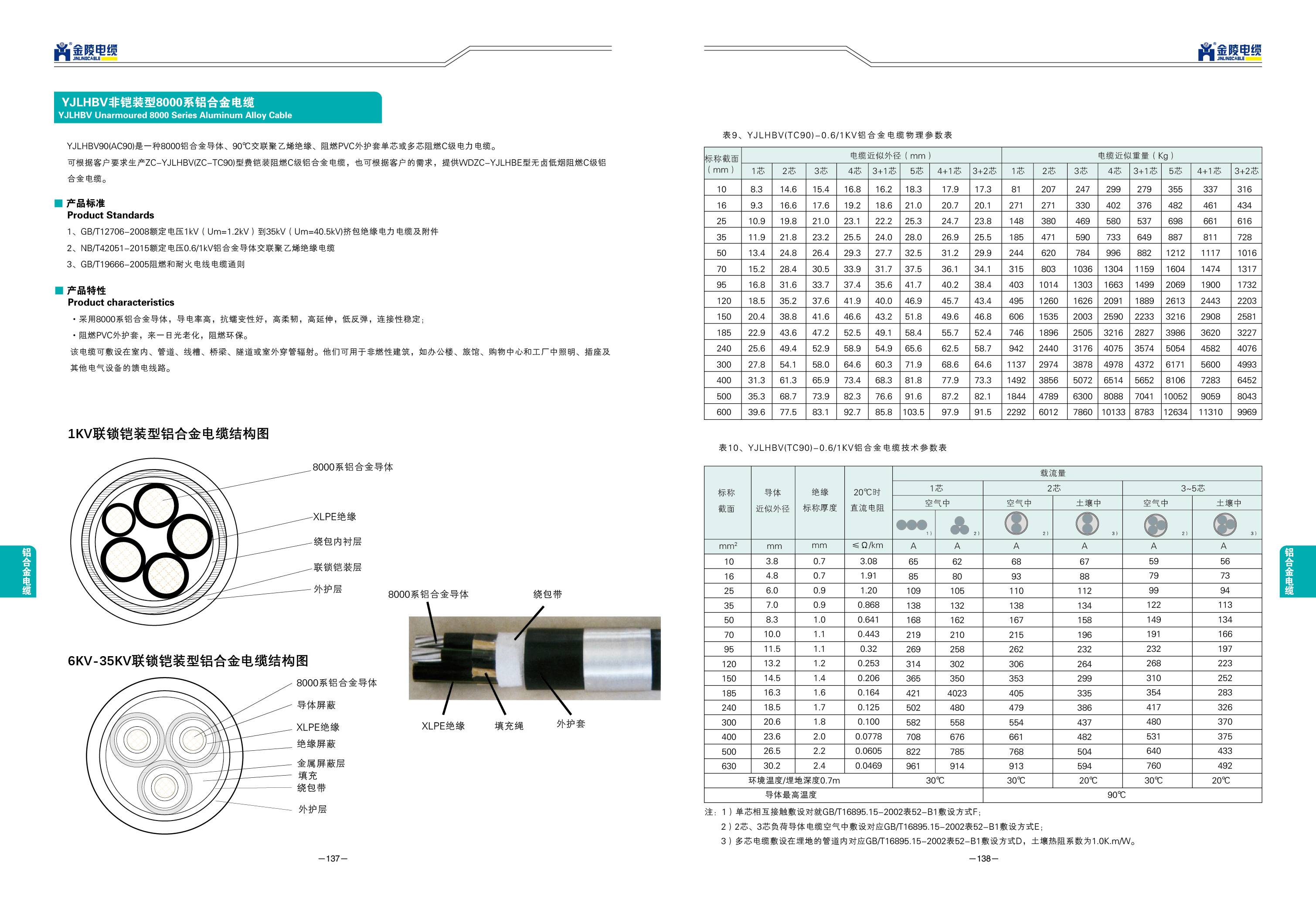

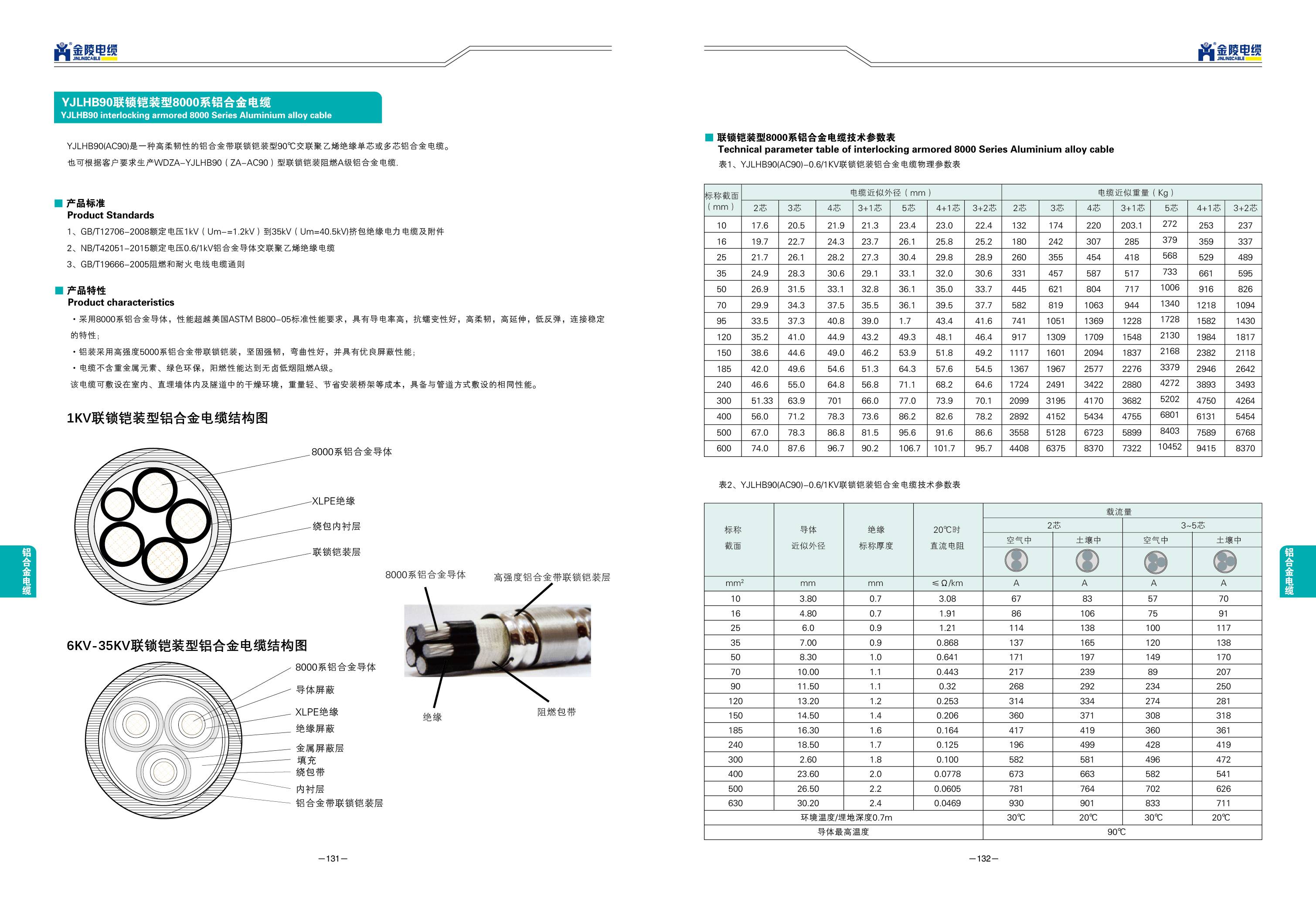

The ZC-TC90 unarmoured cable is made of aluminum alloy conductor with a cross-section from 16mm2 to 400mm2. The core is ASTM Class B compression stranded type, which reaches GB/T 1838.3-2001 flame retardant C-grade aluminum alloy cable conductor fully complies with GB3956, and also meets the standards of GB/T 12706.1 and IEC60502 latest edition. Composition: The conductor is aluminum alloy, the insulation material is crosslinked polyethylene insulation with a working temperature of 90 ° C, and the exterior is an integral black PVC protective sheath. Comprehensive performance: Price: under the premise of achieving the same electrical performance, the price of aluminum alloy cable is about 30%~50% lower than that of copper core cable conductor: creep resistance, high flexibility, strong extension, low rebound, stable connection insulation: high temperature resistance, anti-burning, anti-aging, strong and durable, low carbon environmental protection. Outer sheath: PVC without lead and cadmium, can be installed in wet places, can also be directly buried or laid in cement. Use: Aluminum alloy power cables have been widely used in developed countries such as the United States and Canada. Application field Suitable for 600V~35kV voltage level; Suitable for dry or wet places at 90℃; Can be installed indoors and outdoors, can be installed vertically, can also be laid along the wall, can also be buried underground; The bending radius is at least 7 times the outer diameter, and can also be bent 360°; Applicable to civil, commercial, industrial, school, large venues and other places. YJHLV (TC90) 0.6/1KV single core crosslinked polyethylene insulated polyvinyl sheathed aluminum alloy power cable

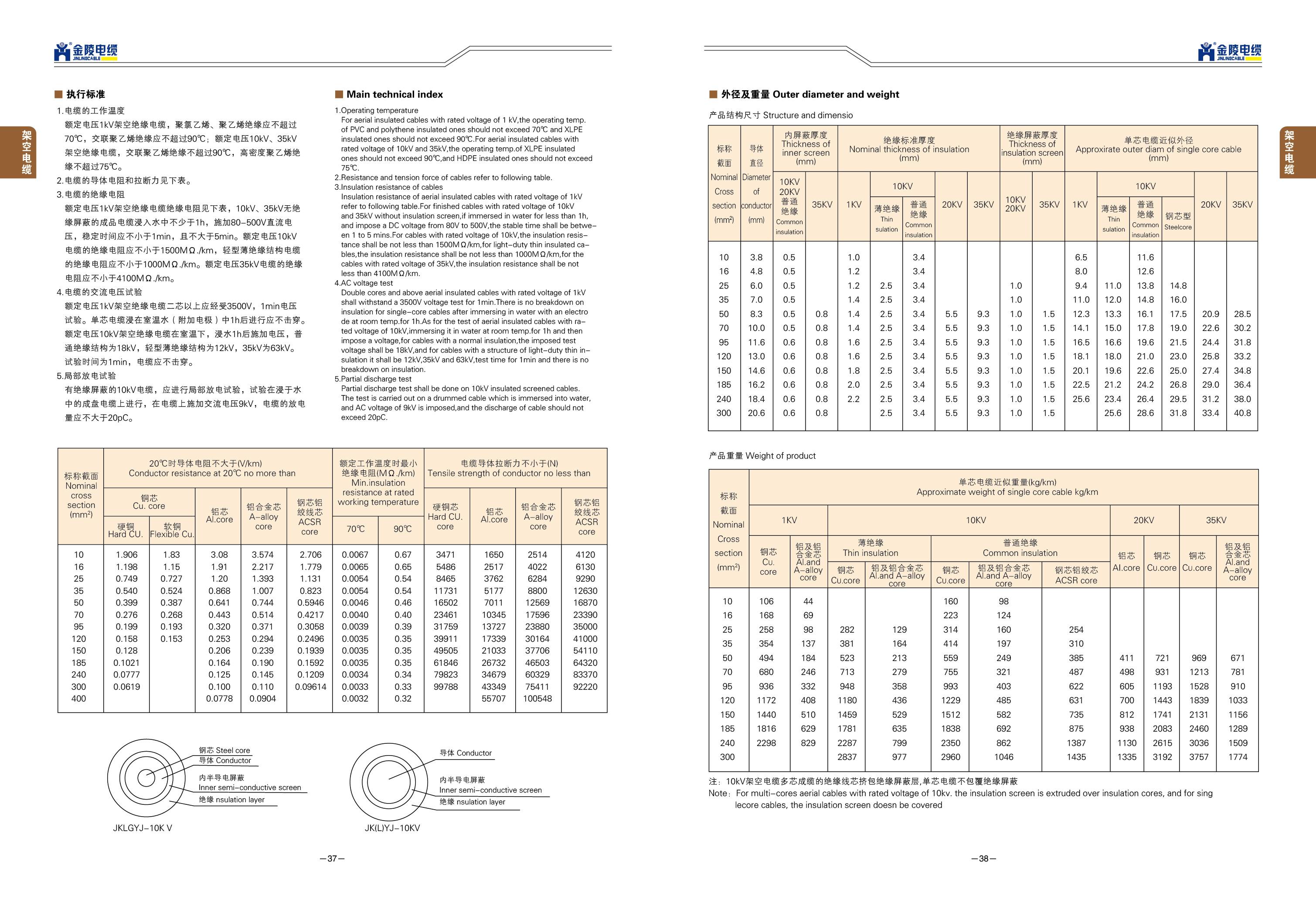

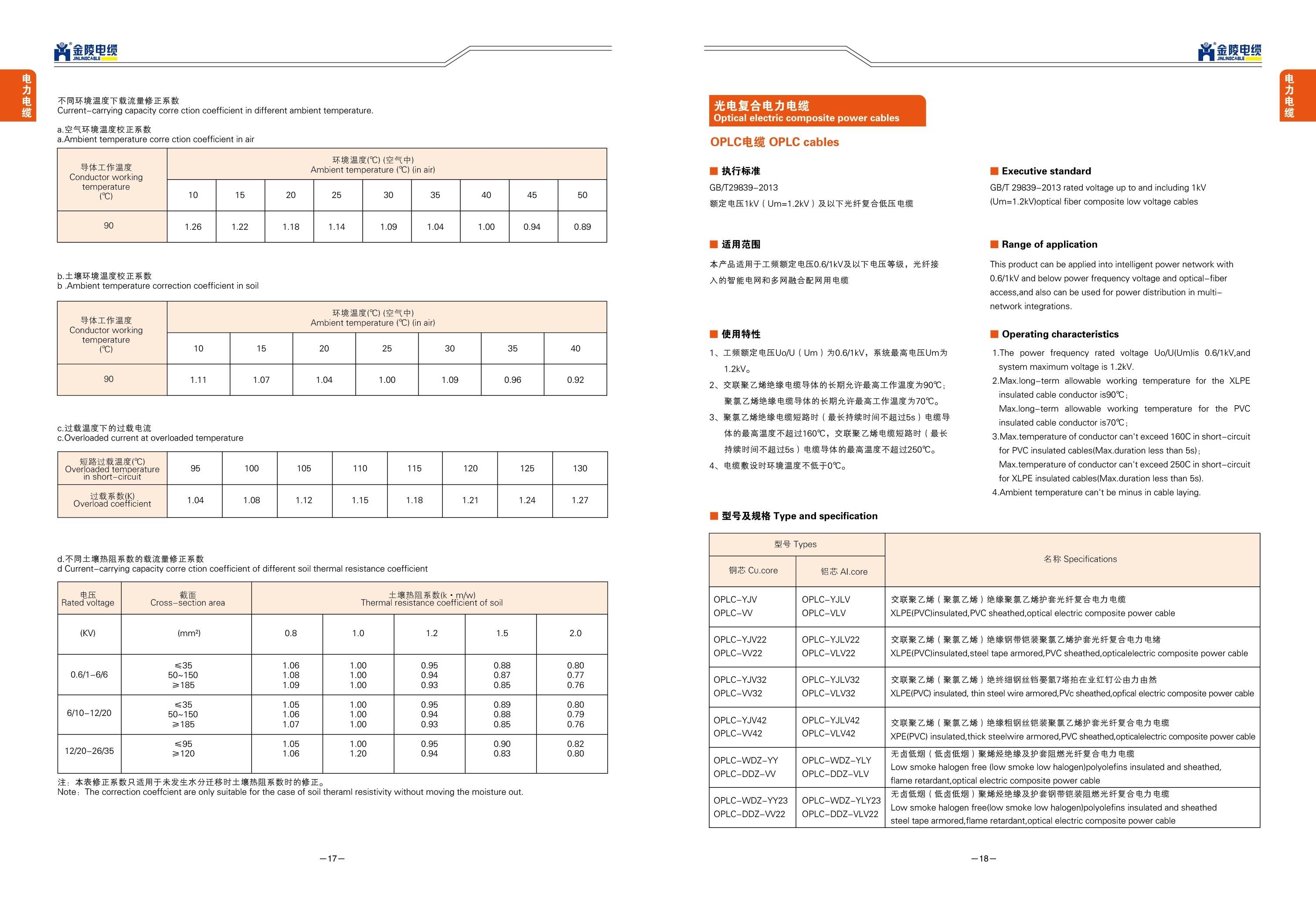

Conductor section Conductor diameter Insulation thickness sheath thickness Cable Outer diameter Cable weight 20 ° C Xhui Aluminum alloy conductor DC resistance Insulation resistance Current carrying capacity of the cable
m㎡ ㎜ ㎜ ㎜ ㎏/㎞ Ω/㎞ ≧MΩ/㎞ in the air (A) directly buried in the soil (A)
10 3.80 0.70 1.50 8.00 95 3.0800 0.5230 60 75
16 4.80 0.70 1.50 8.90 120 1.9100 0.4310 75 100
25 6.00 0.90 1.50 10.40 190 1.2000 0.4440 115 130
35 7.00 0.90 1.50 11.50 207 0.8680 0.3790 140 150
50 8.40 1.00 1.50 13.00 245 0.6410 0.3550 170 180
70 10.00 1.10 1.50 14.00 336 0.4430 0.3350 215 225
95 11.60 1.10 1.50 16.40 455 0.3200 0.2900 275 270
120 13.00 1.20 1.50 17.80 550 0.2530 0.2820 320 305
150 14.60 1.40 2.00 20.60 650 0.2060 0.2940 370 340
185 16.20 1.60 2.00 22.50 804 0.1640 0.3030 415 375
240 18.40 1.70 2.00 24.90 1021 0.1250 0.2830 490 435
300 20.60 1.80 2.50 27.30 1238 0.1000 0.2630 565 495
400 23.80 2.00 2.50 34.10 1455 0.0778 0.2430 640 555

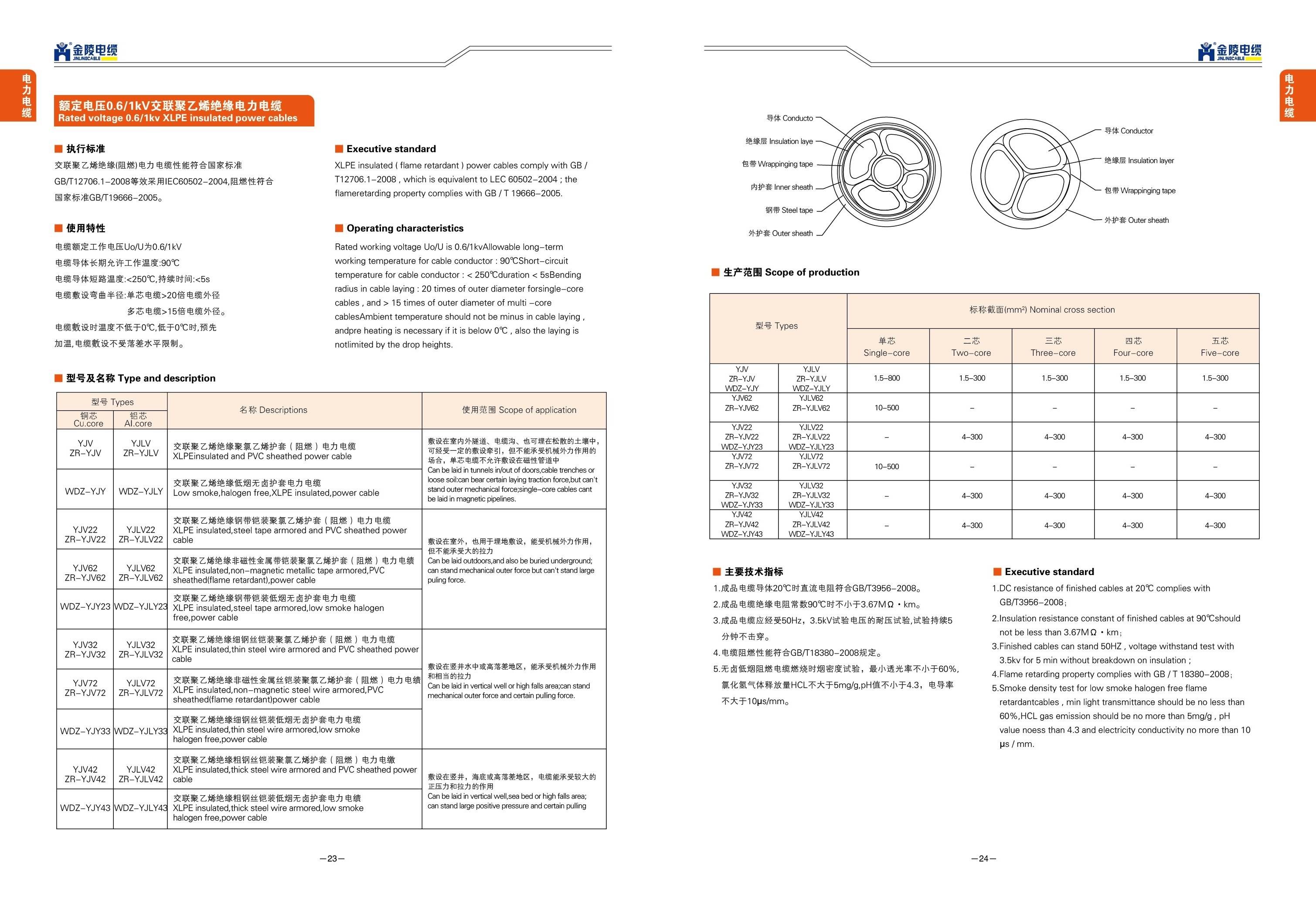

YJHLV (TC90) 0.6/1KV three-core crosslinked polyethylene insulated polyvinyl sheathed aluminum alloy power cable

Conductor section Conductor diameter Insulation thickness sheath thickness Cable Outer diameter Cable weight 20 ° C Xhui Aluminum alloy conductor DC resistance Insulation resistance Current carrying capacity of the cable
m㎡ ㎜ ㎜ ㎜ ㎏/㎞ Ω/㎞ ≧MΩ/㎞ in the air (A) directly buried in the soil (A)
3 x 10 3.80 0.70 1.50 14.60 260 3.0800 0.5230 50 60
3 x 16 4.80 0.70 1.50 16.50 340 1.9100 0.4310 65 80
3×25 6.00 0.90 2.00 20.80 470 1.2000 0.4440 90 100
3 x 35 7.00 0.90 2.00 23.20 600 0.8680 0.3790 110 120
3 x 50 8.40 1.00 2.00 26.40 730 0.6410 0.3550 130 140
3 x 70 10.00 1.10 2.00 29.90 970 0.4430 0.3350 1780 175
3×95 11.60 1.10 2.00 33.30 1240 0.3200 0.2900 205 210
3×120 13.00 1.20 2.50 37.80 1540 0.2530 0.2820 240 235
3 x 150 14.60 1.40 2.50 41.70 1940 0.2060 0.2940 275 265
3 x 185 16.20 1.60 2.50 44.60 2248 0.1640 0.3030 320 301
3 x 240 18.40 1.70 2.50 50.10 2723 0.1250 0.2830 385 355
3×300 20.60 1.80 3.00 55.60 3218 0.1000 0.2630 450 409
3×400 23.80 2.00 3.00 61.60 3693 0.0778 0.2430 515 463
YJHLV (TC90) 0.6/1KV (3+1) core crosslinked polyethylene insulated polyvinyl sheathed aluminum alloy power cable

Conductor section Conductor diameter Insulation thickness sheath thickness Cable Outer diameter Cable weight 20 ° C Xhui Aluminum alloy conductor DC resistance Insulation resistance Current carrying capacity of the cable
m㎡ ㎜ ㎜ ㎜ ㎏/㎞ Ω/㎞ ≧MΩ/㎞ in the air (A) directly buried in the soil (A)
3 x 16+1 x 10 4.80 0.70 1.50 17.50 407 1.9100 0.4310 70 90
3×25+1×16 6.00 0.90 2.00 21.80 566 1.2000 0.4440 105 120
3×35+1×16 7.00 0.90 2.00 23.80 683 0.8680 0.3790 130 140
3 x 50+1 x 25 8.40 1.00 2.00 27.40 849 0.6410 0.3550 160 170
3×70+1×35 10.00 1.00 2.00 31.00 1123 0.4430 0.3350 203 203
3 x 95+1 x 50 11.60 1.10 2.50 35.80 1473 0.3200 0.2900 255 250
3×120+1×70 13.00 1.20 2.50 39.70 1821 0.2530 0.2820 300 285
3 x 150+1 x 70 14.60 1.40 2.50 42.90 2199 0.2060 0.2940 350 320
3×185+1×95 16.20 1.60 3.00 47.40 2696 0.1640 0.3030 376 382
3×240+1×120 18.40 1.70 3.00 52.70 3408 0.1250 0.2830 435 439
3 x 300+1 x 150 20.60 1.80 3.50 58.00 4401 0.1000 0.2630 484 489
3×400+1×185 23.80 2.00 3.50 63.50 5590 0.0778 0.2430 555 561

YJHLV (TC90) 0.6/1KV (3+2) core crosslinked polyethylene insulated polyvinyl sheathed aluminum alloy power cable

Conductor section Conductor diameter Insulation thickness sheath thickness Cable Outer diameter Cable weight 20 ° C Xhui Aluminum alloy conductor DC resistance Insulation resistance Current carrying capacity of the cable
m㎡ ㎜ ㎜ ㎜ ㎏/㎞ Ω/㎞ ≧MΩ/㎞ in the air (A) directly buried in the soil (A)
3 x 16+2 x 10 4.80 0.70 1.80 21.68 510 1.9100 0.4310 72 85
3 x 25+2 x 16 6.00 0.90 1.80 25.88 707 1.2000 0.4440 85 92
3×35+2×16 7.00 0.90 1.80 27.88 821 0.8680 0.3790 102 110
3 x 50+2 x 25 8.40 1.00 2.00 32.08 1149 0.6410 0.3550 123 131
3×70+2×35 10.00 1.10 2.10 36.88 1513 0.4430 0.3350 152 159
3×95+2×50 11.60 1.10 2.30 41.76 1687 0.3200 0.2900 184 190
3×120+2×70 13.00 1.20 2.50 46.01 2106 0.2530 0.2820 213 216
3×150+2×70 14.60 1.40 2.60 51.32 2512 0.2060 0.2940 241 240
3×185+2×95 16.20 1.60 2.80 56.89 3097 0.1640 0.3030 277 271
3×240+2×120 18.40 1.70 3.00 62.89 4154 0.1250 0.2830 325 312
3 x 300+2 x 150 20.60 1.80 3.20 70.02 5080 0.1000 0.2630 361 346
3×400+2×185 23.80 2.00 3.40 76.87 6446 0.0778 0.2430 424 410

YJHLV (TC90) 0.6/1KV four-core crosslinked polyethylene insulated polyvinyl sheathed aluminum alloy power cable

Conductor section Conductor diameter Insulation thickness sheath thickness Cable Outer diameter Cable weight 20 ° C Xhui Aluminum alloy conductor DC resistance Insulation resistance Current carrying capacity of the cable
m㎡ ㎜ ㎜ ㎜ ㎏/㎞ Ω/㎞ ≧MΩ/㎞ in the air (A) directly buried in the soil (A)
4×10 3.80 0.70 1.50 15.90 327 3.0800 0.5230 49 59
4 x 16 4.80 0.70 2.00 19.10 428 1.9100 0.4310 64 78
4×25 6.00 0.90 2.00 22.70 594 1.2000 0.4440 87 98
4×35 7.00 0.90 2.00 25.40 739 0.8680 0.3790 120 130
4 x 50 8.40 1.00 2.00 29.0

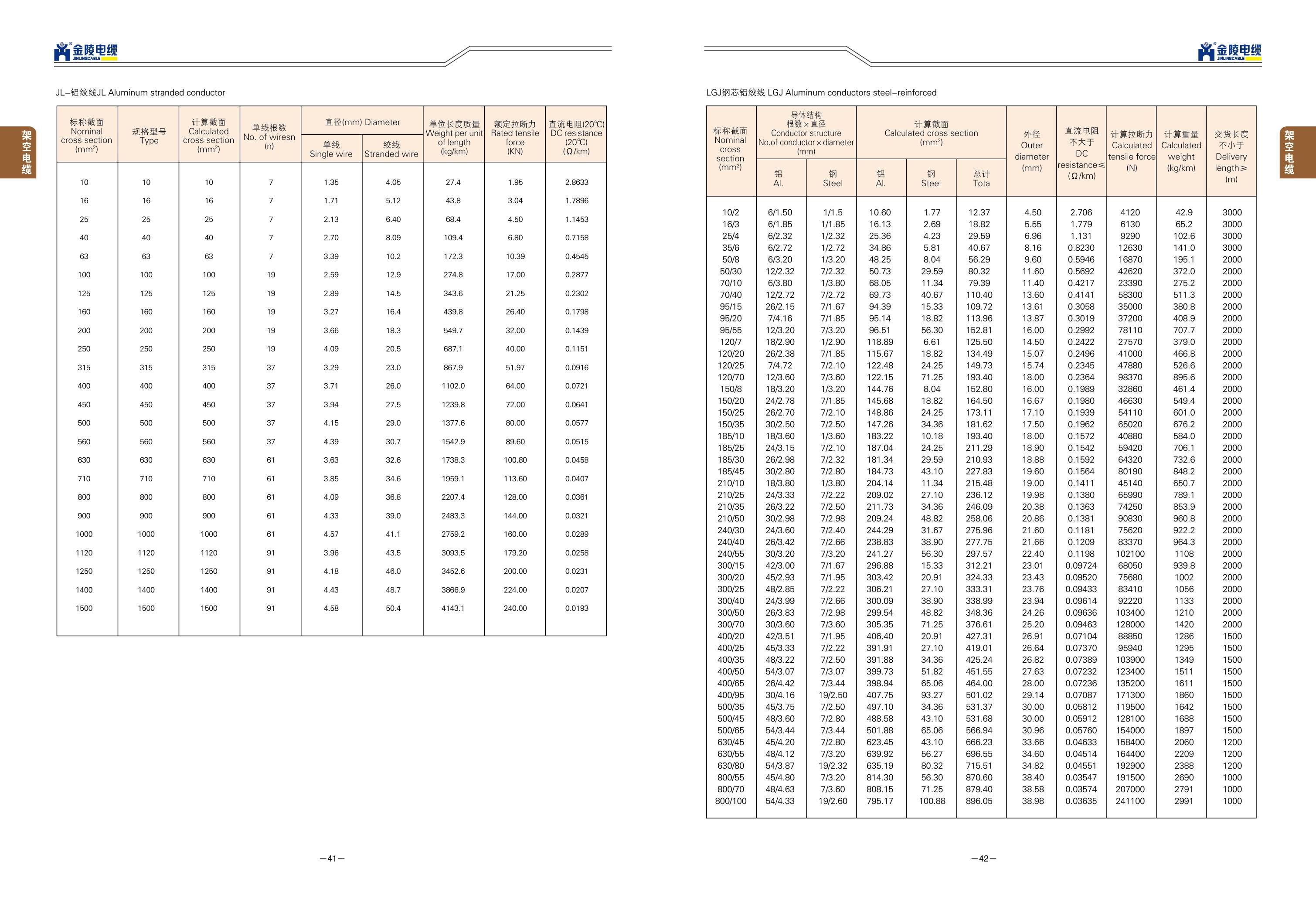

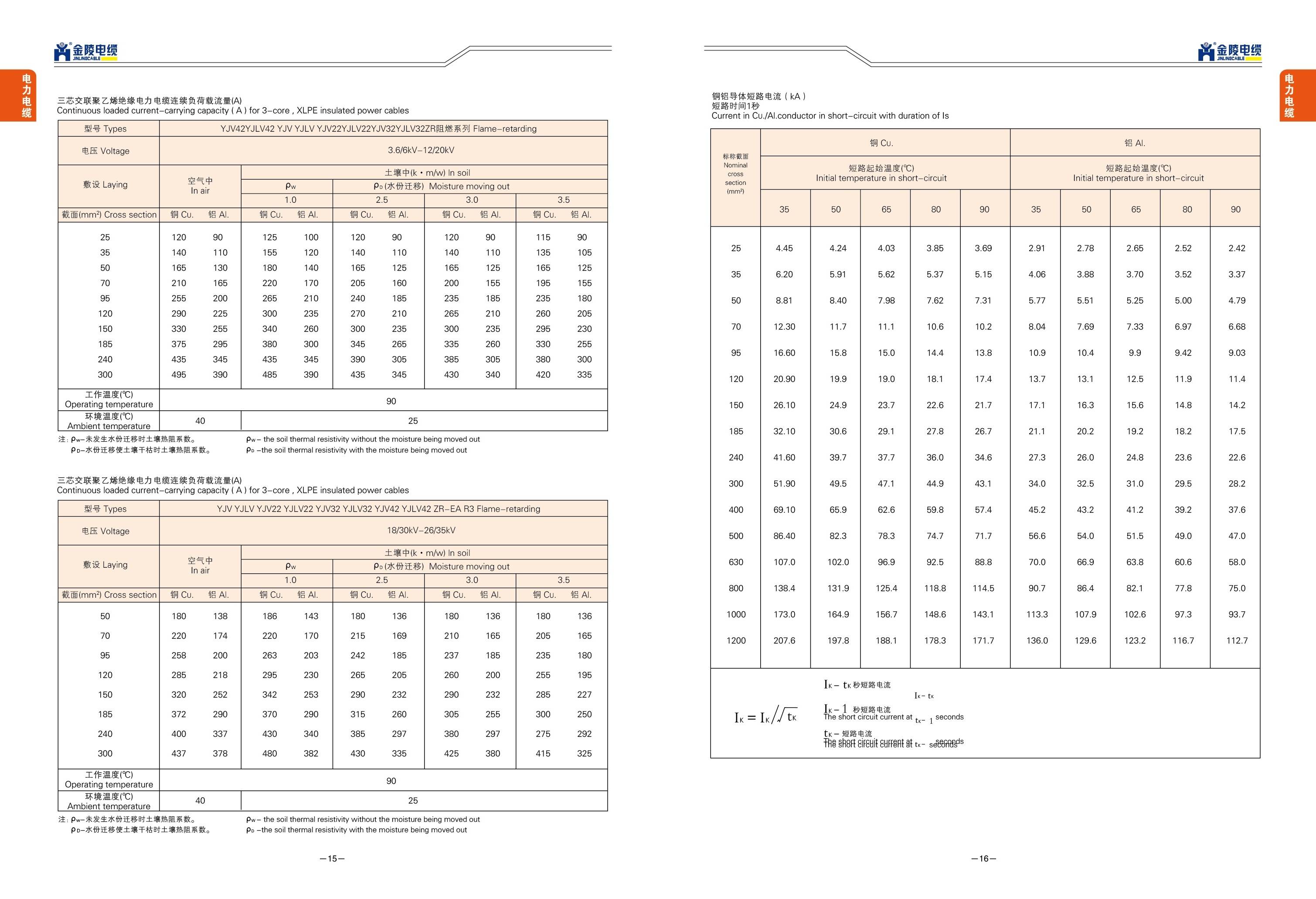

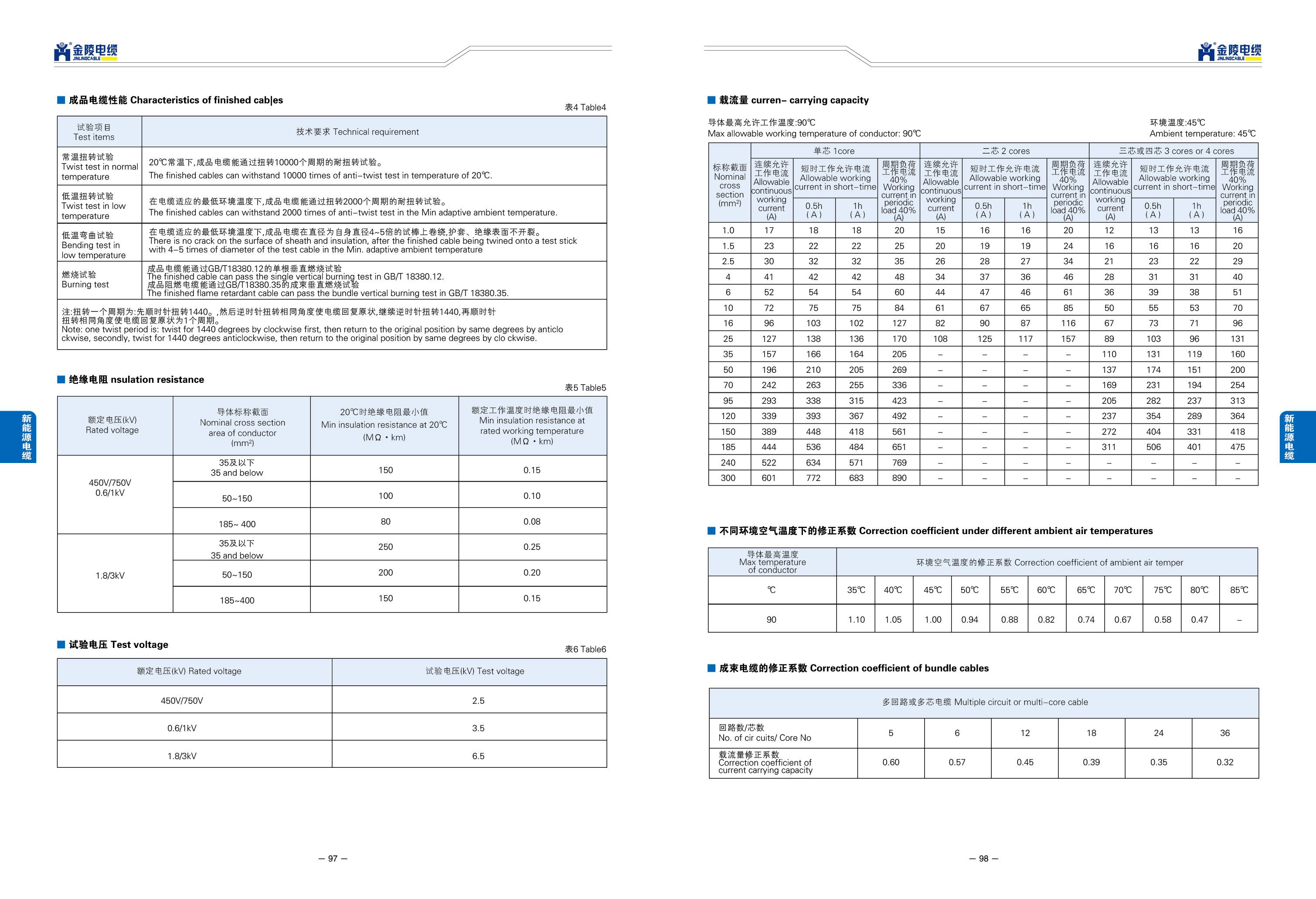

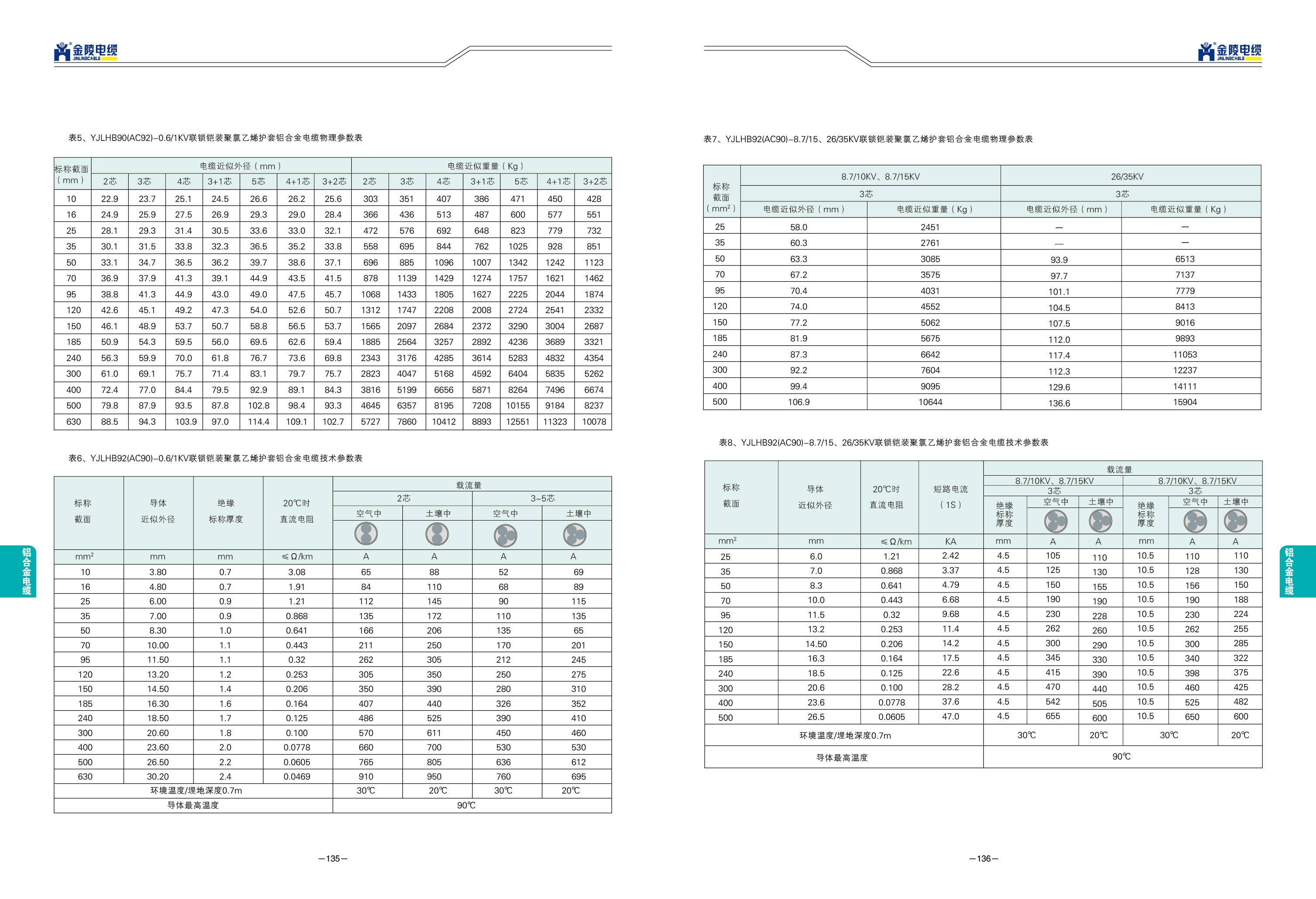

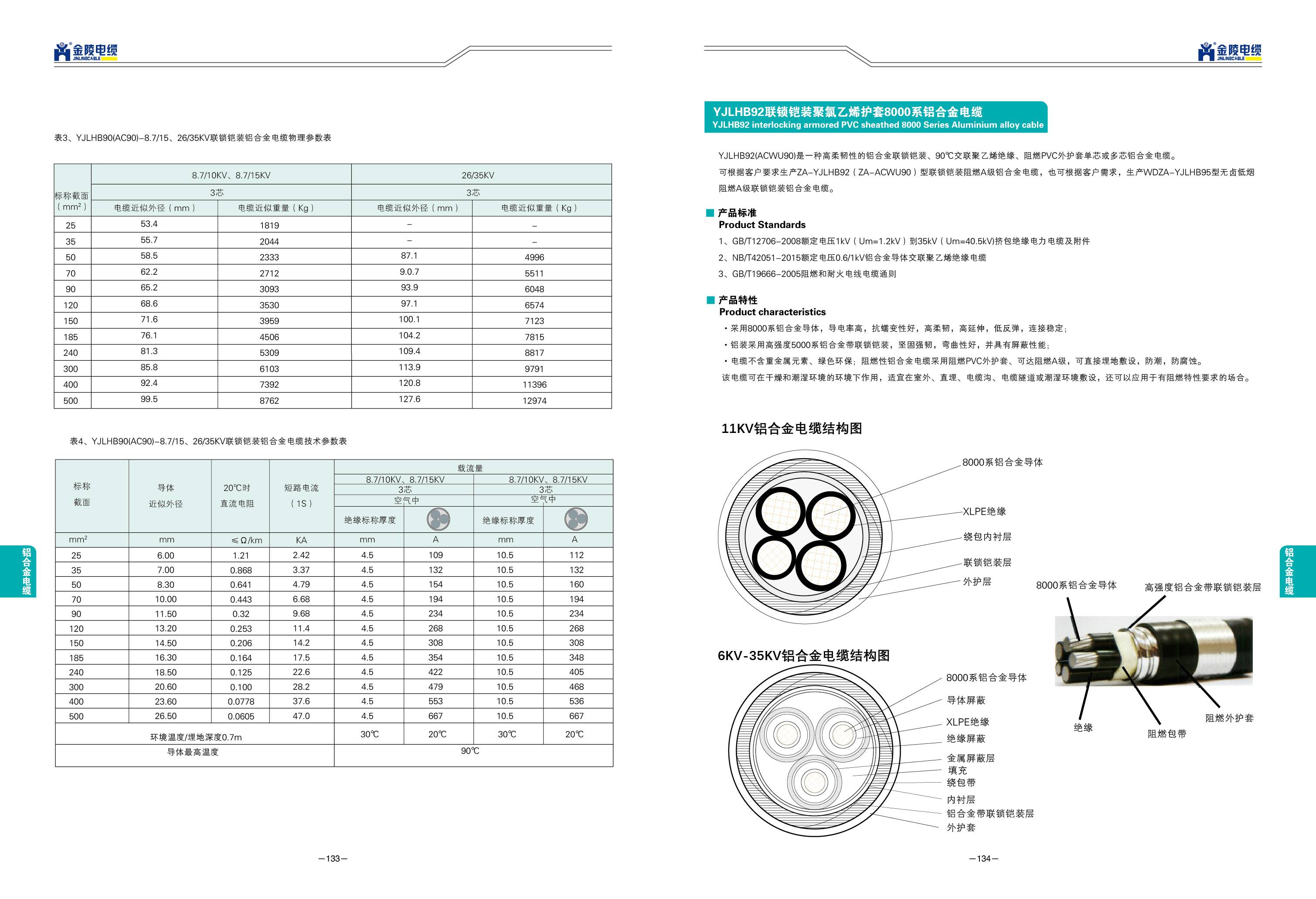

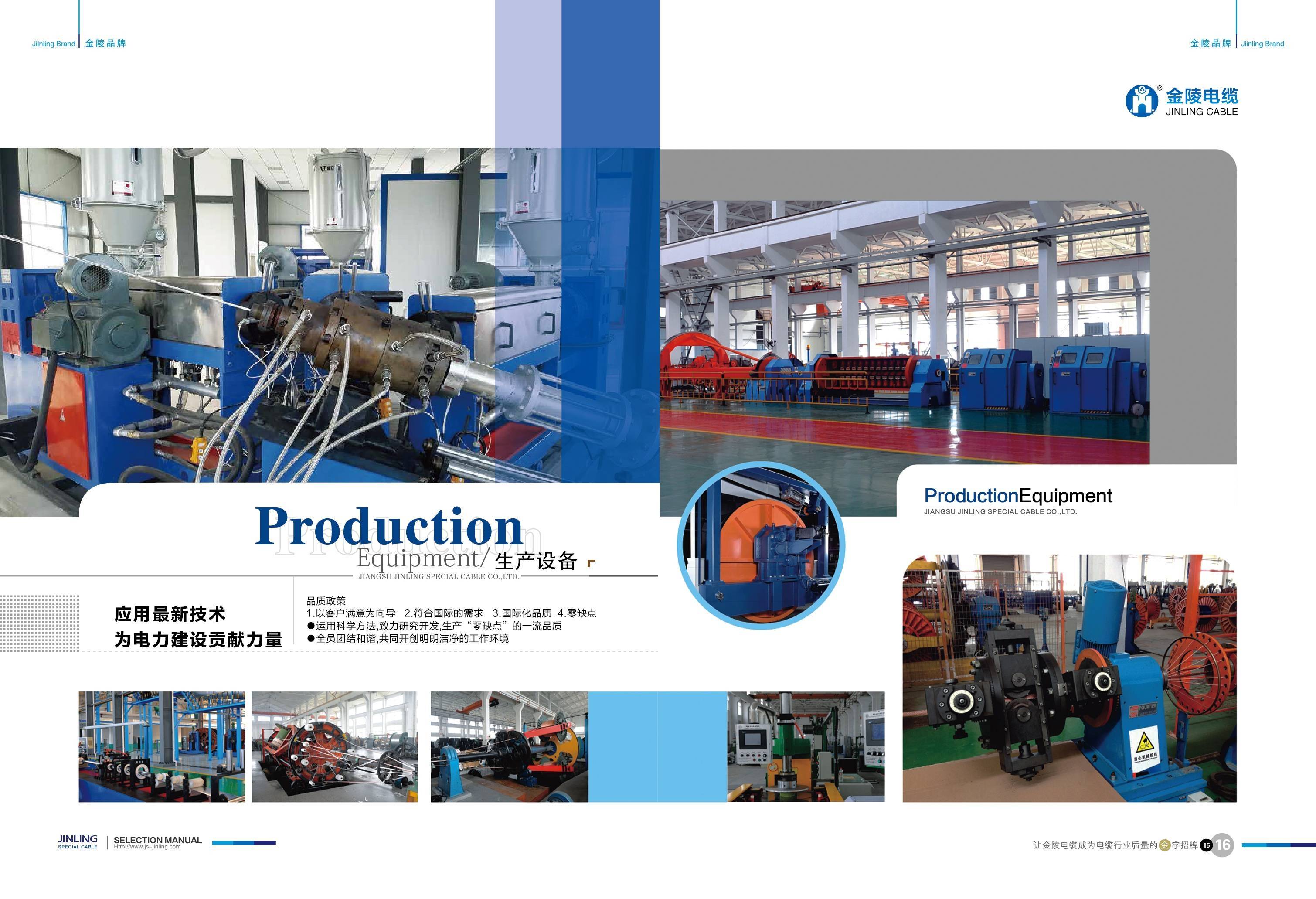

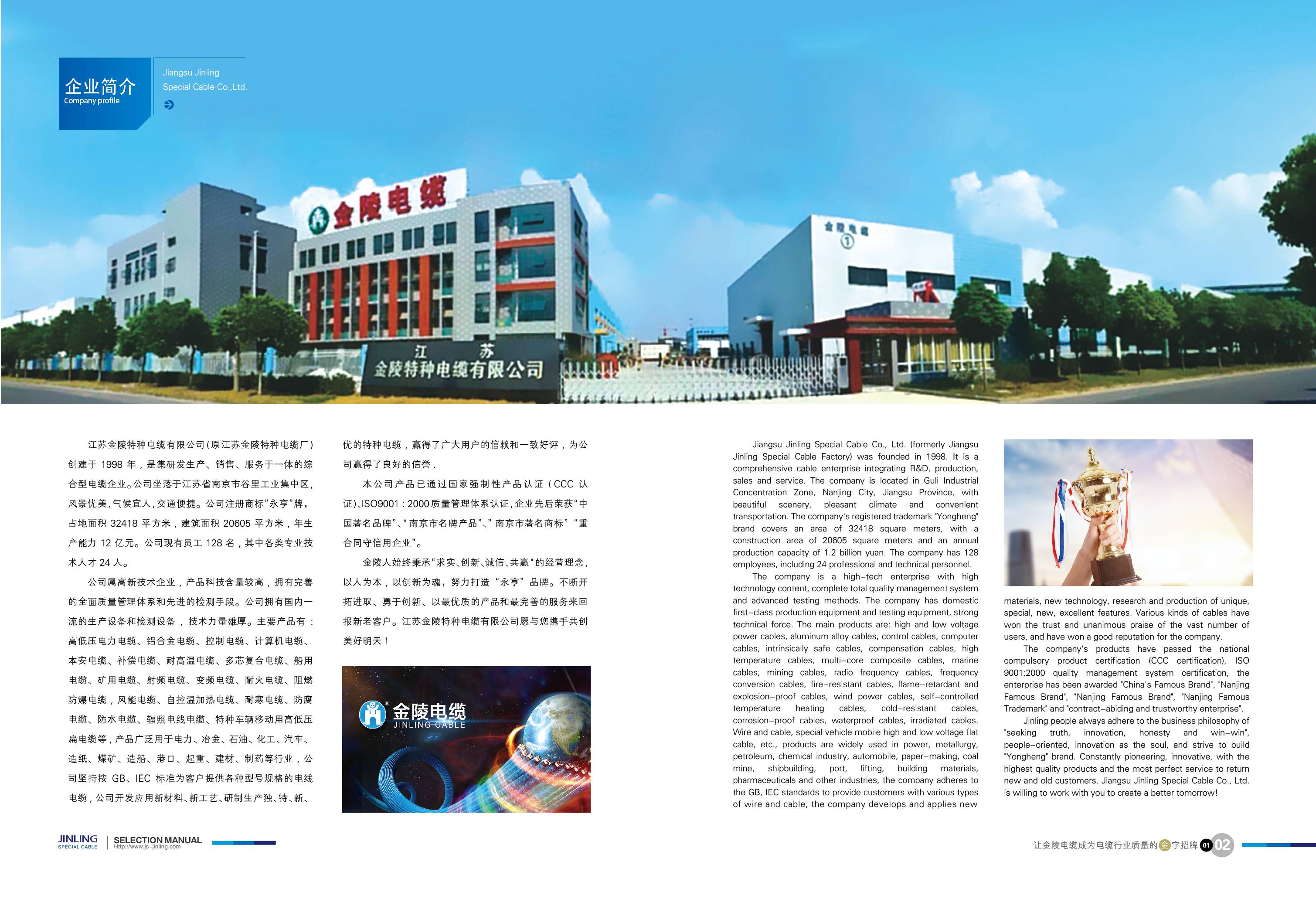

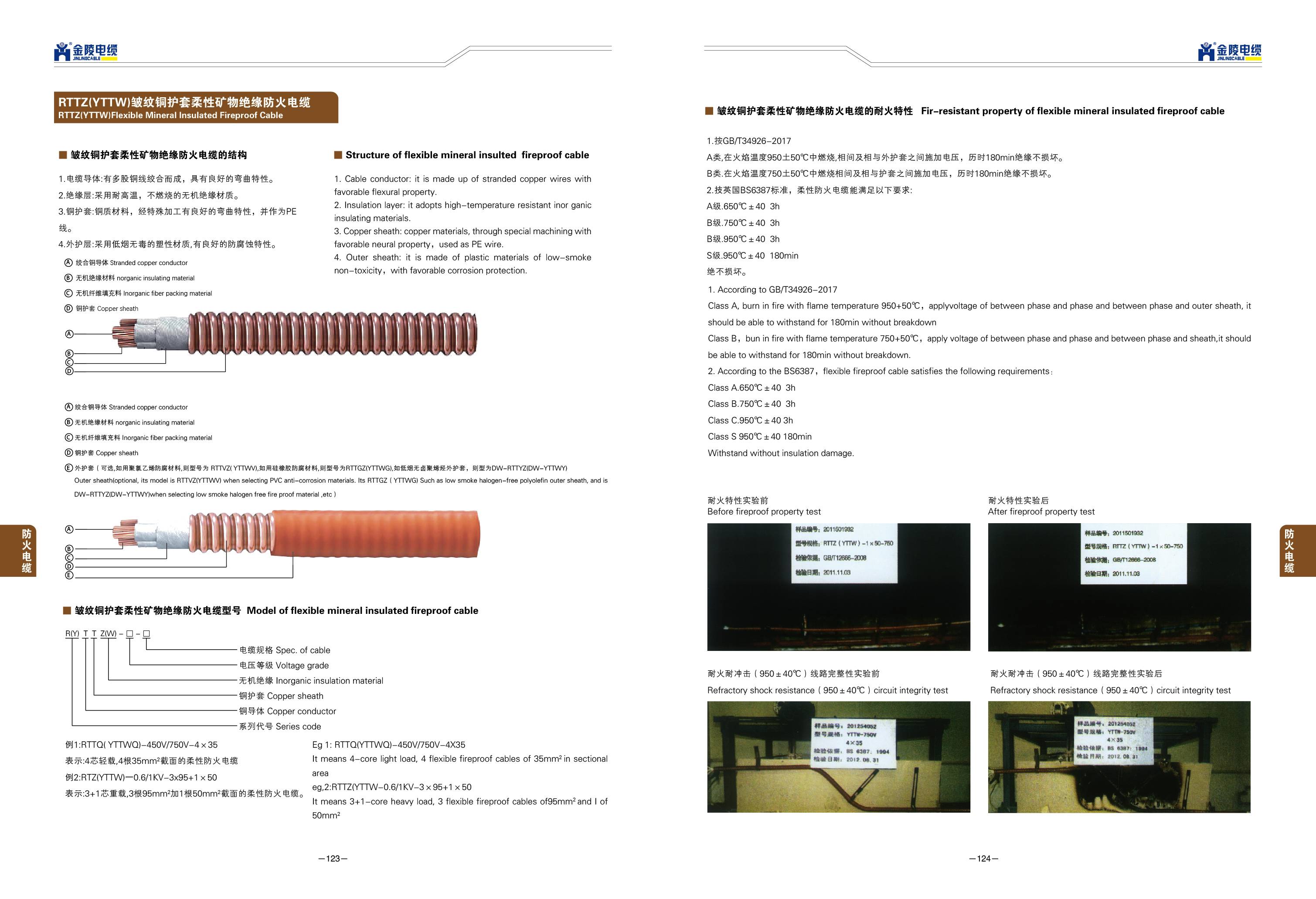

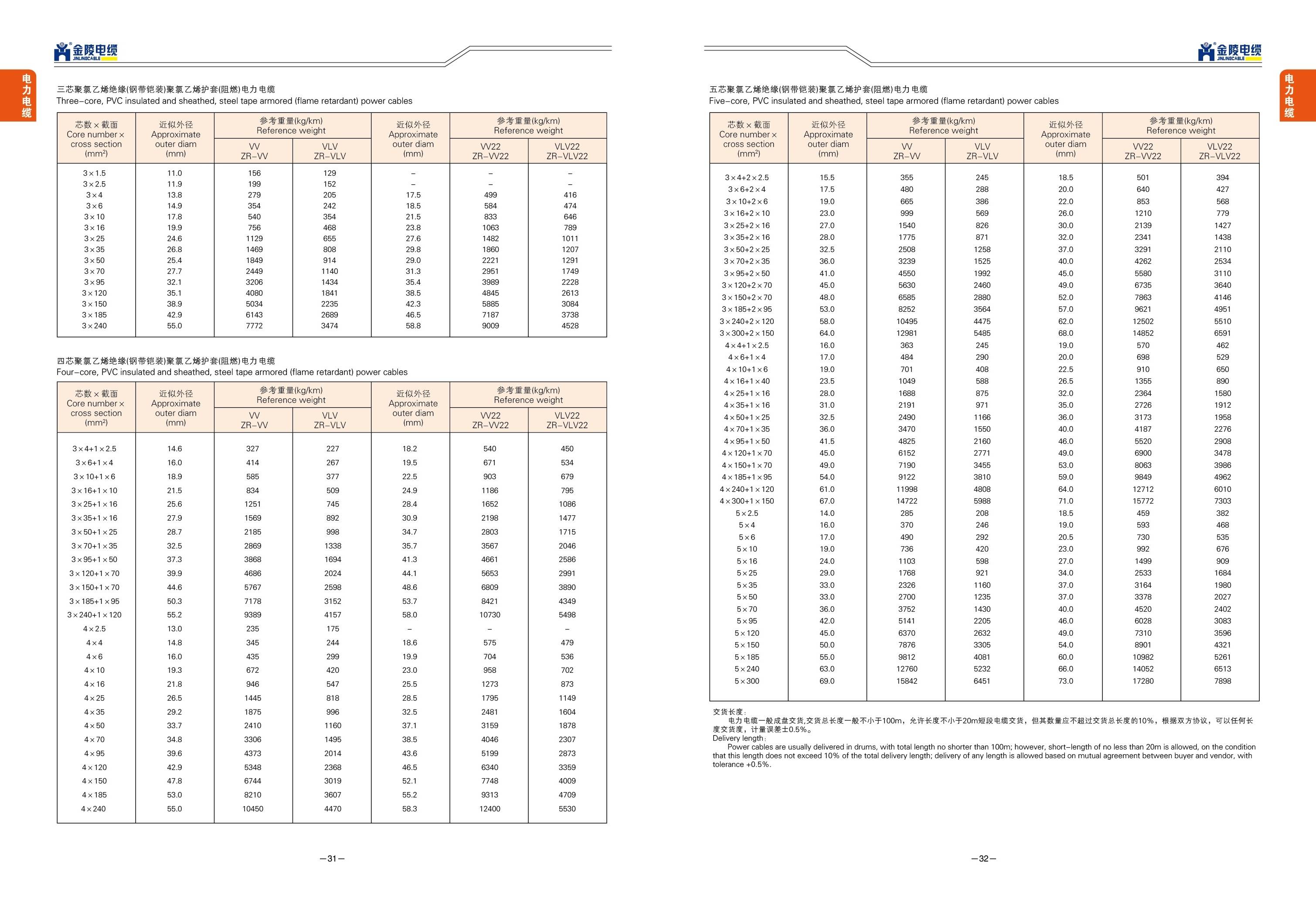

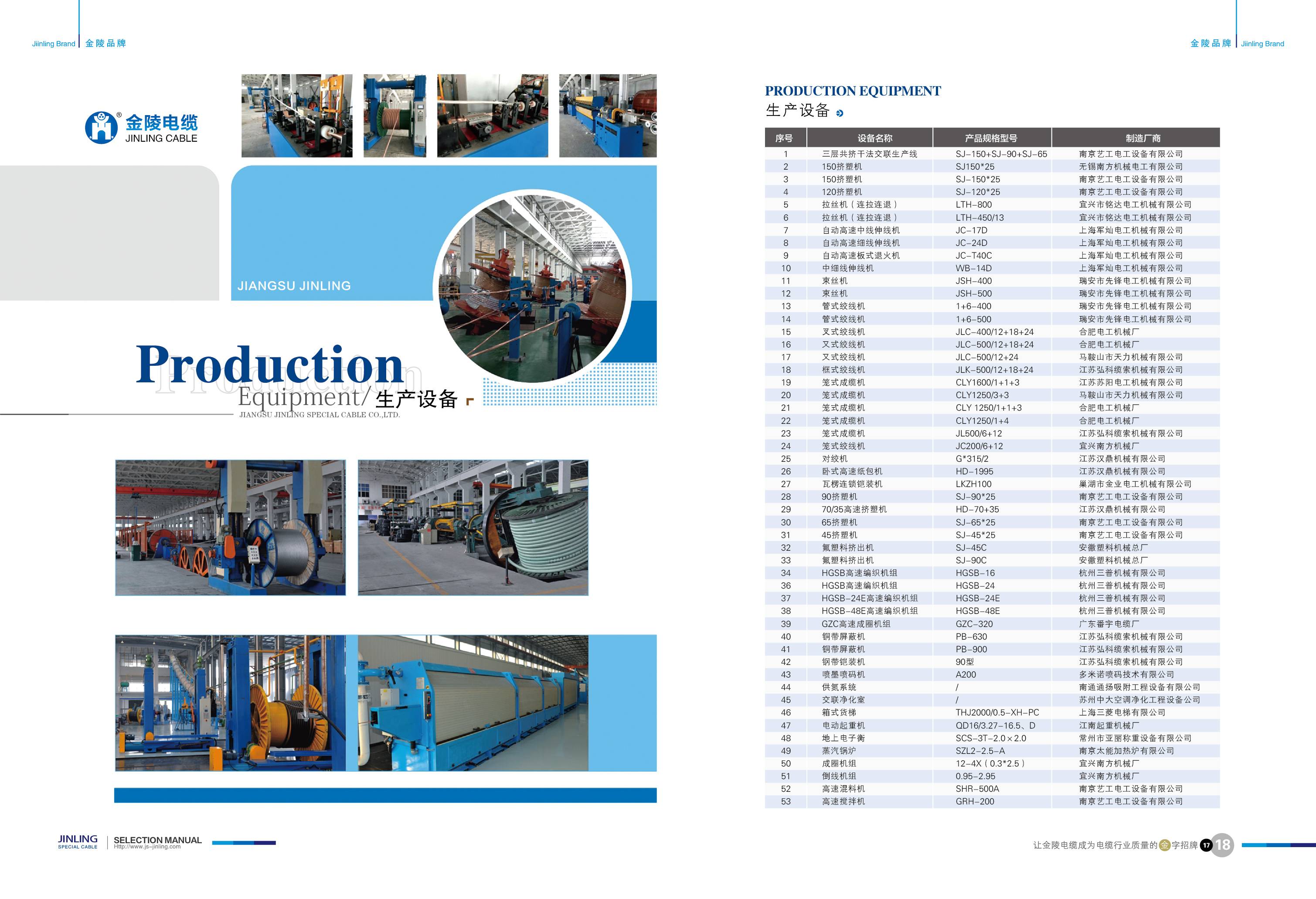

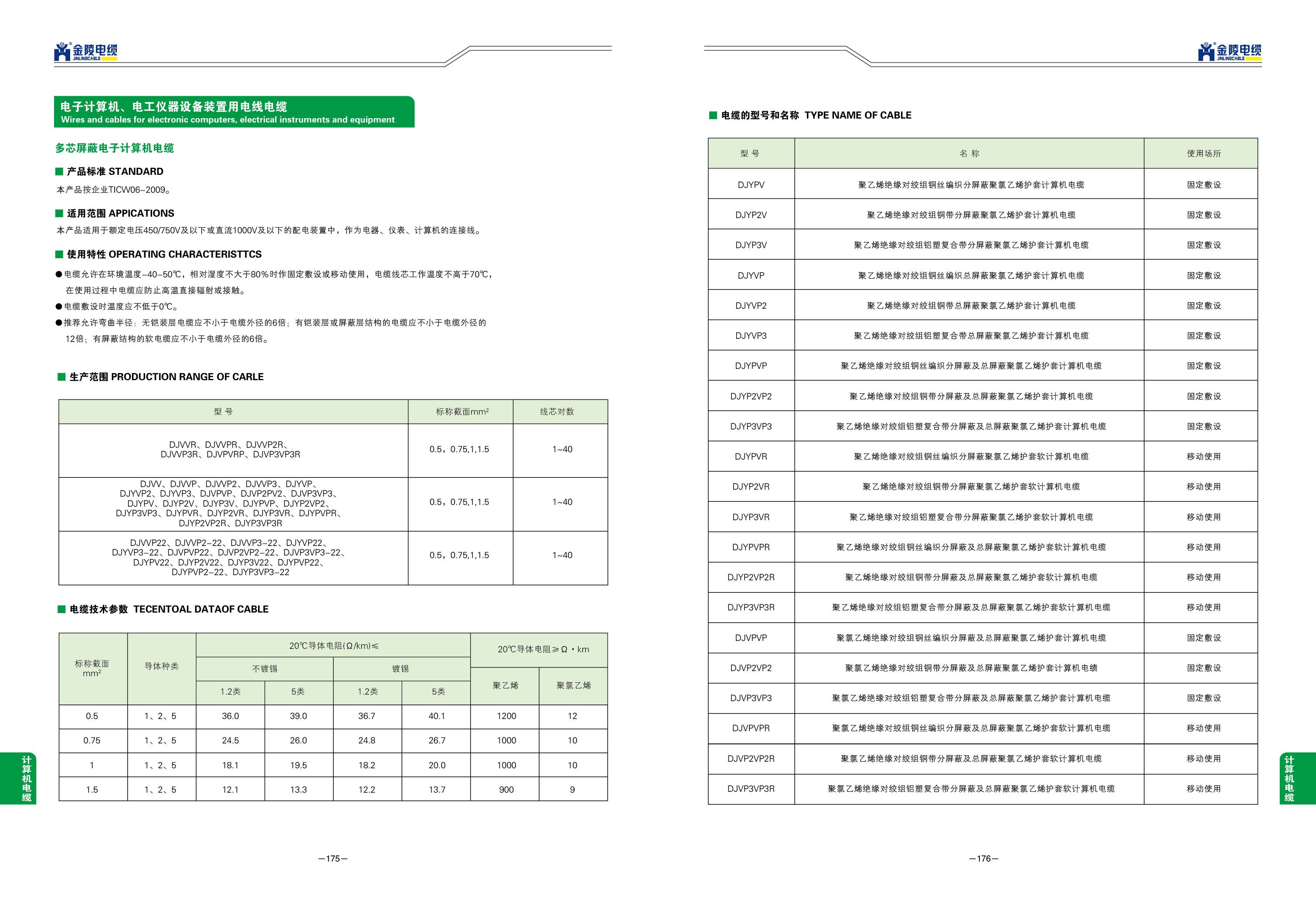

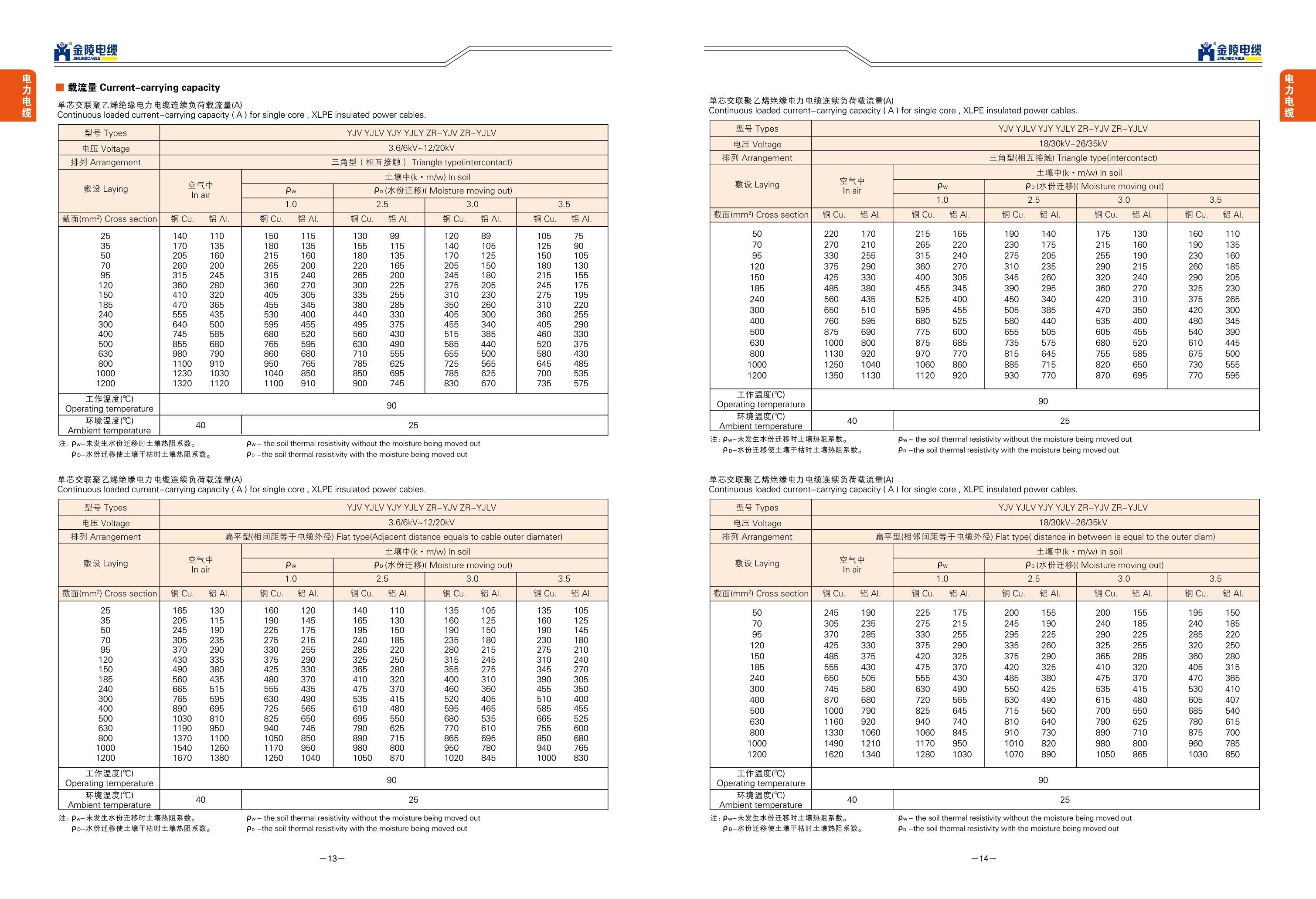

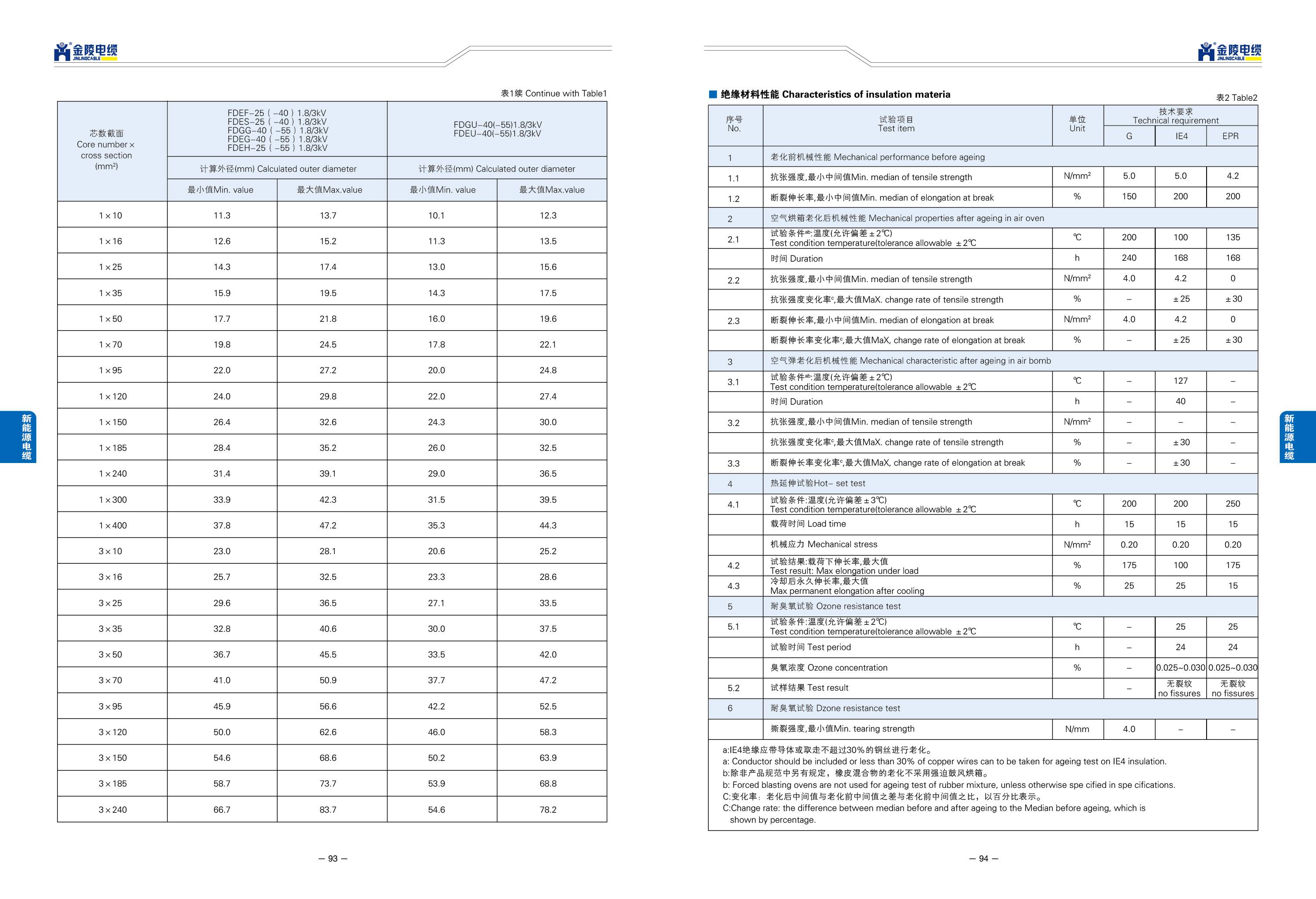

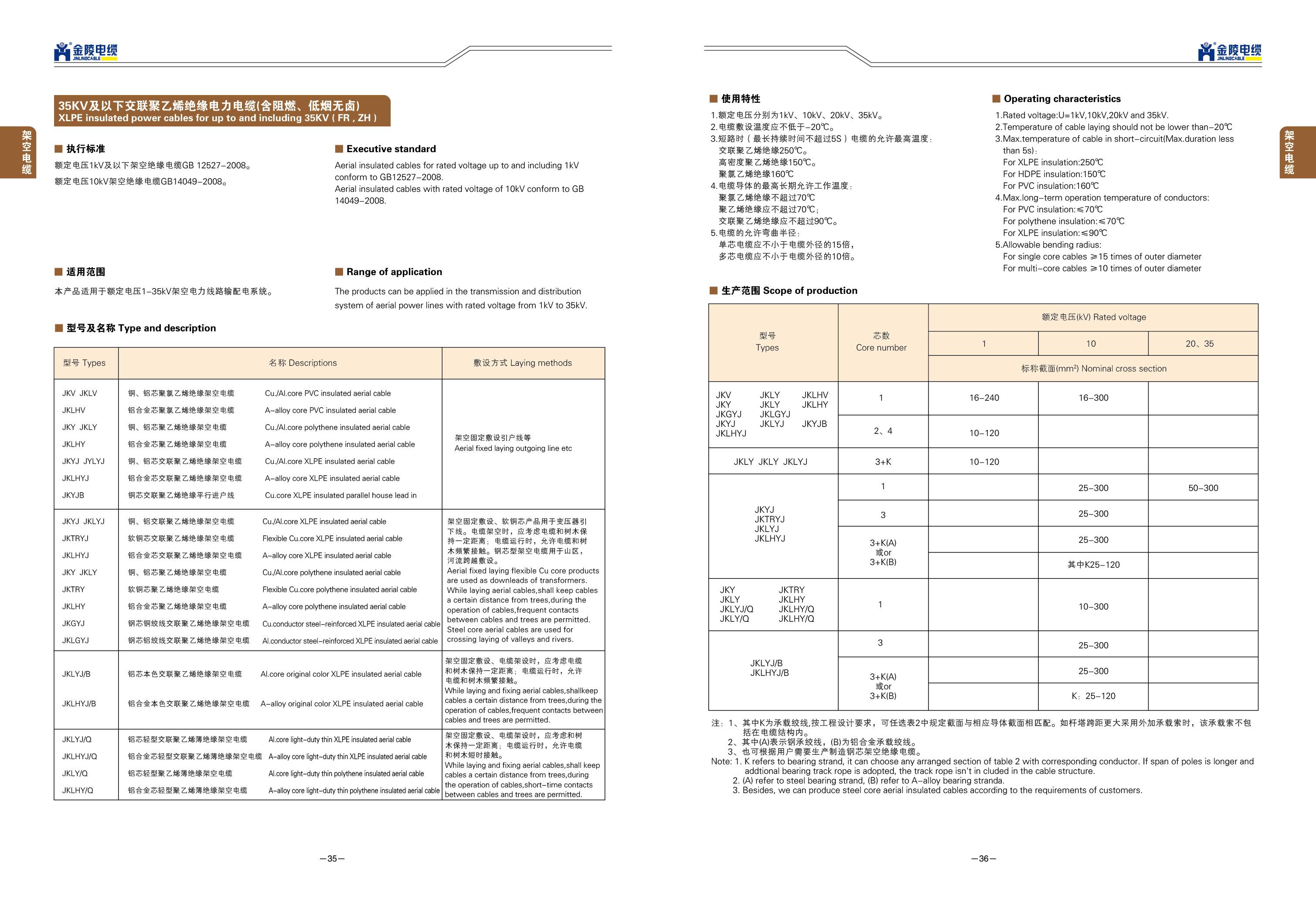

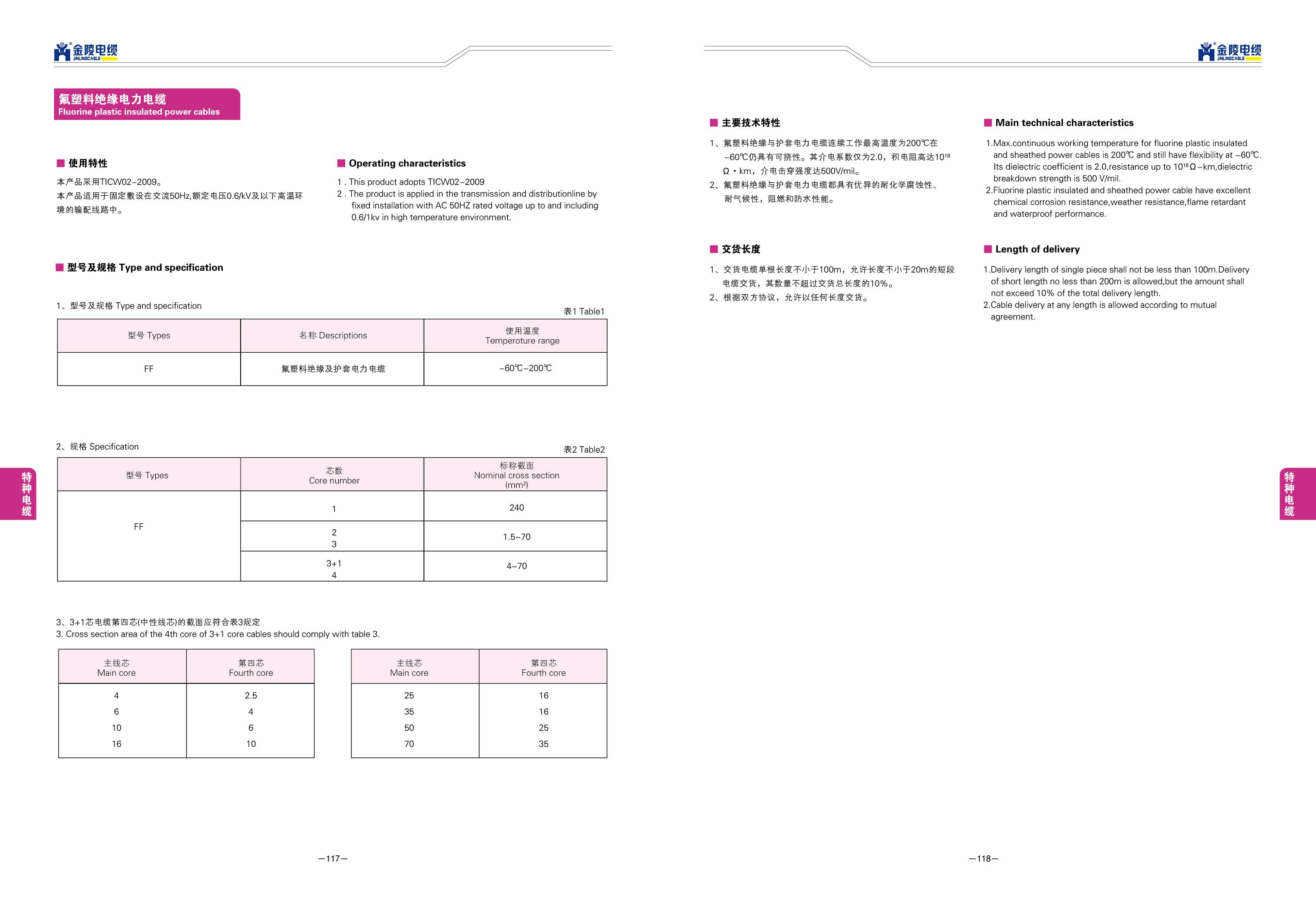

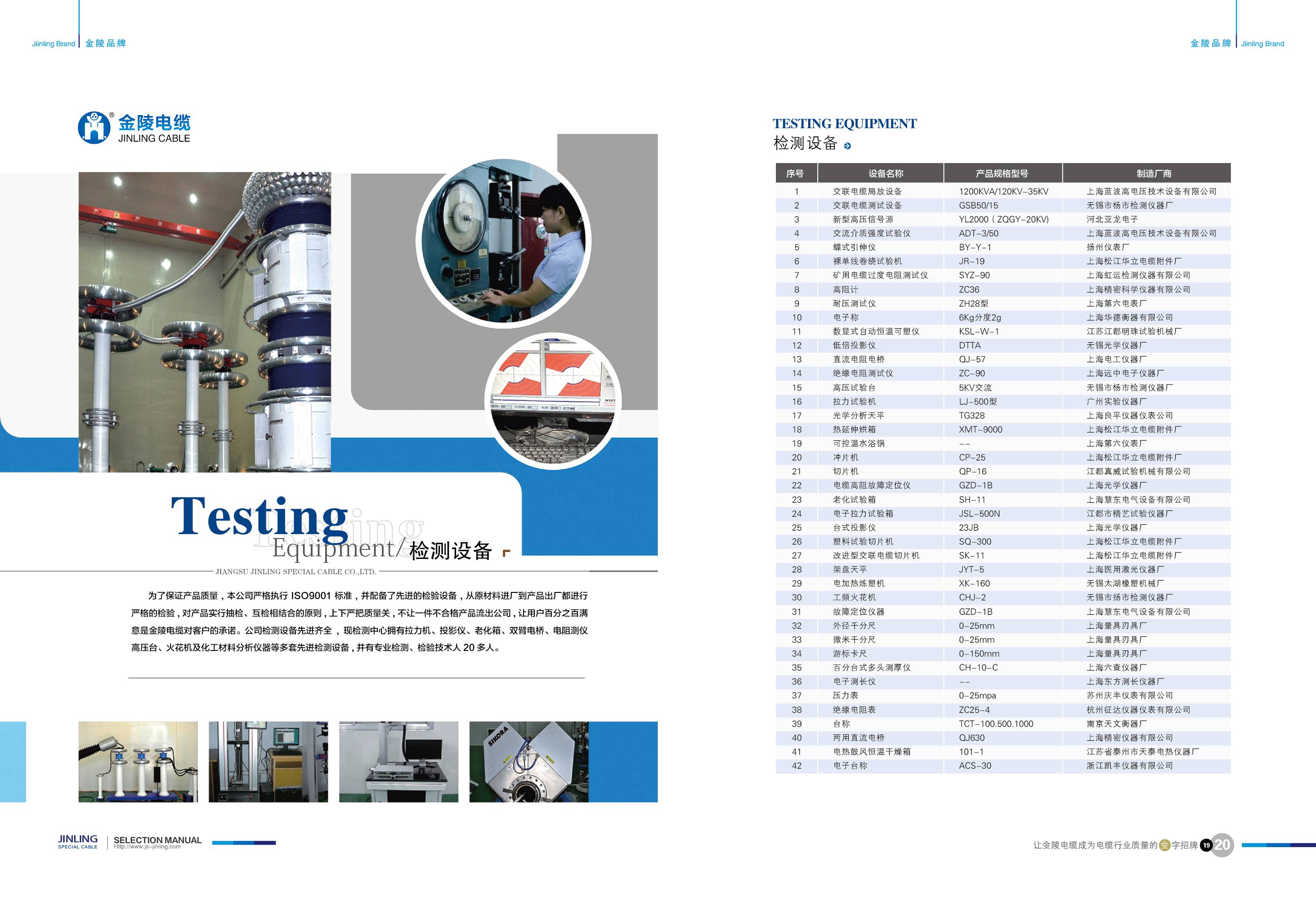

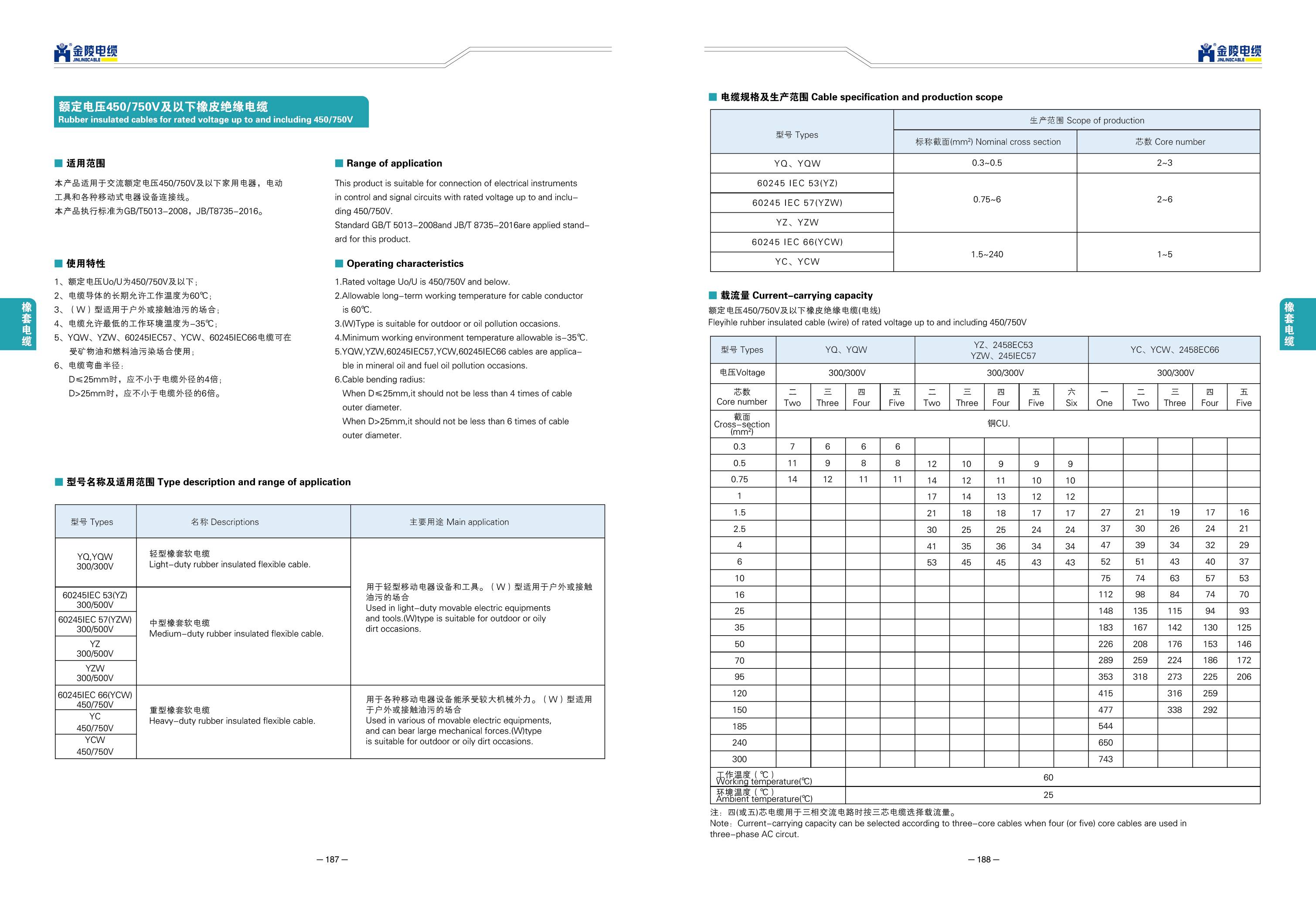

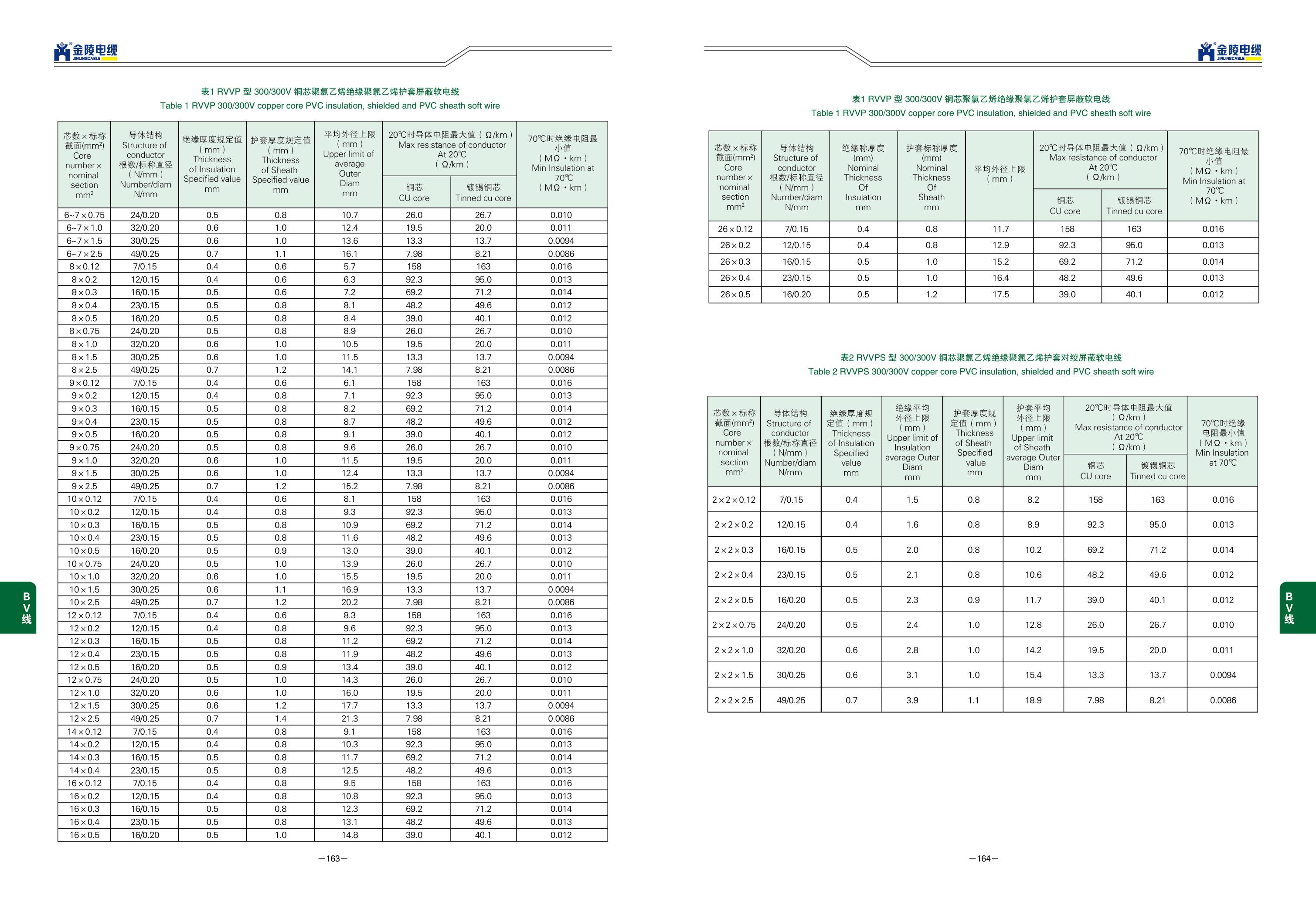

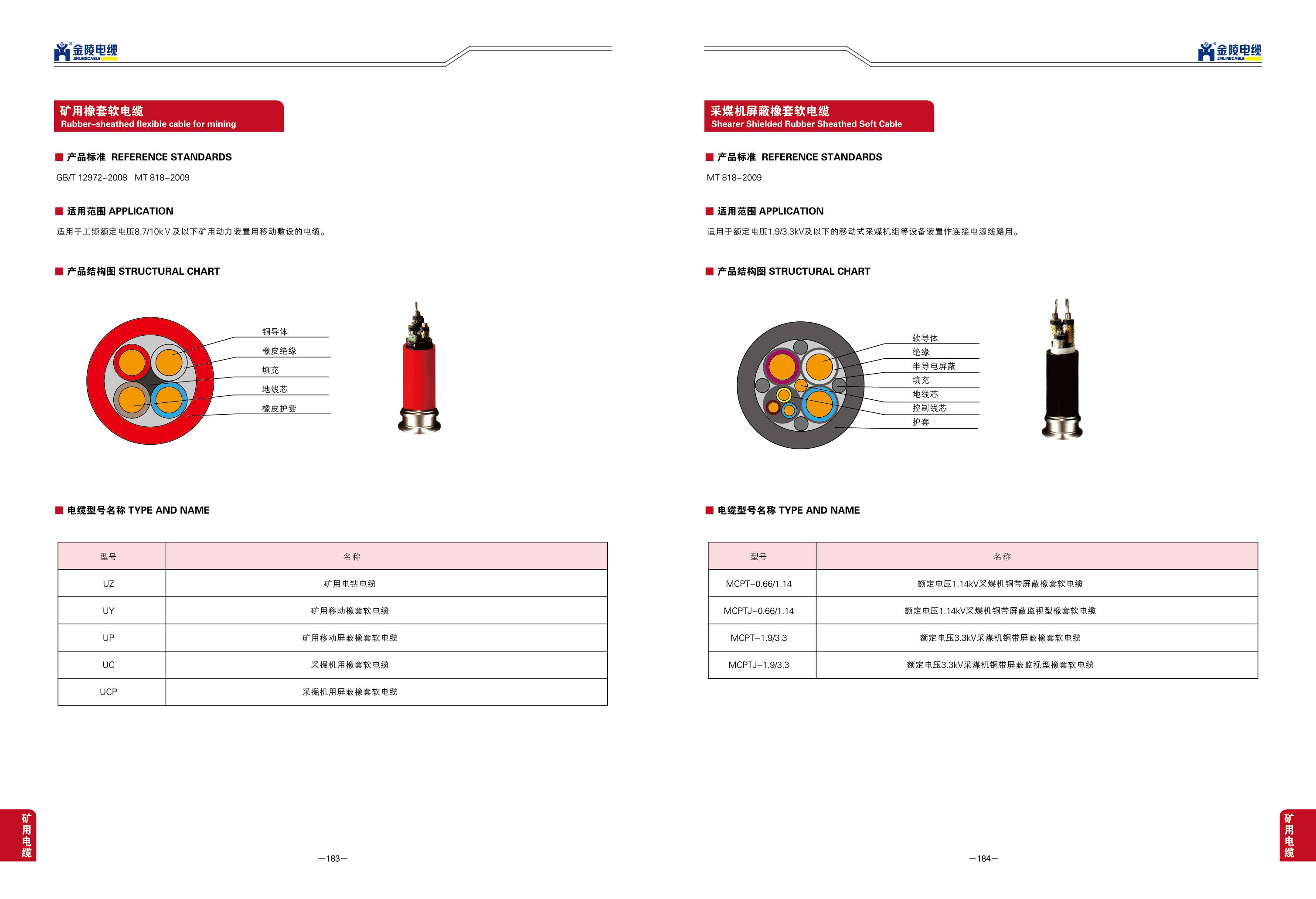

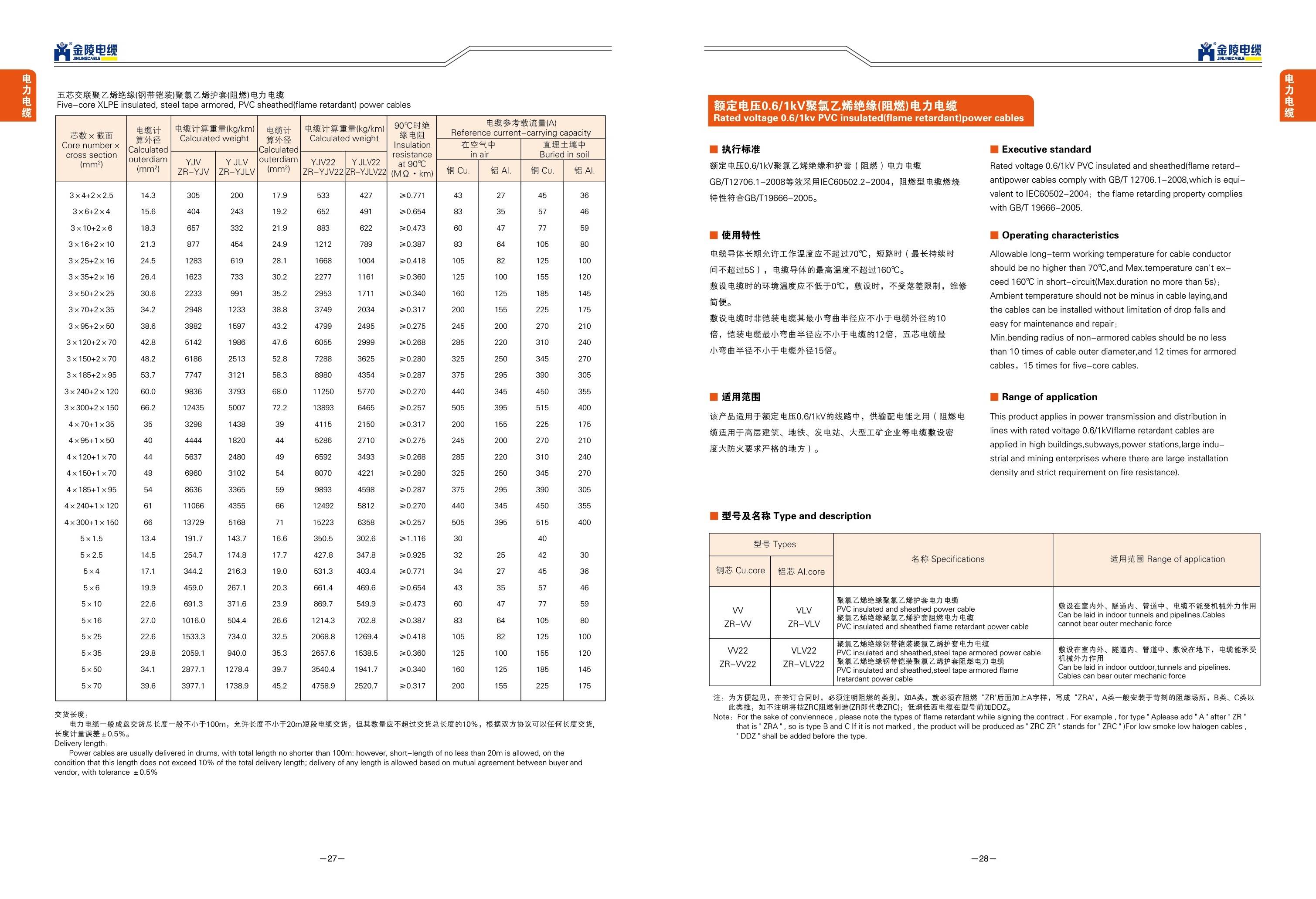

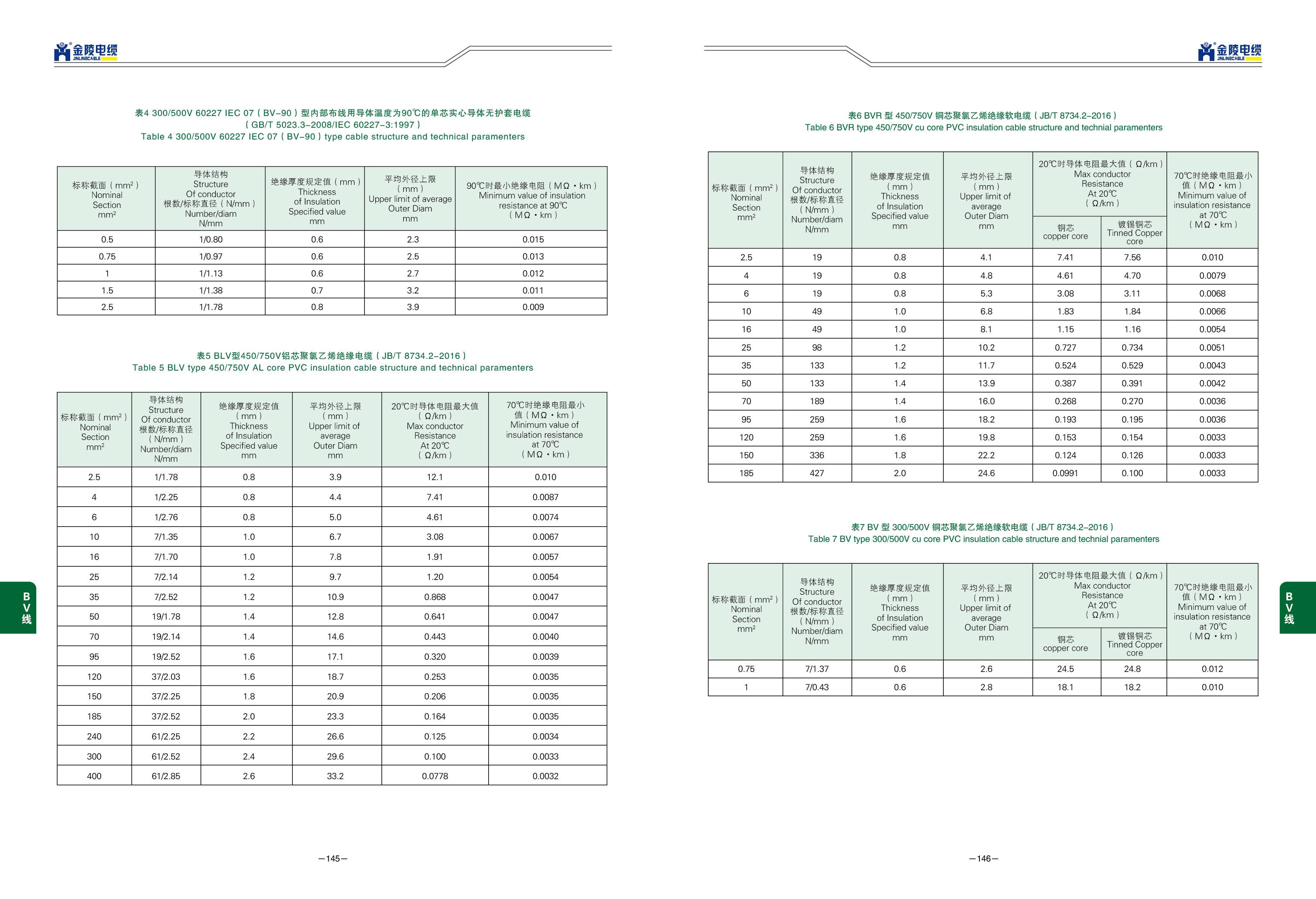

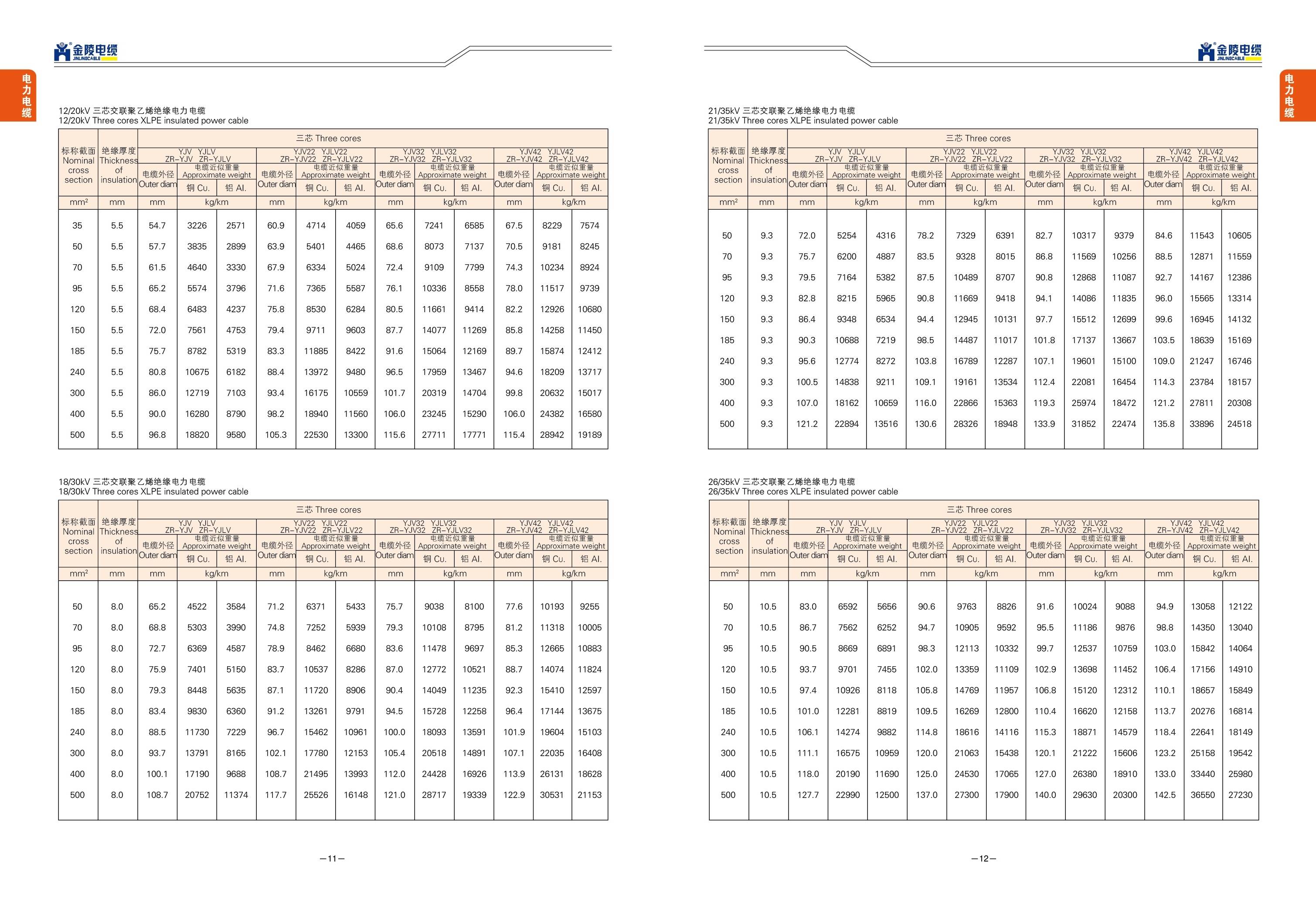

Jiangsu Jinling Cable Co., LTD. (formerly Jiangsu Jinling Special Cable Co., LTD.) is an enterprise specializing in the production and sale of wire and cable. The company is located in the Guli industrial concentration area, Jiangning District, Nanjing, with convenient transportation and superior environment. The company was founded in 1998, advanced production equipment, good process equipment, strong technical force. Covers an area of 32,418.69 square meters, construction area of 20,530 square meters, 103 employees, including professional and technical personnel 68 people, engineers, senior engineers 27 people. It has 188 sets (sets) of production equipment for 35kv three-layer coextruded dry cross-linking, extrusion, cable forming, stranding, weaving, local discharge, wire drawing and other processes, and 36 sets (sets) of testing equipment. The company takes wire and cable as the leading products, developing and producing high and low temperature, high and low frequency, multi-core composite, shielding and fire-resistant, environmental protection flame-retardant and explosion-proof special cables. The main products are: 35kv and below three-layer co-extruded cross-linked power cables, 10kv and vaguely overhead insulated cables, 1.8/3kv and below extruded insulated power cables, control cables, electrical equipment wire and cable, power cable, steel core overhead stranded cable and other special types of cables.
