Name: Laser Welding Machine
Brand: X-photonics
Price: price negotiable
Availability: InStock

1 / 5

Laser Welding Machine

Price：

price negotiable

Brand Name：

X-photonics

Country Region：

China

Model No：

Post Requirements

X-photonics icon

Country： China

Main Products： Blue Laser Blue Laser Module Fiber Coupled High Power Laser Pump Infrared Air Cooled Diode Laser Laser Cleaning Machine Laser Welding Machine

Price：

price negotiable

Brand Name：

X-photonics

Country Region：

China

Model No：

Post Requirements

X-photonics icon

China

Main Products：

Blue Laser Blue Laser Module Fiber Coupled High Power Laser Pump Infrared Air Cooled Diode Laser Laser Cleaning Machine Laser Welding Machine

Product information

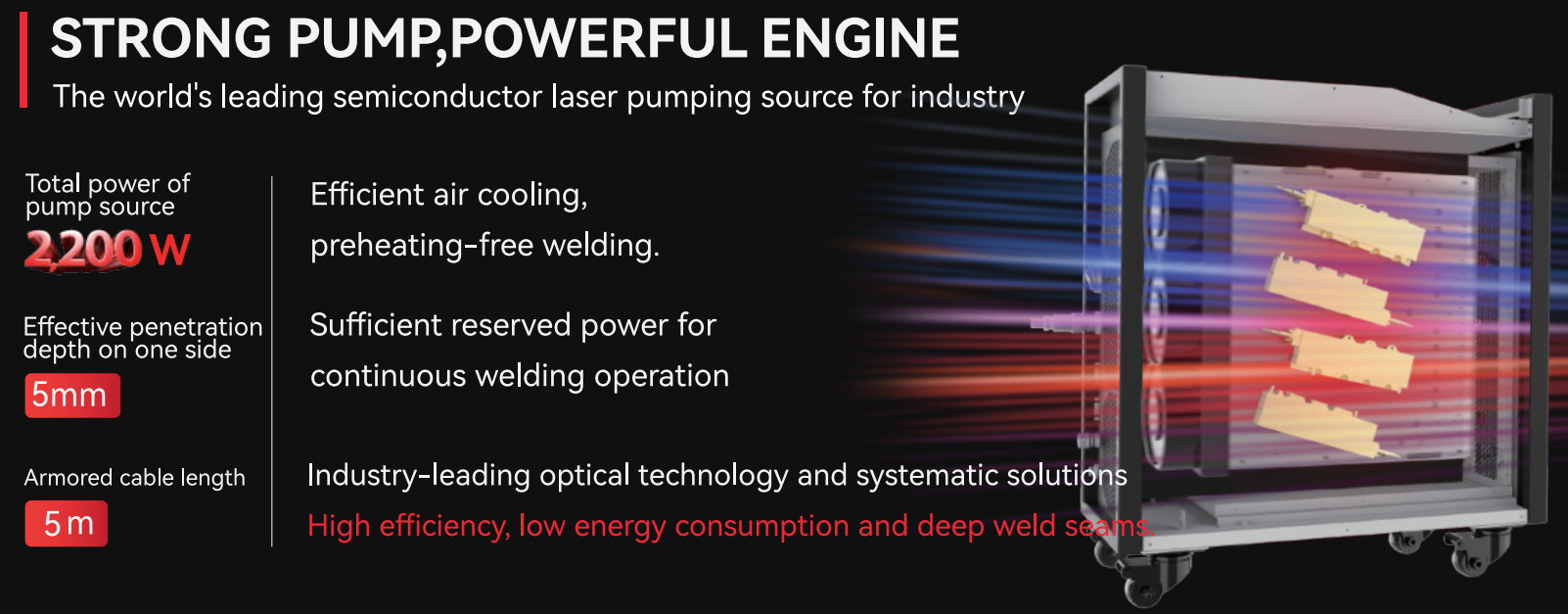

Product Features
The product employs a cutting-edge semiconductor laser module recently developed by XinhanLaser,,which boasts fully independent intellectual property rights. Assist with an highly efficient
advanced power management,central microprocessor unit,and human-engineered structural design,you can use at ease.
This machine emits laser of 1080nm wavelength with a 20μm core-diameter fiber.It has the advantages of stable power and wavelength,compact design,excellent reliability,easy to use,cost-effective good welding strength,smooth weld joint,etc.
Application Fields
This product can be used in the fields including automobile,advertising,metal fabrication shops furniture &appliance,maintenance and repair.

Welding Material	Stainless Steels	Carbon Steel	Galvanized Sheet	Aluminum	Brass	Copper
Depth of fusion on one side	5mm	5mm	5mm	4mm	3mm	2mm
Product Model	Overall Weight	Overall Volume	Overall Size	Working type	Laser swing	Input Voltage
X5	41kg	<0.1m³	620525255mm	Continuous and pulse	0-5mm	220 VAC

X-photonics

China

Brand Introduction

2017 Establishment of the company

2019 Recognized as a national high-tech enterprise

2020 Become a strategic supplier of leading laser companies in China

2021 Turnover $100 million +
High Power GaAS Semiconductor Laser Research Institute established
Xinghan Laser &Institute of Semiconductor, Chinese Academy of Sciences

2022 Delivery of 940nm pump batch for automotive grade LIDAR

Automotive-grade LIDAR 940nm pumps delivered in volume to fill the domestic technology gap in the field of high-reliability LIDAR light source

2023 Overcoming the technical difficulties of domestic 50W high-power semiconductor laser chips

Blue to infrared wavelengths, power from a few digits to several kilowatts, perfect direct output semiconductor laser system on the ground

2024 Layout the "Laser Technology Ecological Industry Chain"

Successfully researched and developed a new generation of more efficient，stable and reliable laser welding solutions, and real batch delivery.

Shenzhen Xinghan Laser Technology Co.,ltd.

Company Introduction

Global Leader In The High-Power Semiconductor Laser Industry

The Semiconductor Laser Market Has Ranked Among The Top In The World For Many Years

X-Photonics was founded in Shenzhen in 2017 and is a leading domestic manufacturer of high-power semiconductor lasers. On average, over 30% of industrial lasers made in China are energized by X-Photonics pumps.With independent R&D capability throughout the entire laser industry chain, X-Photonics Laser can provide our customers with a set of comprehensive laser products and solutions accordingly.
