Product information

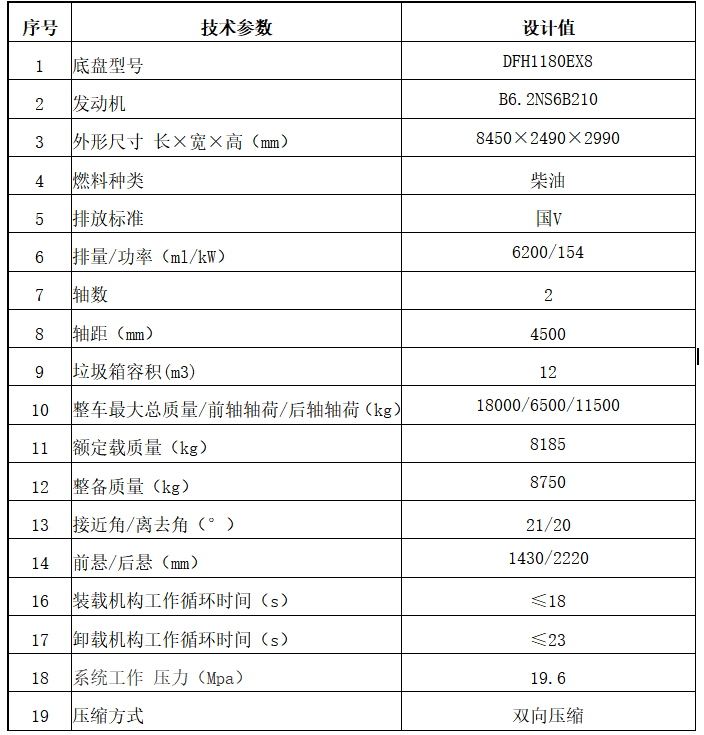

1、 Main technical parameters of the product
2、 Product Features
1. Adopting imported five valve, proximity switch, PLC electronic control system, integrated design of electromechanical and hydraulic systems, and bidirectional compression method, the garbage is compressed intensively while collecting, with a compression ratio of over 1:4.
2. The filler guide rail adopts a circular arc guide rail, which has the effect of secondary compression.
3. When the filler is lifted, the scraper can perform a secondary cleaning to ensure that there is no residual garbage during unloading.
4. The front door of the vehicle is fully sealed, and the integrated design of the filler and sewage tank completely solves the problem of secondary pollution caused by running, emitting, dripping, and leaking; Adopting a diversion type dedicated sewage collection device, the garbage and sewage squeezed out during the compression process are diverted to the sewage tank, preventing the leakage of sewage and odors.
5. The connection between the carriage and the filler adopts three barrier type sealing strips and an automatic locking hook device, which has superior sealing performance. The rear door uses pneumatic doors for easy operation.
6. The main components of the carriage are made of high-strength weather resistant steel plates, which have strong impact resistance; The sliding block of the push plate is made of nylon wear-resistant material, which reduces sliding resistance and wear of the motion pair, while also reducing the noise during operation.
7. The vehicle is equipped with 17 safety protection devices to ensure the safety of operators: contact buzzer, emergency stop device, anti roll in, abnormal overflow valve, filler lifting special oil cylinder, interlock switch, safety rod, filler lifting alarm device, etc.
8. Optional 240L, 660L, 1100L standard bucket lifting and flipping mechanism, as well as floor standing tipping mechanism.
