Product information
performance characteristics
1. Large processing capacity and low production cost
2, multiple effects of high cleanliness
3. Simple structure and low failure rate
4. Good structural layout and effective sealing design enable the machine to be long-term without maintenance and durable; it consumes low water, has low working noise, and meets national environmental protection standards.
Processing materials: river gravel, granite, basalt, quartz stone, iron ore, diabase, limestone, coal gangue, etc.

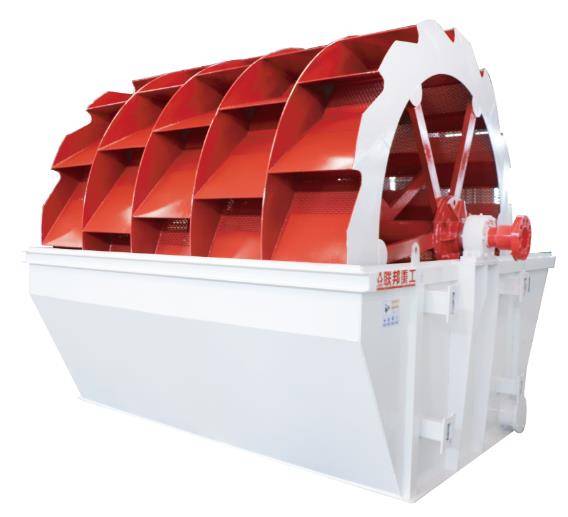

XS series sand washing machines, commonly known as bucket wheel sand washing machines, are high-efficiency sand washing equipment developed and produced by Federal Heavy Industries using advanced domestic and foreign technologies and combined with the actual situation of the domestic sand and gravel industry.
working principle
When the sand washer is working, the motor drives the impeller to rotate slowly after deceleration through a triangular belt, a reducer, and a gear. The sand and gravel enter the washing tank with a feed trough, roll under the drive of the impeller, and grind each other to remove impurities covering the surface of the sand and gravel. At the same time, the water vapor layer covering the sand is destroyed to facilitate dehydration; at the same time, water is added to form a strong water flow, which timely removes impurities and foreign matters with small specific gravity and discharges them from the overflow outlet washing tank to complete the cleaning effect. Clean sand and gravel are taken away by the blades, and then poured into the discharge chute from the rotating impeller to complete the cleaning of the sand and gravel.
