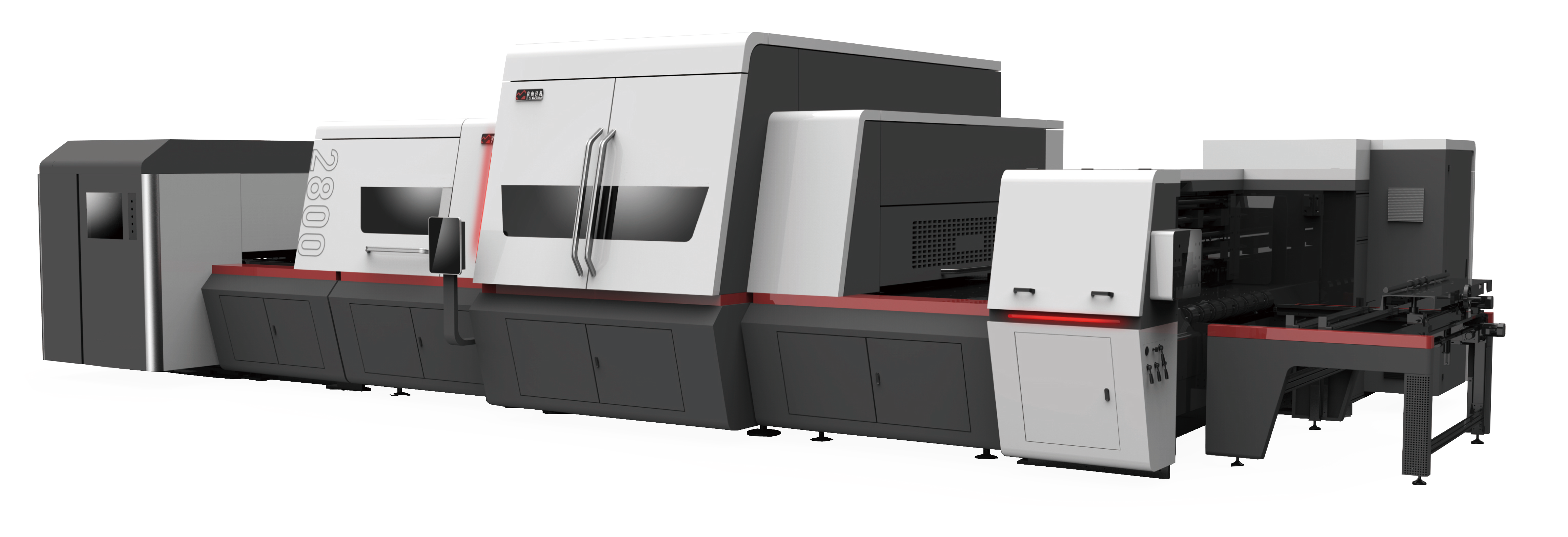

JD-Slim 2800 DIGITAL PRINTING LINE

JD-Slim2800 can handle various corrugated sheets with a thickness of 1.5-12mm，and with max. feeding width of 2800mm and max. printing width of 2200mm. It runs at 100-150m/min and offers optional digital slotter, rotary die-cutter, and folder gluer for high-speed, stable production of brown and white cartons. Equipped with Fujifilm print-head, it ensures competitive industry-standard warranties with a lifespan of 3-7 years and can be easily disassembled for maintenance.

Technical Parameters and Main Features

Max. Printing Width ：2200mm

Sheet Caliper：1.5~12mm

Print-head：Fujifilm（SG600)

Production Efficiency ：150m/min at 400DPI  ； 100m/min at 600DPI

Feeding Size：Min: 700x400mm   Max: 2800 x 1600mm

Environment Requirements：Temperature15℃~27℃，RH45%-65%

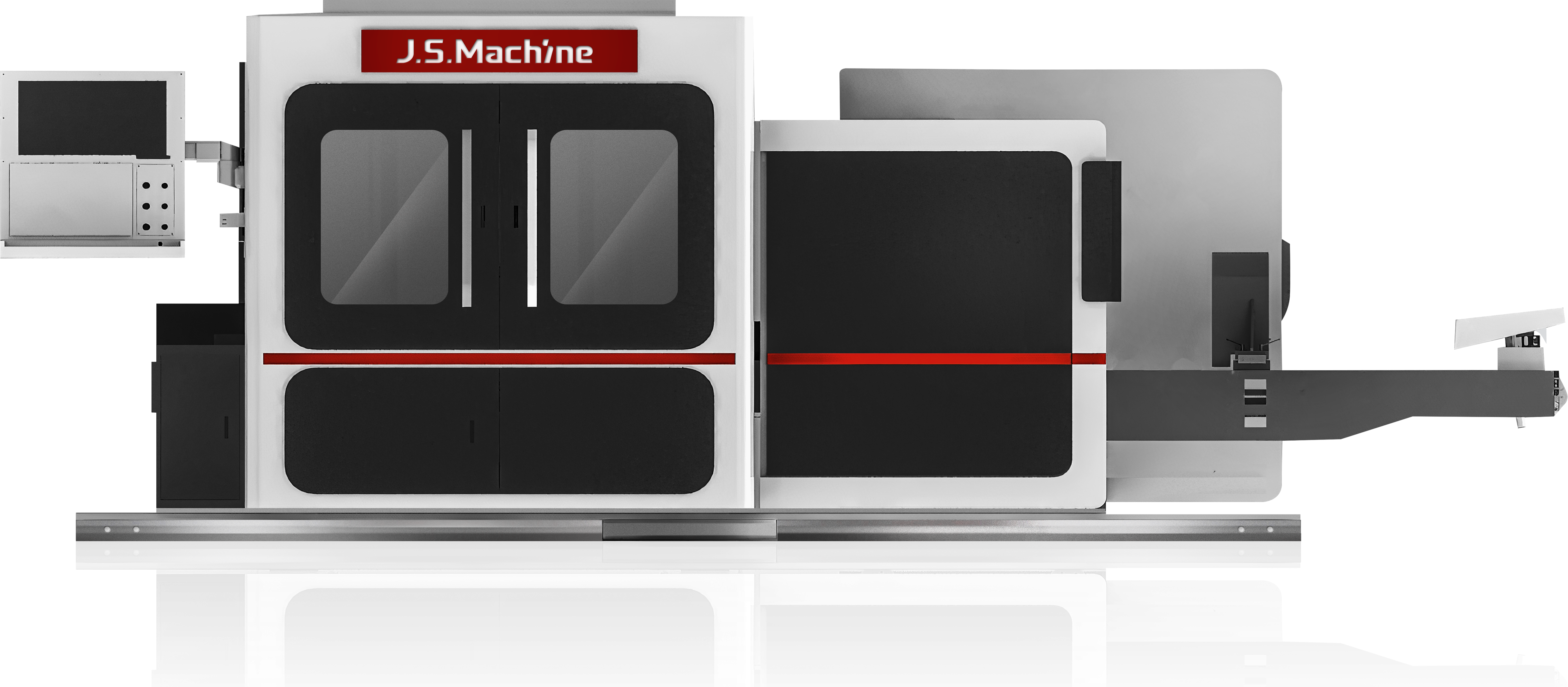

JD-Xquis 2500 DIGITAL PRINTING LINE

JD-Xquis2500 can handle various corrugated sheets with a thickness of 1.5-12mm, and with max. feeding width of 2500mm and max.  printing width of 2200mm. It runs at 70-120m/min and offers optional digital slotter, rotary die-cutter, and folder gluer for high-speed, stable production of brown and white cartons. Equipped with Fujifilm print-head, it ensures competitive industry-standard warranties with a lifespan of 3-7 years and can be easily disassembled for maintenance.

Technical Parameters and Main Features

Max. Printing Width：2200mm

Sheet Caliper：1.5~12mm

Print-head：Fujifilm（SG300)

Production Efficiency：70m/min at 300*900DPI  ；120m/min  at 300*600DPI

Feeding Size：Min: 700x400mm   Max: 2500 x 1600mm

Environment Requirements：Temperature15℃~27℃，RH45%-65%

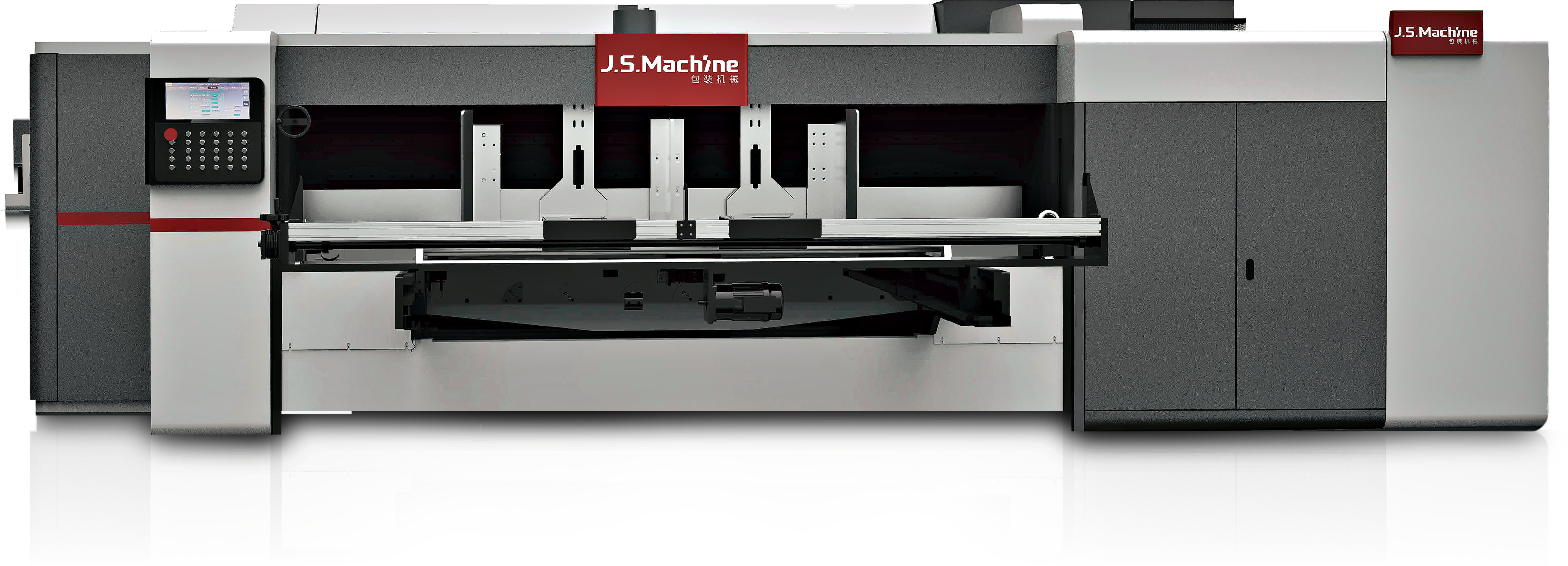

JD-Xquis 1600 DIGITAL PRINTING LINE

 JD-Xquis1600 can handle various corrugated sheets with a thickness of 1.5-12mm, and with max. feeding width of 1600mm and max.  printing width of 1200mm. It runs at 70-120m/min and offers optional digital slotter, rotary die-cutter, and folder gluer for high-speed, stable production of brown and white cartons. Equipped with Fujifilm print-head, it ensures competitive industry-standard warranties with a lifespan of 3-7 years and can be easily disassembled for maintenance.

Technical parameters and performance characteristics

Max. Printing Width：1200mm

Sheet Caliper：1.5~12mm

Print-head：Fujifilm（SG300)

Production Efficiency：70m/min at 300*900DPI  ；120m/min at 300*600DPI

Feeding Size：Min: 700x400mm   Max:1600 x 2800mm

Environment Requirements：Temperature15℃~27℃，RH45%-65%

J.S. Corrugating Machinery Co., Ltd, listed in 1998 (abbreviated as J.S. Machine, stock code: 000821), is an international intelligent equipment manufacturing company that integrates R&D, production, sales, and services. The business includes packaging automation, photovoltaic module automation, 3C automation, and other related industries. The company provides high-quality products and services to more than 60 countries and regions worldwide.
