Liquid Loss-in-weight Feeder
iconicon
Post RequirementsPost Requirements
Transcell Technology
Transcell Technology icon
View more
Post RequirementsPost Requirements
Transcell Technology
Transcell Technology icon
China
Main Products:
Loss-in-weight Feeder
icon

Product information

Technical Introduction/Application Scope

TG-LW-LFXX(WZN)Liquid Loss-in-Weight Feeder,applies to continuous feeding and metering of pure water,fire retardant agents, lubricants,antioxidant,antistatic agent and liquid materials of low viscosity and high viscosity can be heat insulation. Suitable for continuous measurement of production process,such as plastic extrusion,chemical fiber production process.

Design Parameters

ModelFlow RangeHopper Volume(Optional)Sensor RangeThe Power Supply
TG-LW-LF05(W/N)1-30L5L30KG/60KGAC380V
TG-LW-LF20(W/N)10-150L20L60KG/100KGAC380V
TG-LW-LF50(W/N)50-300L50L150KGAC380V
TG-LW-LF100(W/N)100-500L100L250KGAC380V

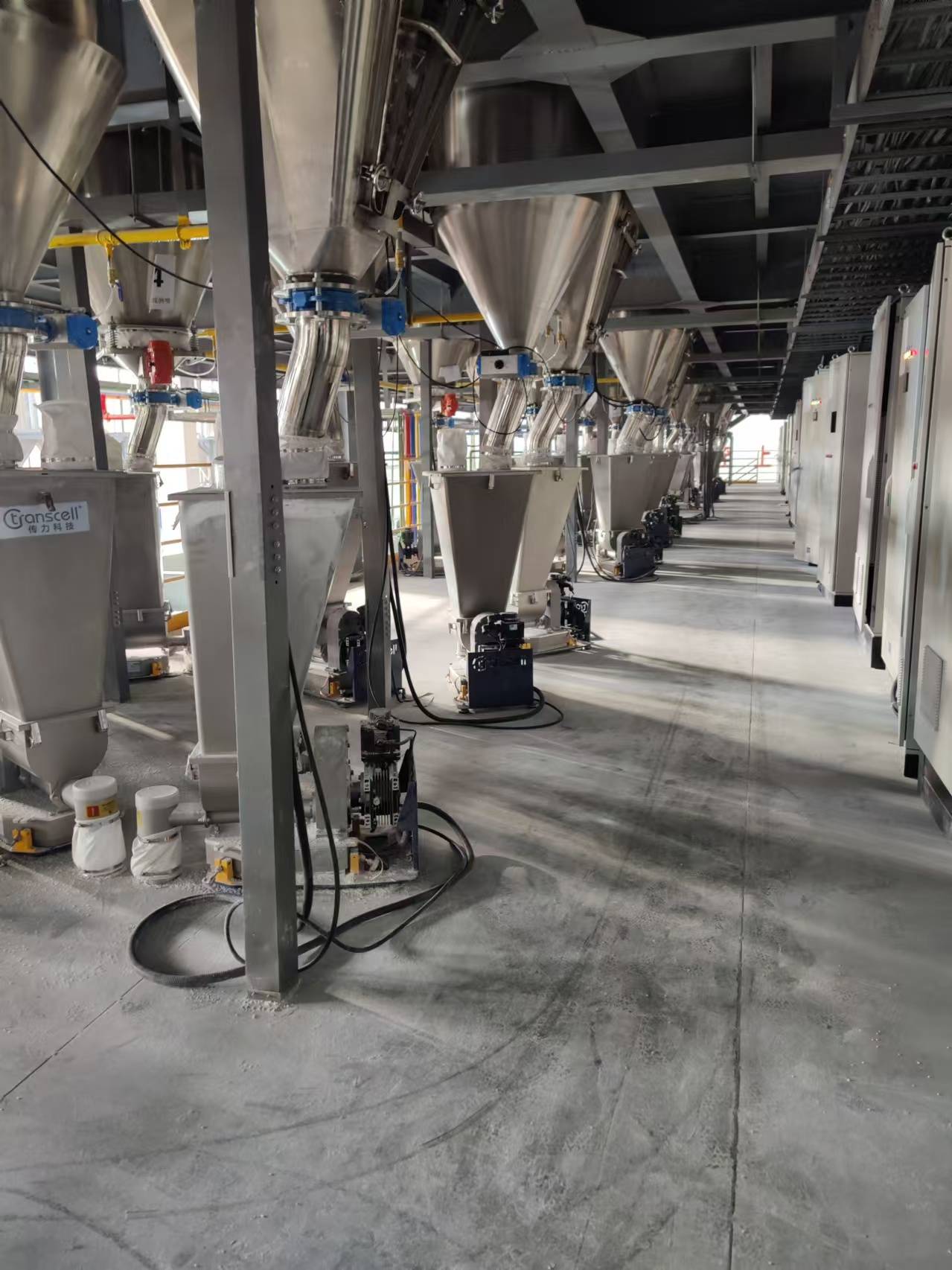

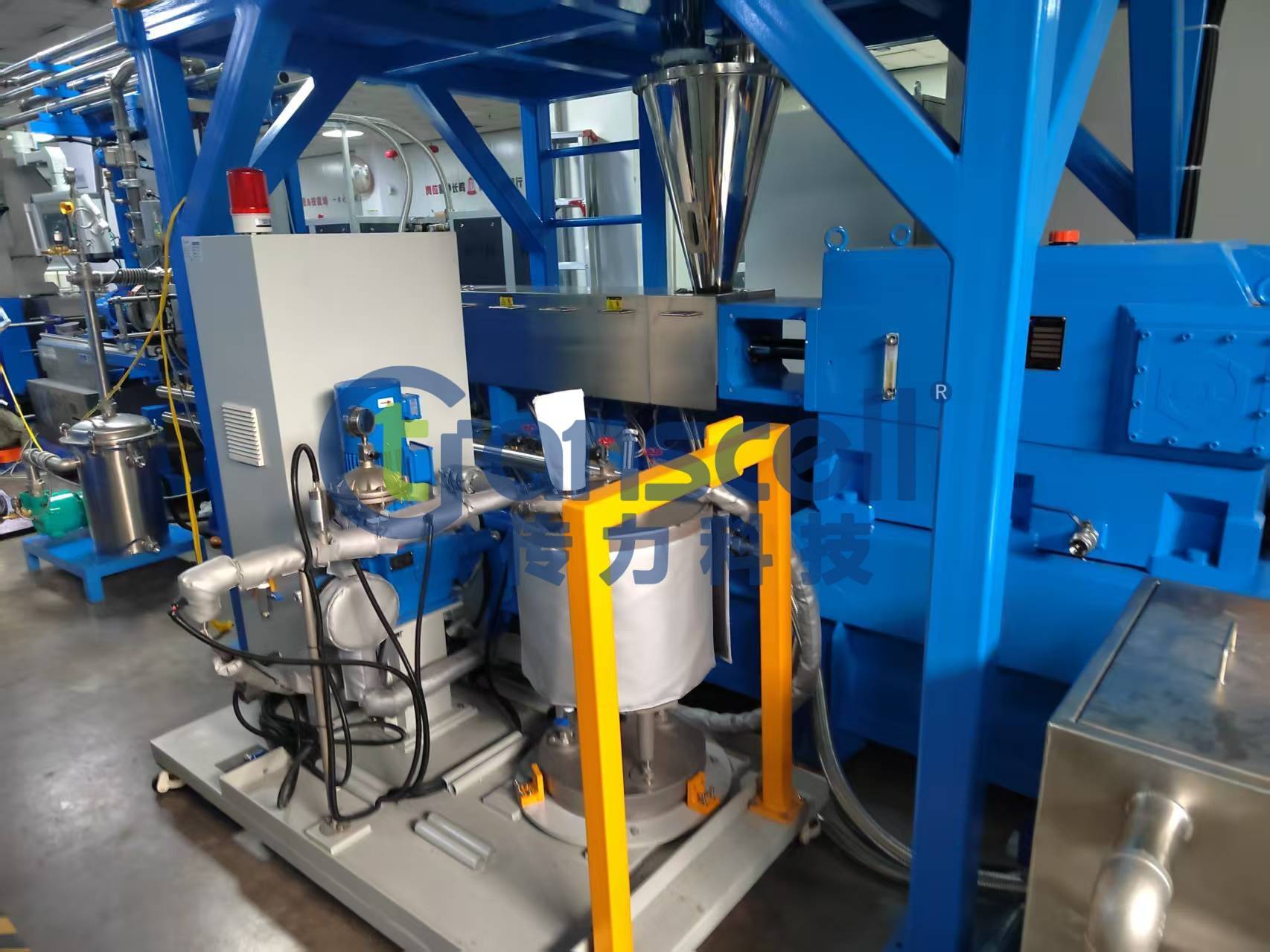

Collaboration Cases

Product information

Technical Introduction/Application Scope

TG-LW-LFXX(WZN)Liquid Loss-in-Weight Feeder,applies to continuous feeding and metering of pure water,fire retardant agents, lubricants,antioxidant,antistatic agent and liquid materials of low viscosity and high viscosity can be heat insulation. Suitable for continuous measurement of production process,such as plastic extrusion,chemical fiber production process.

Design Parameters

ModelFlow RangeHopper Volume(Optional)Sensor RangeThe Power Supply
TG-LW-LF05(W/N)1-30L5L30KG/60KGAC380V
TG-LW-LF20(W/N)10-150L20L60KG/100KGAC380V
TG-LW-LF50(W/N)50-300L50L150KGAC380V
TG-LW-LF100(W/N)100-500L100L250KGAC380V

Collaboration Cases
