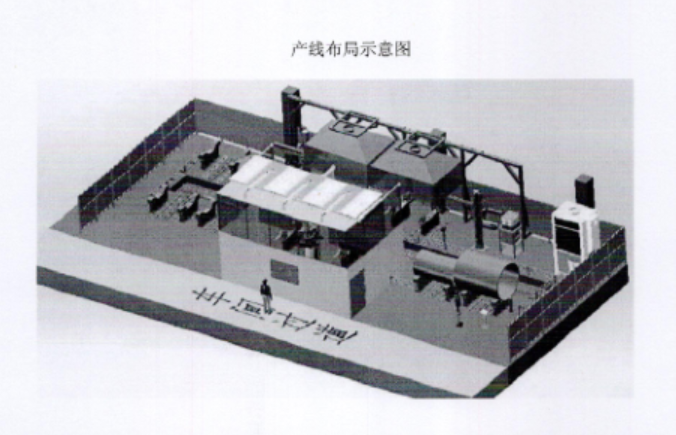

This production line primarily consists of two sets of robotic automatic longitudinal seam welding systems, one automatic grinding system, a complete RGV automated conveying system, and an integrated line control system.
The robotic longitudinal seam welding system includes a welding robot, a welding machine system, a positioner, a laser line automatic positioning, scanning, and tracking system, as well as a welding fume extraction device.
The automatic grinding system comprises a grinding robot, a laser automatic height positioning and recognition system, a force control sensor, a grinding head, an abrasive collection system, a soundproof grinding enclosure, and related accessories. It is designed for both grinding workpiece reinforcement and correcting roundness after sizing (two workstations).
The line features two loading stations, one buffer station (for intermediate storage between welding and grinding processes), and two unloading stations (one of which can also serve as a secondary grinding loading station). Each station utilizes RGV automated workpiece transport and positioner automatic positioning to locate welding and grinding positions, with no manual intervention required throughout the process.

Operating Environment:
Three-phase AC power supply: 380V (±10%), 50Hz
Single-phase AC power supply: 220V (±10%), 50Hz
Ambient temperature: -20℃ to 45℃
Humidity: 50% to 90%
Compressed air: 0.5MPa to 0.7MPa
Welding Conditions:
Welding method: Argon-rich gas-shielded arc welding (80% Ar + 20% CO₂)
Welding position: Flat (groove) position welding
Welding wire: 1.6mm solid wire
Wire stick-out length: 22mm
Welding oscillation amplitude: 0–30mm
Applicable Workpieces:
Workpiece name: Road roller steel wheel outer shell
Workpiece specifications: Maximum weight 5000kg
Weld type: Double-sided V-groove, compliant with national standards for gas-shielded welding grooves
Process Flow:
1.Manual hoisting of workpiece onto positioning frame
2.RGV transports to welding station and automatically adjusts weld seam to internal flat position
3.Line laser scans inner groove to be welded
4.Robot performs root welding
5.Robot automatically welds inner longitudinal seam
6.Positioner rotates to external weld flat position
7.Repeats internal welding steps
8.RGV transports to reinforcement grinding station (or buffer station)
9.Grinding robot detects weld reinforcement via line laser
10.Automatic grinding performed
11.Transported to unloading frame
12.Manually hoisted to repair/grinding area for touch-up and grinding of weld start/stop points
13.Manually hoisted for roundness correction
14.After correction, hoisted to secondary grinding loading station
15.RGV automatically transports to secondary grinding station for roundness grinding
16.RGV automatically unloads workpiece

After-Sales Service Terms:
The machine comes with a 1-year warranty (excluding wear-and-tear parts), and lifetime technical support is provided. During the warranty period, the buyer must perform regular inspections and maintenance as outlined in the user manual or the seller's self-check requirements. If any issues arise (excluding wear-and-tear parts or programming-related problems), the seller will respond within 2 hours. However, the warranty does not cover problems caused by tooling or workpieces. If on-site debugging or after-sales assistance is required, the seller may charge a fee, and the buyer shall cover all travel and accommodation expenses.

Jiangsu Dade Heavy Industry Co., Ltd. (abbreviated as Dade Heavy Industry) is a high-tech enterprise integrating research and development, manufacturing, sales, and service, with independently owned intellectual property rights. The company has a registered capital of 13 million RMB and total assets of approximately 150 million RMB. With nearly 400 employees, the company is located in Sunshine Industrial Park, Xishan District, Wuxi City, Jiangsu Province, covering an area of 100,000 square meters.

Dade Heavy Industry's main business includes digital robot workstations, industrial welding robots, robot application systems, various digital inverter welding machines, 3D flame/plasma/laser cutting machines, automatic welding equipment, and arc welding robots. The company takes technology as the guide, independent products as the core, and leverages its talent advantages to accumulate a large number of core technologies and products in the fields of robotics, lasers, etc. It has obtained more than 20 provincial and municipal science and technology projects, obtained more than 30 projects, and provided customers with nearly 10000 sets of products in 50 series, 200 specifications, and nearly six categories. The products are sold to 30 provinces, autonomous regions, and municipalities directly under the central government nationwide, and exported to Southeast Asia, the Middle East, Japan, Europe, America, and other regions. Widely used in various fields such as petrochemicals, electricity, metallurgy, shipbuilding, locomotives, automobiles, construction, engineering machinery, etc.
Since its establishment, Dade Heavy Industry has adhered to the corporate philosophy of "technological innovation products, service weaving the future, integrity forging the brand", and has subtly conveyed the company's values and business philosophy to employees, thereby shaping a highly cohesive and loyal workforce. Nowadays, the company has a large number of skilled technical talents and experienced management talents, laying a solid foundation for the enterprise to step onto the international competitive stage. Dade people will continue to deeply cultivate in the field of high-end intelligent equipment, promote the standardization and modular development of robots, expand market applications, adhere to technological innovation, uphold the spirit of craftsmanship, and pursue higher quality in the industry.

Jiangsu Dade Heavy Industry Co., Ltd. is a high-tech enterprise with a history of nearly 30 years, specializing in the research and development and manufacturing of new-generation automated welding equipment systems, as well as providing welding and cutting technology consultation and services. Its main products include digital robot workstations, industrial welding robots, and robot application systems, etc.

For a long time, the company has developed a large number of advanced, stable, efficient and practical digital robot workstations and automated welding machines based on the introduction of advanced domestic and foreign welding technologies and processes, combined with its own technical characteristics. The products are widely used in the fields of automobiles, motorcycles, ships, construction machinery, boilers, etc. The company has a large number of intermediate and senior welding and mechanical and electrical engineering technicians, as well as a high-quality and highly cohesive technical service team, and has rich experience in mechanical design, electrical design, tooling fixtures, integrated automated equipment and control, etc. In recent years, in response to the vigorous development of the domestic robot industry, the company, with the technology department as the center, has established six departments: the mechanical business development department, the electrical integration department, the automation equipment department, the welding process department, the robot industry research department, and the laboratory training center, dedicated to the research and development of robot system workstations and automated flexible production equipment. Moreover, it has cooperated with Nanjing University of Science and Technology to establish a highly professional technical, sales and service team.

Facing the vigorous development of advanced manufacturing technologies in the 21st century, new opportunities and challenges have emerged for the development of welding and cutting technologies in terms of informatization, integration, systematization, and flexibility. Our company has a deep cooperation with Kawasaki of Japan and has become the S-level general agent of Kawasaki robots in mainland China. We have also developed arc welding, laser welding, gluing, handling, cutting and other robot application engineering automation equipment suitable for China's processing industry, providing customers with complete technical solutions and turnkey projects. Our products are now widely used in the automotive manufacturing, motorcycle, electric vehicle, bicycle, home appliance, sports equipment, aerospace, shipbuilding, boiler and pressure vessel, hardware and home appliance and other industries. Adhering to the corporate values and business philosophy of "a skilled metal tailor", our company is striving to become a leading enterprise in the welding and cutting technology center of the Yangtze River Delta
