Everyone knows that some nitrogen oxides can cause harm to the human body. Therefore, low nitrogen is what everyone pursues. After continuous research, Yongxing Special Equipment has developed a WNS ultra-low nitrogen gas boiler with nitrogen and oxygen emissions of less than 30mg/m3. This boiler can not only meet the requirements of national environmental protection policies, but also has a thermal efficiency of more than 100%, which can greatly reduce the investment in fuel costs.

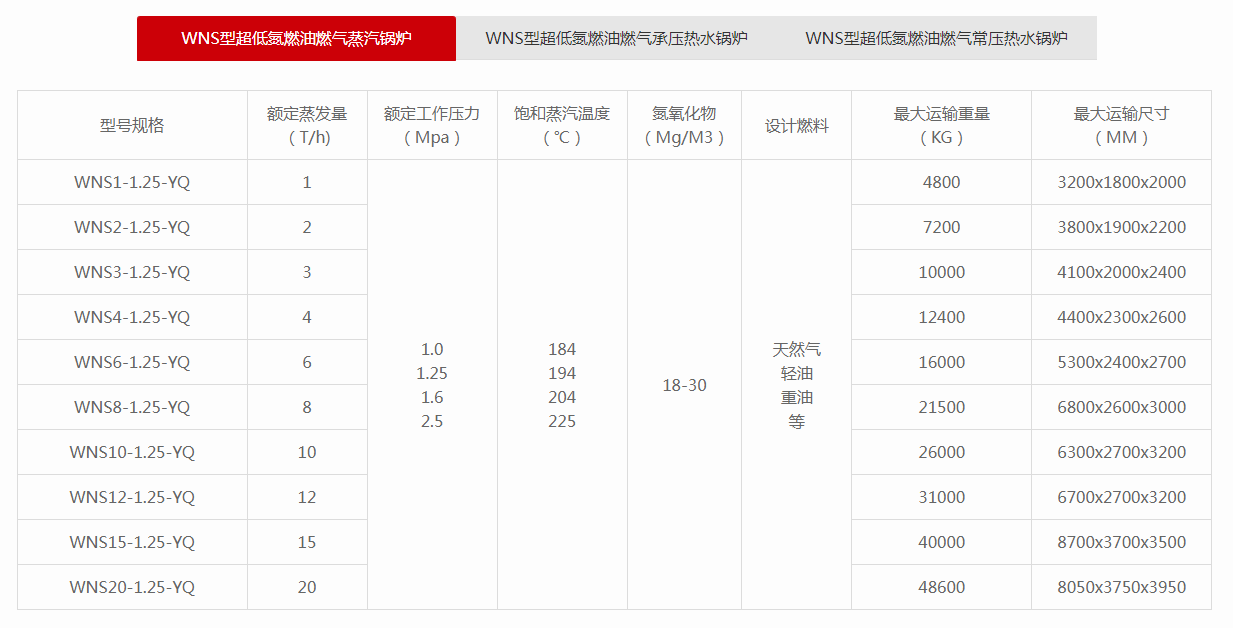

Capacity: 1- 20T/0.7- 14MW
Fuel: natural gas, coke oven gas, city gas, heavy oil, palm oil, blast furnace gas
Application fields: hotels, medicine, clothing and textile industries, food factories, heating, etc.
product introduction
Yongxing's WNS ultra-low nitrogen fuel-fired gas boiler is a shell type three-pass wet-back fuel-fired gas boiler produced using advanced technology. It consists of a boiler body, connected flue, deoxygenator, burner, steam water system, instrument, energy saver, condenser, etc. Compared with old boilers, its * prominent feature is low nitrogen (during the operation of the boiler, nitrogen oxide emissions are greatly reduced, reaching below 30mg/m3, which meets national policy requirements). In addition, this boiler has the characteristics of compact structure, beautiful appearance, simple operation, safe and reliable operation, and has now been widely used in all walks of life.
The WNS ultra-low nitrogen gas boiler adopts a fully wet back structure, and the high-temperature flue gas is surrounded by water, which solves the cooling and sealing problems of the smoke return room and improves the operating environment of the boiler. The addition of a condenser (made of finned tubes) has increased the efficiency of the boiler to more than 98%, saving operating costs. At the same time, the boiler is equipped with a leakage protection function. Once the control system detects leakage from the electric heating element, the boiler will automatically cut off the power supply to ensure the safety of workers and the boiler and improve the service life of the boiler.
performance characteristics
The protection function is complete, with water shortage protection and pressure relief protection to ensure safe and efficient operation of the boiler.
The outer packaging is made of stainless steel, which greatly increases the corrosion resistance.
The front and rear smoke box covers of the boiler are movable, which greatly reduces the difficulty of maintenance and improves maintenance efficiency.
The rear view device is designed to facilitate workers to observe the combustion conditions.
The condenser is made of special steel that is "resistant to low dew point corrosion of sulfuric acid", which improves the service life of the boiler.
The internal smoke pipe adopts a threaded structure, which improves heat transfer efficiency and enhances heat transfer effect.
The heating surfaces are well arranged, ensuring water circulation and heat circulation, greatly improving the heat transfer effect, and achieving the best state.
The control system controls the start and stop of the circulation pump according to the boiler water temperature. When the boiler water temperature reaches the set upper limit, the hot water circulation pump is started. When the water temperature is lower than the set lower limit, the hot water circulation pump is stopped.
A condenser is added at the tail of the boiler, which uses the waste heat discharged at the tail of the boiler to increase the inlet water temperature of the boiler and reduce the exhaust gas temperature, so that the thermal efficiency of the boiler reaches more than 100%, saving operating costs.
Combustion, water level, temperature and steam pressure can all be automatically adjusted and controlled, which not only facilitates workers 'operation, but also improves safety.
system diagram
