Introduction to the German DBK brand
The general manager of DBK in Germany has more than 50 years of rich experience in designing and manufacturing PTFE film rotary cutters. DBK precision rotary cutters have been reliably used in Europe, America and China.
DBK is available in four standard models: SM1600/800, SM300/1000, SM400/450, and SM350/100.

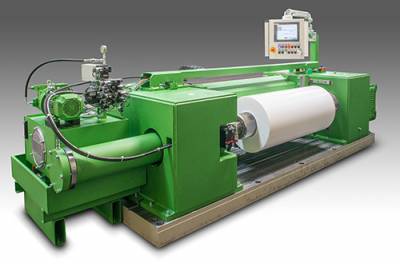

The largest model SM1600/800 is designed for rotary cutting with a maximum diameter of 800mm and a maximum width of 1600 mm.
Maximum cutting width: 1600 mm
Max. diameter of rotary cutting: 800 mm
Maximum rotary cutting speed: 25 m/min
Rotary cutting thickness: 0.02~6.35 mm
Best working condition thickness: 0.01mm
Thickness accuracy:0.02~0.5mm/±5%
Minimum feed: 0.001mm
The technical data of our machines can be customized according to user requirements.
The DBK precision rotary cutter is equipped with Germany's Gockel precision knife sharpener and Jotten's high-end tungsten steel rotary cutter, providing you with Germany's top one-stop rotary cutter technology solution for PTFE film/turning plates!
DBK precision rotary cutter can turn the thinnest film of 0.01mm under optimal working conditions;
The straightness of the rotary cutter ground by the Gockel precision sharpening machine is ≤ 0.005 mm/m, which can effectively control the minimum thickness tolerance of the film/turning plate;
Jotten's high-end tungsten steel rotary cutter has no notch when amplified by 300 times in the secondary dimension, making the surface of the film/turning plate completely free of knife marks, reducing the frequency of tool changes and sharpening.
The three products of our one-stop solution, precision rotary cutter, precision knife sharpening machine and high-end tungsten steel rotary cutter, can be sold separately and independently.
The value of DBK makes every fluoroplastic person want to buy it!
DBK has complete one-stop after-sales service in China!
DBK has won good reviews from all fluorine plastics industry customers in China!
Most leading domestic fluoroplastics processing companies cooperate with us. If you need to understand customer application cases, you can provide them separately upon request.
